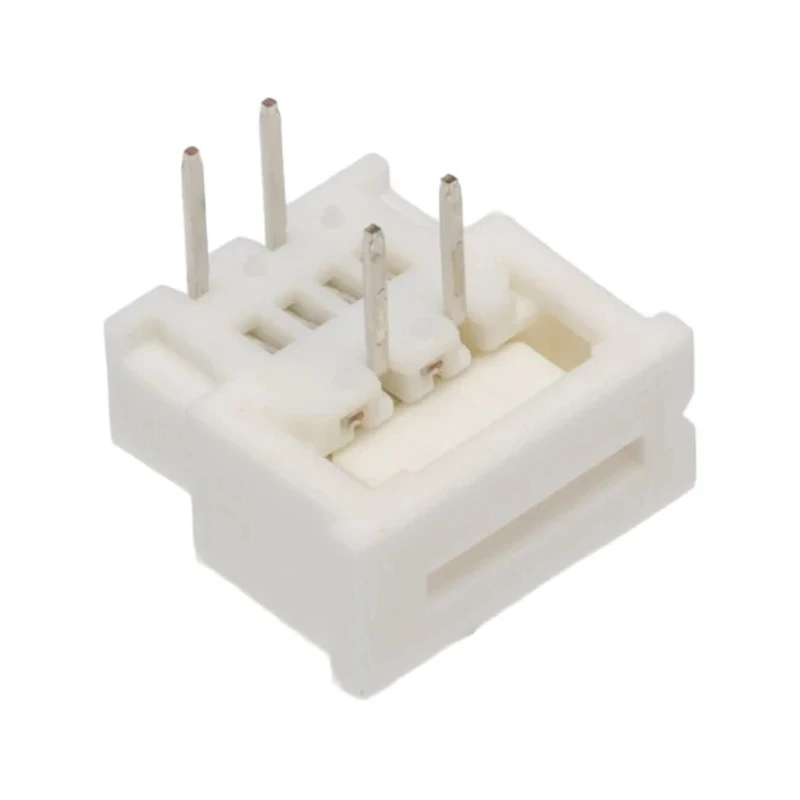

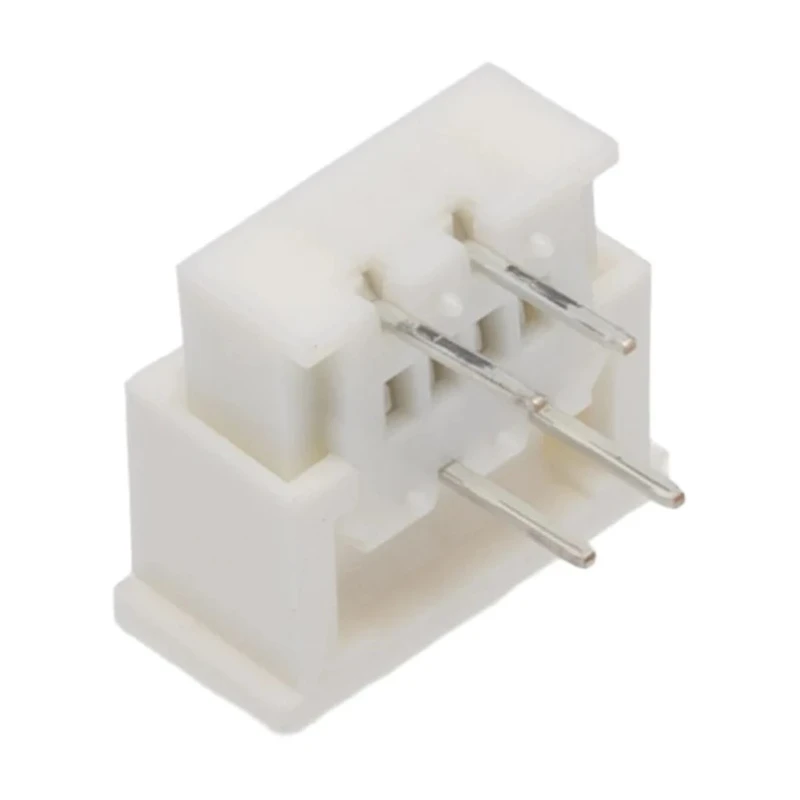

Molex 1.25 mm Pitch 4 Way Right Angle Female FPC Connector, Solder 39-53-2044
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Top |
| TE Connectivity 1.25mm Pitch 4 Way Right Angle Female FPC ConnectorBrand | TE Connectivity |
Key Features
- The 5597 series features a space-saving design suitable for tight packaging applications.
- Zero Insertion Force (ZIF) mechanism minimizes wear and facilitates repeat cycling.
- Slide type actuator provides easy insertion and secure connection of FPC cables.
- Constructed with phosphor bronze contacts plated with tin bismuth over nickel for reliable conductivity.
- Rated for 1 ampere current and 200 volts operating voltage with a temperature range from -20°C to 80°C.
- Housing made of durable polybutylene terephthalate material.
- Right angle orientation with top female contacts and through hole mount type.
- Locking mechanism ensures stable electrical connections during operation.
Product Description
Molex 39-53-2044 1.25 mm Pitch 4 Way Right Angle Female FPC Connector offers a high-reliability, space-efficient solution for PCB connections in electronic devices.
This connector belongs to the 5597 series ZIF (Zero Insertion Force) PCB through-hole mount family, designed to minimize contact wear and extend connector life through repeat mating cycles.
With a pitch of 1.25 mm and a compact 4-contact configuration, it is ideal for applications requiring precise, durable connections within confined spaces. Constructed with phosphor bronze contacts plated with tin bismuth over nickel, it ensures excellent conductivity and resistance to corrosion.
The connector features a slide type actuator for easy and secure FPC cable insertion, along with a locking mechanism that provides stable electrical contact.
Operating voltage is rated at 200V, with current capacity of 1A, suitable for electronic automotive and industrial applications requiring robust connectivity under varied temperature conditions from -20°C to 80°C.
The housing is made of polybutylene terephthalate, delivering mechanical stability and heat resistance, while the right-angle orientation and through-hole mount method facilitate flexible PCB design.
This connector is widely used in industrial, automotive electronics, and manufacturing settings where secure and reliable FPC connections are critical. The 5597 series provides a space-saving design for tight packaging applications.
ZIF functionality enables repeat cycling with minimal wear. Slide type actuator eases insertion and secures FPC connection. Phosphor bronze contacts plated with tin bismuth over nickel ensure conductivity and durability.
Right angle female contact position allows versatile PCB layout. Rated for 1A current and 200V operation within a broad temperature range. Locking mechanism guarantees stable connections. Polybutylene terephthalate housing provides robust mechanical and thermal properties.
Explore more Molex connectors and related electronic components on EnvMart for your industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for an operating voltage of 200 volts.
It has a current capacity of 1 ampere.
The operating temperature range is from -20°C to 80°C.
This connector uses a through-hole mounting type.
The housing is made of polybutylene terephthalate, and the contacts are phosphor bronze plated with tin bismuth over nickel.
It features 4 contacts in its configuration.
The pitch size is 1.25 mm.
This model has a right angle orientation with top female contacts.
It employs a Zero Insertion Force (ZIF) mechanism for easy insertion and minimal wear.
It is suitable for electronic automotive and industrial applications requiring robust connectivity.
Yes, it features a locking mechanism that ensures stable electrical connections during operation.
This connector belongs to the 5597 series of ZIF connectors.
