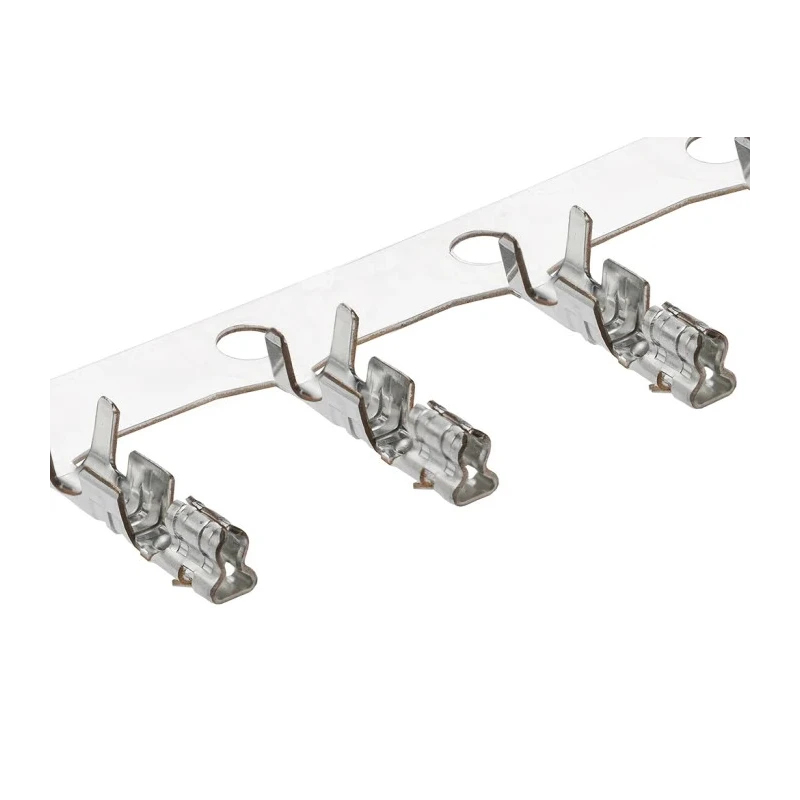

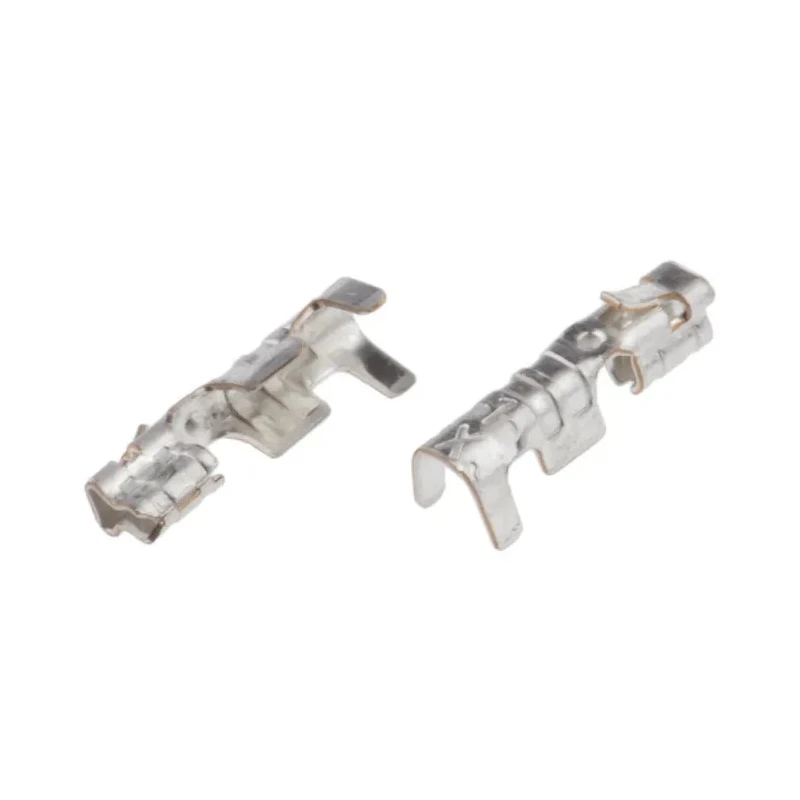

Molex 5263 Series Female Crimp Terminal, 28 AWG Min, 22 AWG Max, Phosphor Bronze Contact, Tin Plating, 3A 08-70-1040
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5263 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SPOX Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Constructed with phosphor bronze contact material for high conductivity.
- Tin plating ensures enhanced signal transfer and corrosion resistance.
- Spring box style design enables multiple points of contact to protect the mating interface.
- Compatible with SPOX connector housing for versatile applications.
- Provides crimp termination to prevent wire fish-hooking and secure connections.
- Suitable for communication, networking, and industrial control processes.
- Designed for high electrical reliability and durability under varied environmental conditions.
- Manufactured in Japan following rigorous standards with no specific approvals listed.
Product Description
Molex 08-70-1040 Female Crimp Terminal is a precision-engineered electronic component designed for reliable electrical connections in industrial, communication, and networking applications. Featuring phosphor bronze contacts with tin plating, it ensures excellent electrical conductivity and resistance to corrosion, facilitating effective signal transfer between contacts and PCB assemblies.
This Crimp Terminal supports wire sizes ranging from 28 to 22 AWG and is compatible with SPOX connector housings. Its innovative spring box design provides multiple points of contact, protecting the mating interface and preventing fish-hooking of wires during handling, guaranteeing stable and enduring connectivity.
The terminal operates reliably within a temperature range of -40°C to 105°C and is rated for a maximum current of 3A, making it suitable for varied industrial control processes and communication system needs. The crimp termination type offers a secure and robust connection ideal for demanding environments.
Manufactured in Japan, this terminal is a premium solution for users requiring high-performance connectors with dependable mechanical and electrical properties. While no specific standards or approvals are declared, Molex ensures quality and durability aligned with industry expectations.
Constructed with phosphor bronze for enhanced conductivity. Tin-plated contacts reduce oxidation and improve signal integrity. Spring box style design enables multiple contact points for reliability. Compatible with SPOX connector housing for broad applicability.
Crimp termination prevents wire damage and provides strong mechanical hold. Operates from -40°C to 105°C for industrial and electronic applications. Rated for 3A continuous current ensuring stable electrical flow. Ideal for communication, networking, and industrial control processes.
This product enriches any electronic assembly requiring precision and durability in wire-to-board connections. Explore a variety of Molex connectors and components at EnvMart for your electronic component sourcing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a maximum current of 3A, ensuring stable electrical flow in various applications.
It supports wire sizes ranging from 28 AWG minimum to 22 AWG maximum, making it suitable for different wiring needs.
The terminal operates reliably within a temperature range of -40°C to 105°C, suitable for diverse environmental conditions.
The contacts are made of phosphor bronze, which enhances electrical conductivity and durability.
The contacts feature tin plating, which reduces oxidation and improves signal integrity during operation.
It utilizes a crimp termination type, which provides a secure and robust connection to prevent wire damage.
Yes, it is compatible with SPOX connector housings, allowing for versatile applications in electronic assemblies.
The maximum contact resistance is 20mΩ, which contributes to effective signal transfer between connections.
This terminal is manufactured in Japan, adhering to rigorous quality standards.
It is suitable for communication, networking, and industrial control processes, making it versatile for various electronic needs.
The innovative spring box style design provides multiple points of contact, protecting the mating interface and preventing fish-hooking of wires.
This crimp terminal belongs to the Molex 5263 series, known for its reliable electrical connections.
