| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 2.5A |
| Gender | Female |
| Contact Material | Brass |
| Series | 4809 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| For Use With | KK 254 and KK Connector Housings |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
| Molex 4809 Series Female Crimp Terminal, 30 AWG Min Crimp, 22 AWG MaxBrand | Molex |

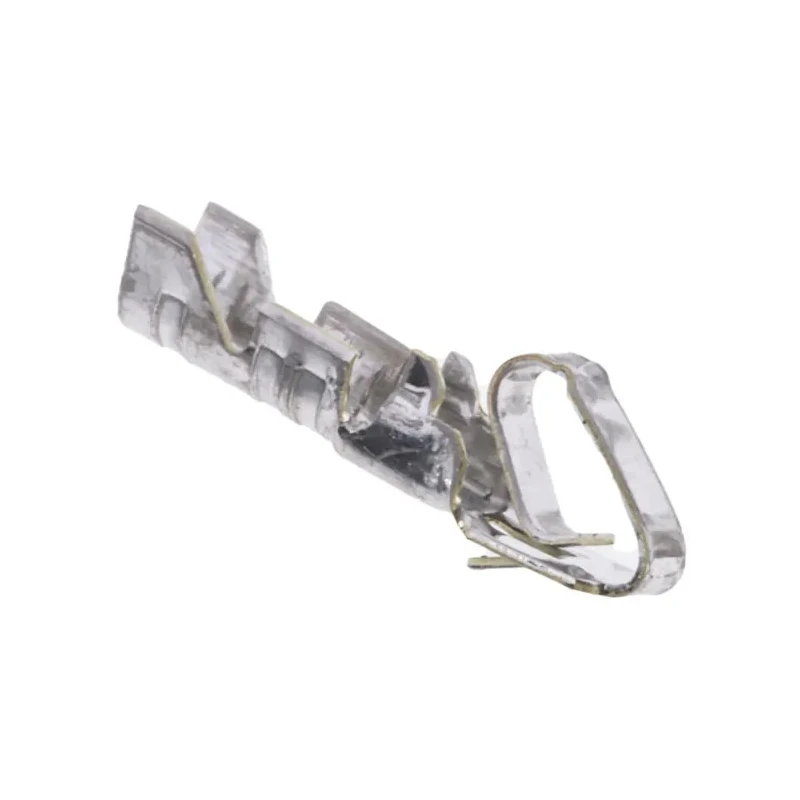

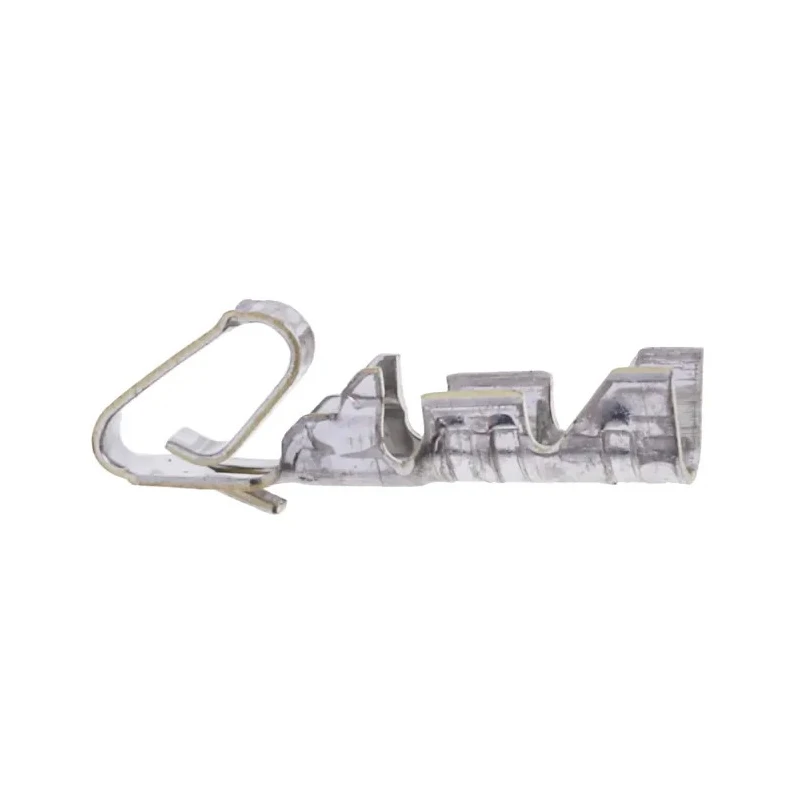

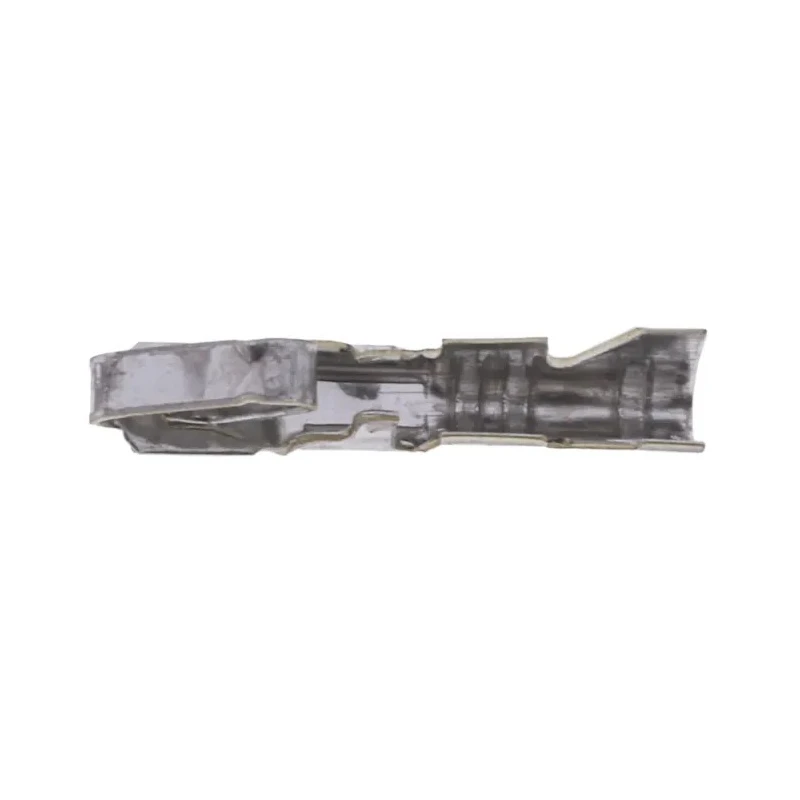

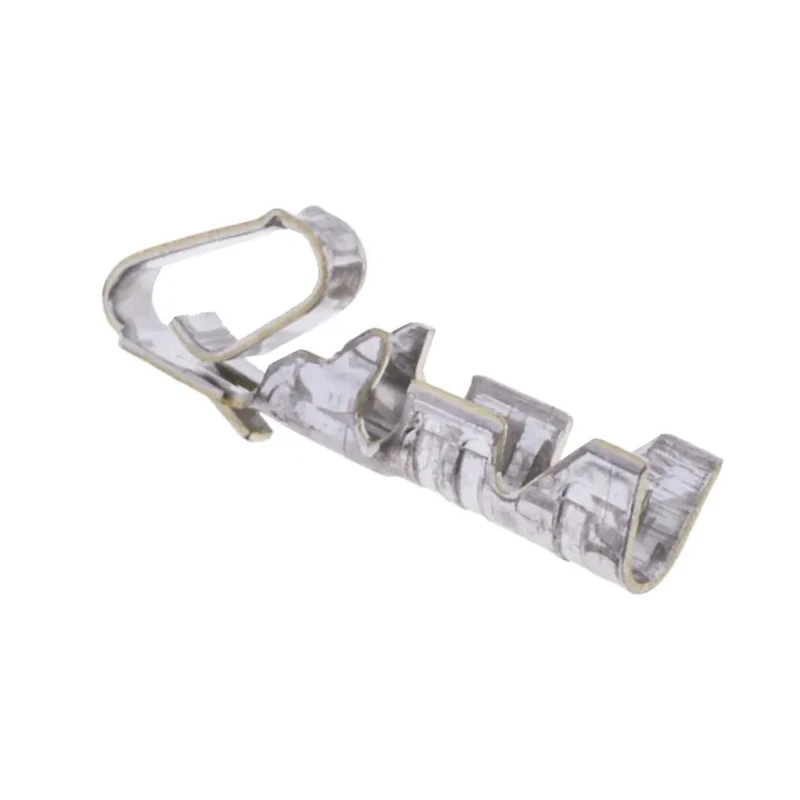

Molex 08-50-0032 Female Crimp Terminal, part of the 4809 Series, is engineered for reliable electrical connections in industrial and commercial PCB applications. This female Crimp Terminal supports wire sizes from 30 AWG (minimum) to 22 AWG (maximum) and carries a current rating of 2.5 amperes. It is constructed with a brass base material and features a tin plating to ensure excellent conductivity and resistance to corrosion.
The crimp design provides a secure, air-tight connection resistant to moisture, dirt, and other environmental contaminants, making it ideal for industrial, automotive, and consumer electronics applications. The terminal is compatible with Molex KK 254 and KK Connector Housings, facilitating both wire-to-board and board-to-board connections within printed circuit board systems.
This terminal is well-suited for use in automotive lighting, home security systems, gaming devices, and similar environments requiring high reliability and consistent electrical performance over a wide operating temperature range of -40°C to 80°C. The maximum contact resistance of 20 milliohms ensures minimal voltage drop and superior signal integrity.
To ensure proper installation, hand crimp tools such as the Molex PremiumGrade hand crimp tool are recommended. Additional tools like insertion and extraction tools streamline the connection and maintenance process without compromising the terminal's performance.
Constructed from brass with tin plating for excellent conductivity. Supports wire size range of 30 to 22 AWG. Current rating of 2.5A suitable for multiple industrial applications. Crimp termination for reliable, corrosion-resistant electrical connections.
Compatible with Molex KK connector housings for versatile PCB mounting. Wide operating temperature range from -40°C to 80°C ensures durability. Low maximum contact resistance of 20mΩ for efficient signal transmission.
This product is essential for industrial automation, consumer electronics, automotive lighting, and HVAC manufacturing environments. Explore the Molex brand and the Electronics Components category on EnvMart for comprehensive connectivity solutions.
