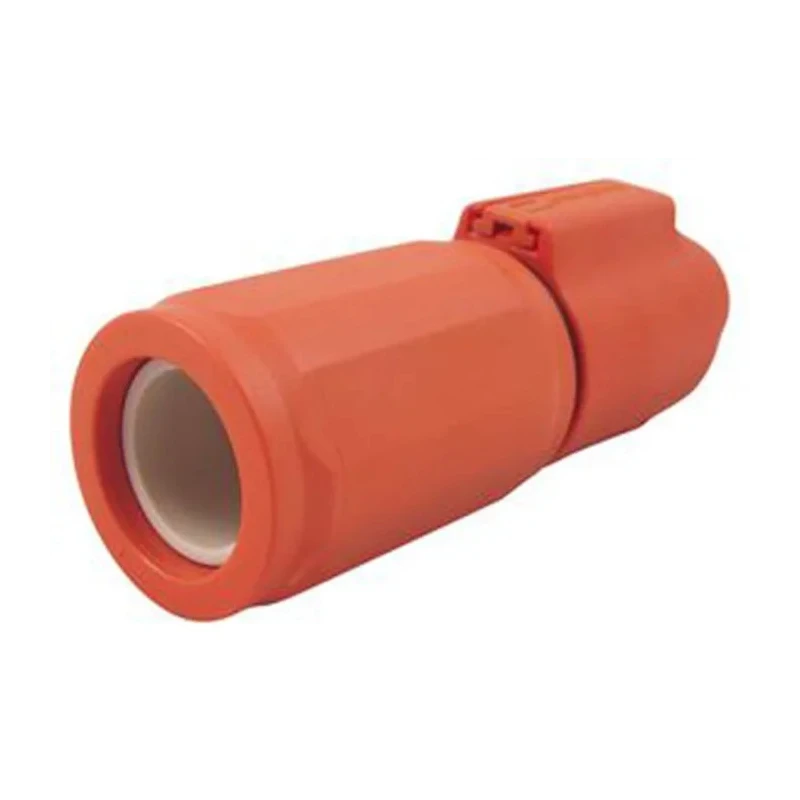

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Male 200A SLPIPB50BSR1 / C10-731951-211
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Red |
| Orientation | Straight |
| Current | 200A |
| Height | 24.6mm |
| Model | SLPIPB50BSR1 / C10-731951-211 |
| Depth | 72.4mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 21.4mm |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 8mm |
| Number of Rows | 1 |
| Wire size | 50mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Receptacle |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Female |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
Key Features
- The connector supports a current rating of 200A with an operating voltage of 1000V.
- It features a single row and single contact configuration with an 8mm pin diameter.
- The plug terminates with a crimp connection suitable for 50mm² wire size.
- Designed for harsh environments, it provides an IP67 ingress protection rating.
- The housing is made of thermoplastic and the contact material is a copper alloy for high conductivity.
- The connector is keyed with a 180-degree rotation prevention feature to avoid mismating.
- It has a UL 94-V0 flammability rating ensuring durability and safety.
- Operating temperature ranges from -40°C to 125°C, making it ideal for industrial and automotive EV applications.
Product Description
Amphenol Industrial SLPIPB50BSR1 / C10-731951-211 SURLOK PLUS RADSOK EV Connector Male 200A is a high-performance electrical connector designed for Electric Vehicle (EV) and Hybrid Electric Vehicle (HEV) applications, as well as rail mass transit, process control, medical, and battery management systems. It offers robust and reliable connectivity with a compact and quick mating compression lug.
This connector features R4 RADSOK technology, providing a high tensile strength connection with a highly conductive surface area. The 8mm pin diameter and cable termination for 50mm² wire size ensure a secure and efficient electrical path.
The plug supports a maximum current of 200A and an operating voltage of up to 1000V. Its thermoplastic housing and copper alloy contacts are designed for durability and excellent conductivity. The connector is straight in orientation and includes a keyed mechanism to prevent mismating with a 180-degree rotation lock. It also complies with the UL 94-V0 flammability standard and has an IP67 ingress protection rating, making it suitable for harsh industrial environments.
Operating temperature ranges from -40°C to 125°C, ensuring reliable performance under extreme conditions. As a renewable energy solution product under the Better World initiative, this connector supports sustainable technology goals. It is made in China and intended for use with SurLok 1-Position Receptacle connectors.
The connector supports 200A current and 1000V operating voltage. Single row and contact with crimp termination for 50mm² cables. High-quality materials include thermoplastic housing and copper alloy contacts. Features IP67 rating for dust and water ingress protection.
UL 94-V0 flammability rating for enhanced safety. Designed to prevent mismating with a 180-degree keyed locking feature. Suitable for EV, HEV, rail transit, process control, medical, and battery management applications. Operating temperature range from -40°C to 125°C for wide environmental use.
Compact dimensions: 24.6mm height, 21.4mm width, 72.4mm depth.
This Amphenol Industrial connector is ideal for industrial, automotive, and renewable energy sectors that demand high reliability and safety. Explore the broader range of EV Connectors available in the Amphenol SURLOK PLUS series to suit various power and application requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a maximum current rating of 200A.
The operating voltage for this model is up to 1000V.
It features a crimp termination suitable for 50mm² wire size.
The connector has an IP67 ingress protection rating, making it suitable for harsh environments.
The housing is made of thermoplastic, and the contact material is a copper alloy for high conductivity.
It operates effectively in temperatures ranging from -40°C to 125°C.
The pin diameter is 8mm.
This model features a single contact configuration.
It is designed for Electric Vehicle (EV) and Hybrid Electric Vehicle (HEV) applications, as well as rail mass transit and battery management systems.
Yes, it includes a keyed mechanism with a 180-degree rotation prevention feature to avoid mismating.
The dimensions of the connector are 24.6mm in height, 21.4mm in width, and 72.4mm in depth.
It complies with the UL 94-V0 flammability rating, ensuring safety.
