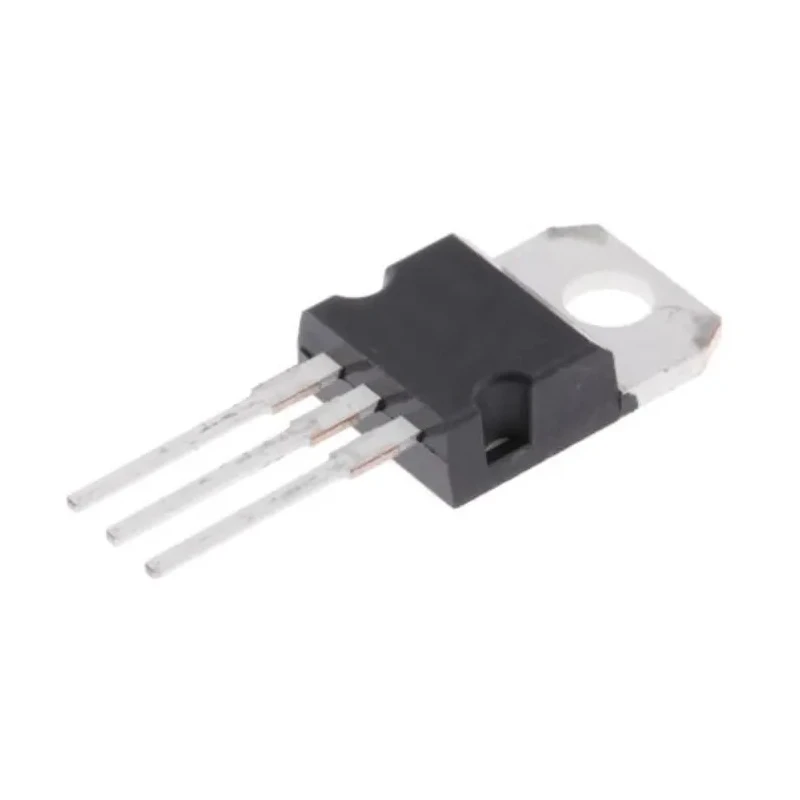

onsemi Digital Transistor NPN 80 V 70 W TO-220 Through Hole 3-Pin BDX33BG
Specifications
| Country of Origin | China |
|---|---|
| Brand | onsemi |
| Height | 9.28mm |
| Length | 10.53mm |
| Model | BDX33BG |
| Width | 4.83mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 80V dc |
| Minimum DC Current Gain hFE | 750 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 5V dc |
| Maximum Collector Base Voltage VCBO | 80V dc |
| Maximum Power Dissipation Pd | 70W |
| Transistor Configuration | Single |
Key Features
- The transistor has a high DC current gain of 750 minimum.
- It is designed for through-hole mounting with a 3-pin configuration.
- Maximum operating temperature is 150°C suitable for various electronic applications.
- Construction includes monolithic build with built-in base-emitter shunt resistors for stability.
- Low saturation voltage of 2.5 V maximum at 3 A collector current ensures efficient switching.
- Compact TO-220AB package facilitates easy integration in electronic circuits.
- Ideal for general purpose and low-speed switching in power applications.
- Manufactured in China with Pb-free packages available.
Product Description
onsemi BDX33BG is a high-performance digital NPN transistor designed for reliable switching and amplification in electronic and power circuits. Featuring an 80 V collector-emitter voltage rating and the ability to dissipate up to 70 W of power, this transistor is suitable for demanding industrial and commercial electronic applications.
Housed in a robust TO-220AB through-hole package with three pins, the BDX33BG offers ease of mounting and integration with standard printed circuit boards. Its design incorporates monolithic construction with built-in base-emitter shunt resistors, enhancing stability and reducing the need for external components.
The transistor exhibits a minimum DC current gain (hFE) of 750, ensuring effective current amplification. With a maximum operating temperature of 150°C, it can withstand harsh environmental conditions commonly encountered in industrial settings.
Low collector-emitter saturation voltage of 2.5 V at 3 A collector current maximizes efficiency by reducing power loss. This makes the BDX33BG digital transistor ideal for switching and amplification tasks in power supplies, motor control, and other electrical circuits.
Lead-free and RoHS compliant, the product supports environmentally friendly manufacturing and disposal processes. Its country of origin is China. The transistor supports high DC current gain for efficient amplification. Robust TO-220AB package for reliable mounting and heat dissipation.
Designed for through-hole mounting with a standard 3-pin layout. Maximum power dissipation of 70 watts suitable for power switching applications. Low saturation voltage reduces power loss during switching. Operates reliably under temperatures up to 150°C.
Pb-free and compliant with environmental regulations. Suitable for industrial, commercial, and electronic manufacturing use cases. Explore the wide selection of semiconductors and Bipolar Transistors at EnvMart for high-quality components designed to meet your industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum collector-emitter voltage rating for this model is 80 V DC.
It can dissipate up to 70 W of power, making it suitable for power switching applications.
The transistor has a minimum DC current gain (hFE) of 750.
It has a height of 9.28 mm, a length of 10.53 mm, and a width of 4.83 mm.
The maximum operating temperature is 150°C, allowing it to function in harsh environments.
This transistor is housed in a TO-220AB package, designed for through-hole mounting.
The BDX33BG is an NPN bipolar transistor.
These built-in resistors enhance stability and reduce the need for external components in the circuit design.
It is ideal for general purpose and low-speed switching in power applications, such as motor control and power supplies.
The maximum emitter-base voltage (VEBO) is 5 V DC.
It features a standard 3-pin configuration for easy integration with printed circuit boards.
Yes, it is lead-free and RoHS compliant, supporting environmentally friendly manufacturing and disposal processes.
