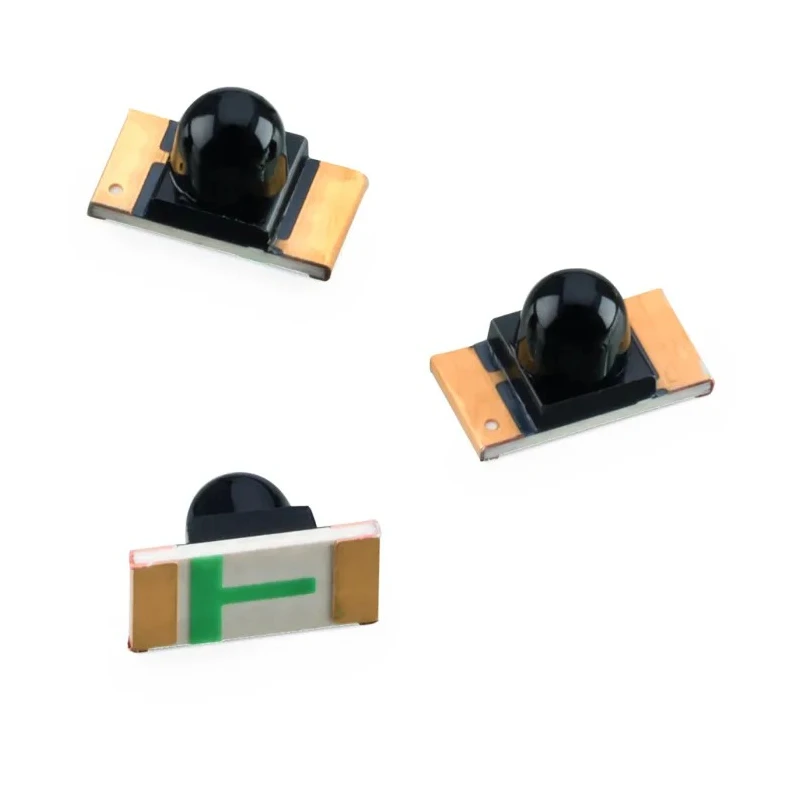

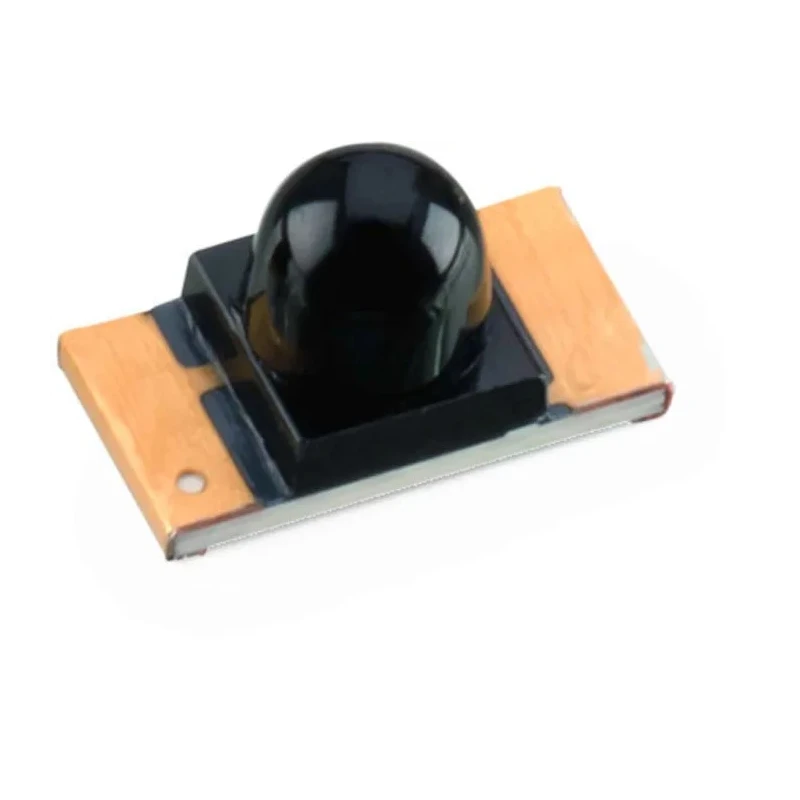

Wurth Elektronik Infrared Phototransistor Surface Mount 2-Pin 1206 Package 940nm Peak Wavelength WL-STRB 1541201NC3060
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.85mm |
| Length | 3.2mm |
| Model | 1541201NC3060 |
| Packaging | Tape & Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | WL-STRB |
| Maximum Operating Temperature | 85°C |
| Package Type | 1206 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | IEC 60286-3 2013 |
| Number of Pins | 2 |
| Peak Wavelength | 940nm |
| Spectrums Detected | Infrared |
| Angle of Half Sensitivity | 30 ° |
| Collector Current | 20mA |
| Maximum Dark Current | 100nA |
| Collector Emitter Voltage | 30V |
| Emitter Collector Voltage | 5V |
Key Features
- Features a peak wavelength of 940nm suitable for infrared spectrum detection.
- Compact 1206 surface mount package with dome lens for efficient assembly.
- Maximum collector current of 20mA with low maximum dark current of 100nA.
- Small detection angle of 30 degrees with daylight filter for precise sensing.
- Operational temperature range from -40°C to 85°C ensures reliability in diverse environments.
- Packaging is tape & reel for automated pick and place processes.
- Complies with IEC 60286-3 2013 standard for packaging and handling.
- Collector emitter voltage is 30V and emitter collector voltage is 5V.
Product Description
Wurth Elektronik 1541201NC3060 is an infrared phototransistor featuring a 2-pin surface mount 1206 package designed for precise infrared detection. It operates effectively across a temperature range of -40°C to 85°C and is built to meet IEC 60286-3 2013 standards for packaging, ensuring reliable performance in industrial and commercial applications.
This phototransistor detects infrared light with a peak wavelength of 940nm and has a narrow angle of half sensitivity at 30 degrees, allowing focused detection in encoder counters, security systems, position sensors, cleaning robots, and remote control devices. The device contains a built-in daylight filter enhancing its robustness against ambient light interference.
The 1206 standard size with a dome lens optimizes infrared reception while maintaining a compact form factor of 3.2mm length, 1.6mm width, and 1.85mm height. It supports a collector current up to 20mA with a very low maximum dark current of 100nA, enhancing sensitivity and low noise operation. Voltage ratings include a collector emitter voltage of 30V and emitter collector voltage of 5V.
This Phototransistor is supplied in tape and reel packaging, facilitating automated PCB assembly processes. It is particularly suited for applications in industrial automation, electronic instrumentation, and embedded system designs requiring precise infrared sensing capabilities.
Features a peak wavelength of 940nm suitable for infrared spectrum detection. Compact 1206 surface mount package with dome lens for efficient assembly. Maximum collector current of 20mA with low maximum dark current of 100nA.
Small detection angle of 30 degrees with daylight filter for precise sensing. Operational temperature range from -40°C to 85°C ensures reliability in diverse environments. Packaging is tape & reel for automated pick and place processes.
Complies with IEC 60286-3 2013 standard for packaging and handling. Collector emitter voltage is 30V and emitter collector voltage is 5V. Dimensions: length 3.2mm, width 1.6mm, height 1.85mm. Ideal for applications including encoder systems, counters, security, position sensors, cleaning robots, and remote controls.
Explore the wide range of electronic components at EnvMart for your industrial and electronic development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The phototransistor has a peak wavelength of 940nm, suitable for infrared spectrum detection.
This model has dimensions of 3.2mm in length, 1.6mm in width, and 1.85mm in height.
The maximum collector current for this phototransistor is 20mA.
It operates effectively within an operational temperature range from -40°C to 85°C.
The angle of half sensitivity is 30 degrees, allowing for focused detection.
It is supplied in tape and reel packaging, facilitating automated pick and place processes.
The collector emitter voltage is rated at 30V, and the emitter collector voltage is rated at 5V.
It complies with the IEC 60286-3 2013 standard for packaging and handling.
This phototransistor features a 2-pin configuration.
It is suitable for applications such as encoder systems, counters, security systems, position sensors, cleaning robots, and remote controls.
The maximum dark current is 100nA, which enhances sensitivity and low noise operation.
This model uses a surface mount type, specifically in a 1206 package.
