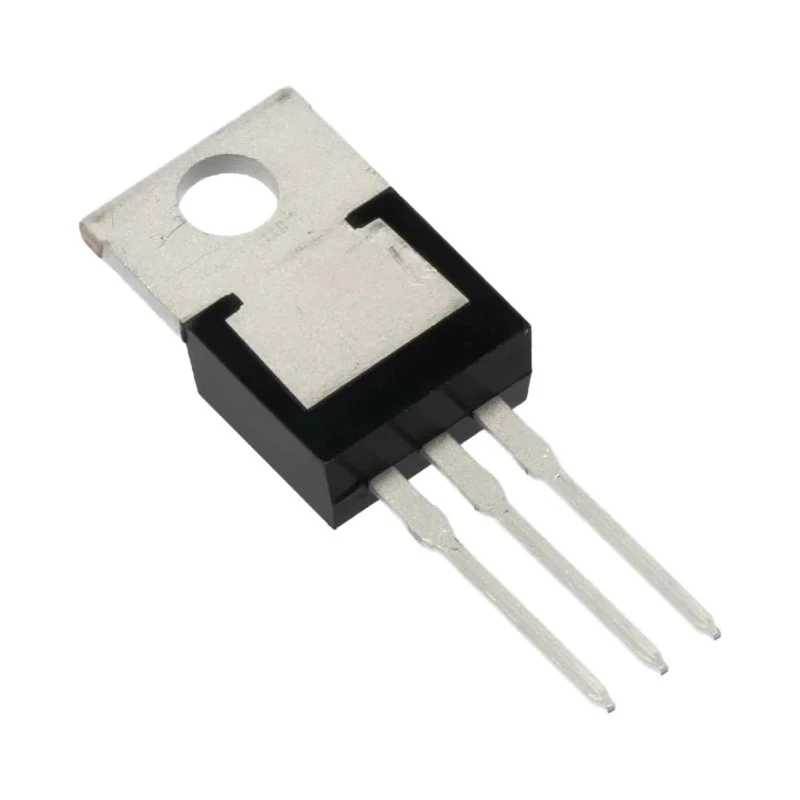

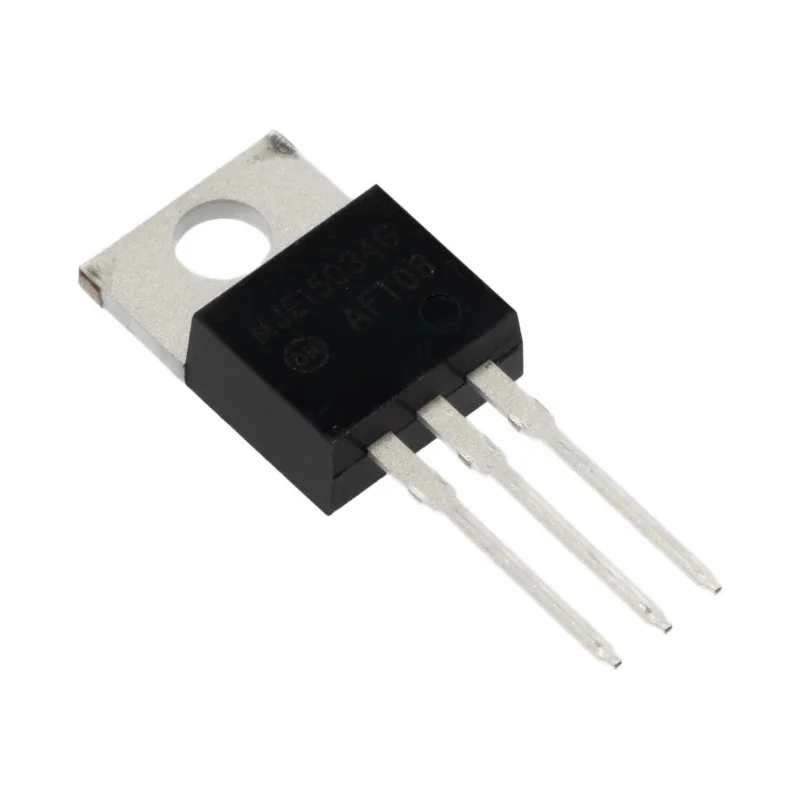

onsemi Bipolar Power NPN Transistor 8 A 350 V dc 50 W TO-220 MJE15034G
Specifications
| Country of Origin | China |
|---|---|
| Brand | onsemi |
| Height | 15.75mm |
| Length | 10.53mm |
| Model | MJE15034G |
| Width | 4.83mm |
| Mount Type | Through Hole |
| Series | MJE15034 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 350V dc |
| Minimum DC Current Gain hFE | 100 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 5V dc |
| Maximum Collector Base Voltage VCBO | 350V dc |
| Maximum Power Dissipation Pd | 50W |
| Maximum DC Collector Current Idc | 8A |
| Transistor Configuration | Single |
| Maximum Transition Frequency ft | 1MHz |
Key Features
- The transistor supports a maximum DC collector current of 8 A.
- It operates with a collector emitter voltage up to 350 V dc.
- This device features a TO-220 package suitable for through hole mounting.
- Maximum power dissipation is rated at 50 W ensuring robust operation.
- Transistor gain parameter has a minimum hFE of 100 for efficient amplification.
- Maximum operating temperature reaches up to 150°C for high reliability.
- Includes a 3-pin TO-220 configuration for easy integration.
- The device supports a maximum transition frequency of 1 MHz.
Product Description
onsemi MJE15034G bipolar power NPN transistor is engineered for use as a high-frequency driver in audio amplifiers and other electronic systems requiring reliable switching and amplification of current and voltage signals.
This transistor supports a maximum DC collector current of 8 amperes and a maximum collector emitter voltage rating of 350 volts dc, making it ideal for a range of power applications.
The MJE15034G comes in a compact TO-220 package optimized for through hole mounting, facilitating robust thermal dissipation and mechanical stability in industrial and commercial environments.
With a maximum power dissipation of 50 watts, it ensures stable operation under demanding load conditions. It also offers a minimum DC current gain (hFE) of 100 which contributes to efficient transistor performance in amplification circuits.
Designed for broad temperature tolerance, this transistor operates reliably from -65°C minimum to 150°C maximum operating temperature limits, suitable for industrial and automotive electronics.
The device features a 3-pin configuration and NPN polarity, with additional ratings including a maximum collector base voltage of 350 V and maximum emitter base voltage of 5 V. It supports a transition frequency of up to 1 MHz, enabling fast switching applications.
The transistor has no automotive standard certification but is RoHS compliant and lead-free. Manufactured in China, assuring standard quality control.
This transistor is recommended for industrial automation, advanced audio amplifier systems, power driver circuits, and other high power dissipation applications in electrical and electronic equipment.
For users seeking dependable bipolar power transistors with high voltage and current ratings for complex electronic assemblies, the onsemi MJE15034G is a suitable component. Discover more Bipolar Transistors and related semiconductors in the EnvMart Electronics & Electricals category to support your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC collector current of the MJE15034G transistor is 8 A.
This model has a maximum collector-emitter voltage rating of 350 V dc.
The maximum power dissipation for this transistor is rated at 50 W.
The minimum DC current gain (hFE) for the MJE15034G is 100.
The maximum operating temperature for the MJE15034G is 150°C.
It comes in a TO-220 package, which is suitable for through hole mounting.
This transistor supports a maximum transition frequency of 1 MHz.
The dimensions of the MJE15034G are 15.75 mm in height, 10.53 mm in length, and 4.83 mm in width.
The minimum operating temperature for the MJE15034G is -65°C.
This transistor features a 3-pin configuration and has NPN polarity.
It is recommended for use in industrial automation, advanced audio amplifier systems, and power driver circuits.
Yes, this model is RoHS compliant and lead-free.
