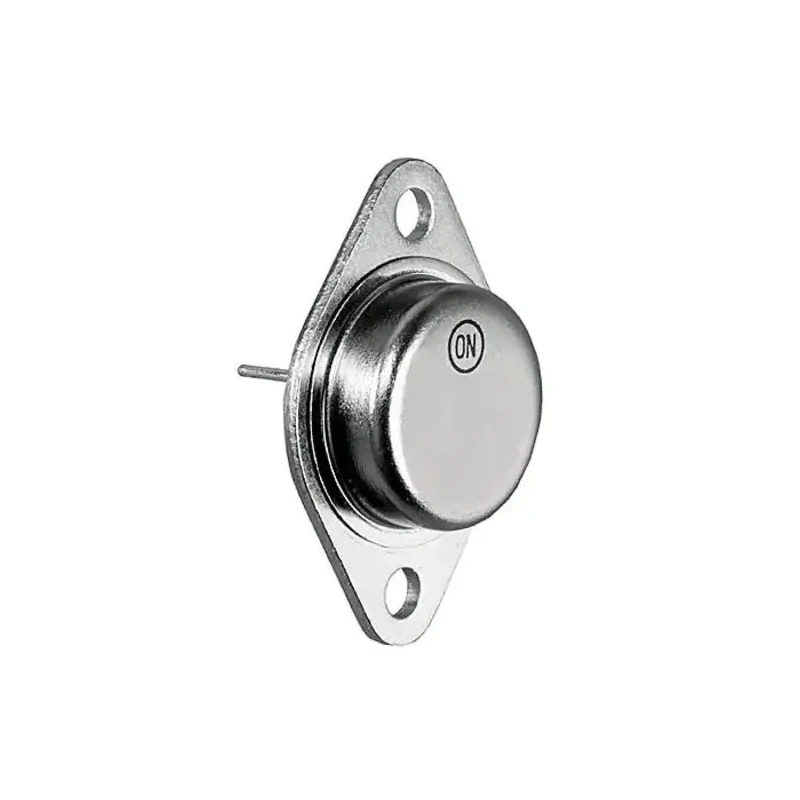

onsemi Transistor NPN 30 A 250 V 3-Pin TO-204 High Power MJ21196G

onsemi MJ21196G is a robust NPN transistor specifically engineered for high power audio output, disk head positioning, and linear electronics applications. It features a maximum DC collector current of 30 amperes and a maximum collector-emitter voltage of 250 volts, making it well suited for demanding electrical circuits requiring high current and voltage handling.

The transistor is constructed in a 3-pin TO-204 package, designed for reliable through-hole mounting on printed circuit boards. It supports a high power dissipation of 250 watts, ensuring it can operate efficiently in power-intensive environments. The device also exhibits a minimum DC current gain of 25, maintaining effective amplification with excellent gain linearity.

With a maximum transition frequency of 1 MHz, the MJ21196G can perform well in audio amplification and various linear electronic applications. Its thermal tolerances range from -65°C to 200°C, providing resilience under extreme operating conditions. Moreover, the transistor offers a high Safe Operating Area (SOA) rating where it can handle 3 A at 80 volts for 1 second, protecting against transient stress.

High current capacity of 30 A makes it ideal for power circuits. 250 V maximum voltage rating ensures reliable operation under load. Robust TO-204 package for durable through-hole mounting. Excellent power dissipation of 250 W for thermal management.

Minimum current gain of 25 ensures efficient amplification. Wide operating temperature range from -65°C to 200°C. Transition frequency of 1 MHz suitable for audio and linear applications. Safe Operating Area up to 3 A at 80 V for transient protection.

Manufactured in Mexico ensuring quality standards compliance.

This transistor is commonly employed in industrial, audio equipment, and precision control systems requiring reliable high power transistor functionality. It suits applications in power amplifiers, motor controllers, and linear signal processing circuits.
