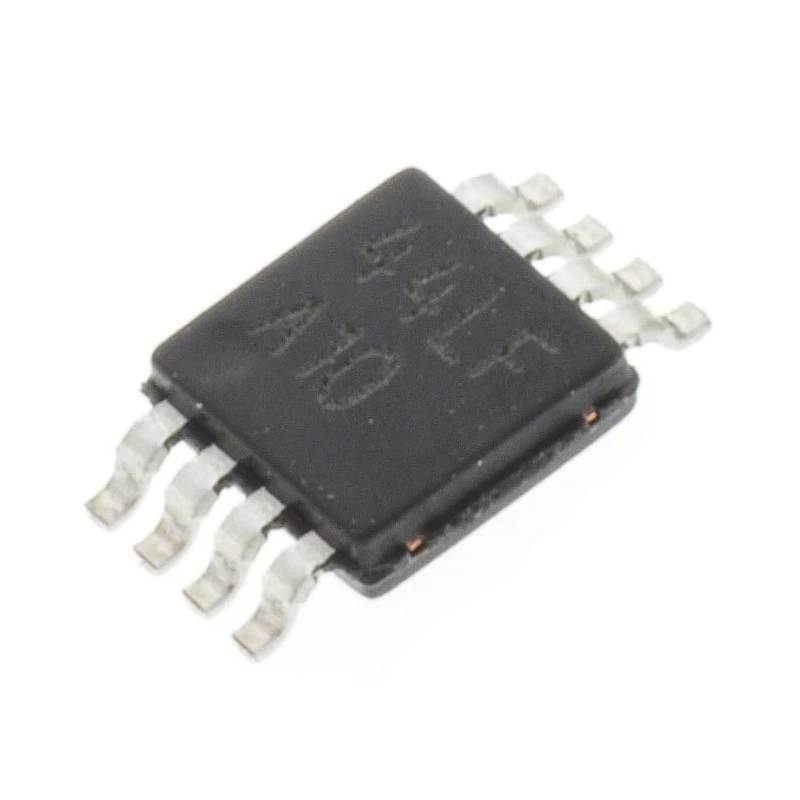

Texas Instruments Operational Amplifier 1.5 MHz Gain Bandwidth, 8-Pin MSOP Package LMC6482IMM/NOPB

The Texas Instruments LMC6482IMM/NOPB is a dual-channel operational amplifier designed for reliable and precise amplification with a gain bandwidth of 1.5 MHz. Housed in a compact 8-pin MSOP surface-mount package measuring 3 mm length by 3 mm width and 0.86 mm height, it suits modern electronics assembly where space and performance are critical.

This CMOS operational amplifier operates over a wide supply voltage range from 5 V up to 15.5 V, making it flexible for various power settings in industrial and consumer electronics. It ensures extremely low input bias current of 0.02 picoamperes and very low input offset current of 0.01 picoamperes, contributing to highly accurate signal amplification suitable for sensitive instrumentation and signal conditioning applications.

With an input offset voltage of 3.7 millivolts and a slew rate of 1.3 V/µs, the device responds rapidly to signal changes with minimal distortion. It offers a maximum output current of 12 milliamps and operates reliably within a temperature range from -40°C to 85°C, suitable for industrial, laboratory, and commercial environments.

The LMC6482IMM/NOPB does not carry automotive certification but meets typical semiconductor standards required in various electronic circuits involving amplifiers and comparators. Its surface-mount MSOP form factor simplifies automated PCB assembly and supports manufacturing efficiency.

Features dual operational amplifier channels for versatile applications. Offers a gain bandwidth product of 1.5 MHz for efficient signal amplification. Operates over a supply voltage range from 5 V minimum to 15.5 V maximum.

Low input bias current of 0.02 picoamperes for minimal signal distortion. Input offset voltage is 3.7 millivolts ensuring accuracy in signal processing. Slew rate of 1.3 volts per microsecond supports quick response times.

Compact MSOP surface-mount package of size 3 mm × 3 mm × 0.86 mm. Wide operating temperature range from -40°C to +85°C for reliable industrial performance. Maximum output current of 12 milliamps suitable for various load requirements.

Designed with CMOS technology providing low power consumption.

This product is ideal for designers and engineers in electronic component manufacturing, test instrumentation, and control systems. Its performance and compact size make it suitable in industrial automation, communications equipment, and laboratory instruments requiring low noise and high precision amplification.
