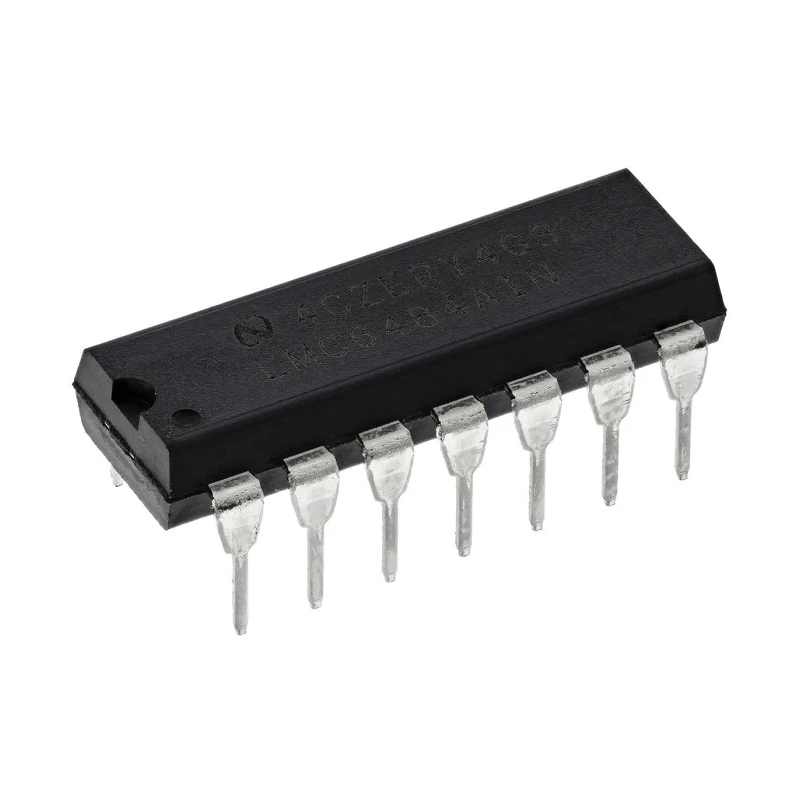

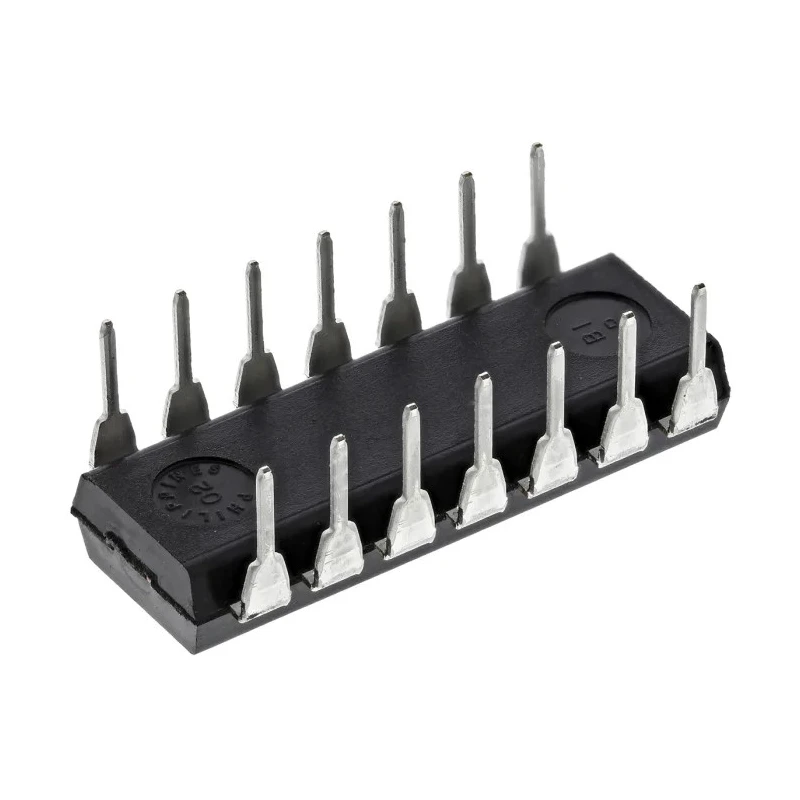

Texas Instruments Operational Amplifier 1.5 MHz, 4-Channel, 14-Pin MDIP, 5V-15.5V LMC6484AIN/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 3.3mm |
| Length | 19.05mm |
| Model | LMC6484AIN/NOPB |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | LMC6484 |
| Output Current | 12mA |
| Maximum Operating Temperature | 85°C |
| Package Type | MDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 15.5V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1.5MHz |
| Input Bias Current | 4 pA |
| Vos - Input Offset Voltage | 3.7 mV |
| Slew Rate | 1.3V/μs |
| Input Offset Current | 2 pA |
Key Features
- Operates with a supply voltage range between 5V to 15.5V.
- Maximum operating temperature is rated at 85 degrees Celsius.
- Features a low input offset voltage of 3.7 mV and input bias current of 4 pA.
- Offers a slew rate of 1.3 V/µs ensuring good response speed.
- The device is RoHS compliant, ensuring environmental safety.
- Pin count of 14 with a compact size of 19.05 mm length, 6.35 mm width, and 3.3 mm height.
- Output current capability is up to 12 mA.
- Designed in CMOS technology for efficient performance.
Product Description
Texas Instruments LMC6484AIN/NOPB is a high-performance, four-channel operational amplifier designed for use in a wide range of electronic applications. Featuring a 1.5 MHz gain bandwidth product, the device delivers stable and precise amplification across varying supply voltages from 5V to 15.5V. Packaged in a 14-pin MDIP form factor, it is ideal for through-hole mounting on printed circuit boards.
This operational amplifier offers a low input offset voltage of 3.7 mV and an input bias current of 4 pA, which ensures minimal signal distortion and high accuracy. The slew rate of 1.3V/µs allows for fast signal transitions, suitable for high-speed analog signal processing.
With a maximum operating temperature of 85°C, the LMC6484AIN/NOPB is reliable for industrial and commercial electronics requiring consistent performance under thermal stress. It supports an output current up to 12 mA, making it versatile for interfacing with various loads.
The device complies with RoHS standards, making it environmentally friendly and suitable for modern electronics manufacturing requirements. Its CMOS-based architecture contributes to efficient power consumption and extended device longevity.
Typical applications include signal conditioning, active filtering, instrumentation, and general-purpose amplification tasks in industrial, laboratory, communication, and automotive circuits where compliant standards are not mandatory.
Operates with voltage supply from 5V to 15.5V. 4 independent amplifier channels in a single package. 14-pin MDIP through-hole package for easy PCB integration. Low input offset voltage and bias currents for precision tasks.
Slew rate of 1.3 V/µs for responsive analog signal processing. Output current up to 12 mA for interfacing flexibility. RoHS compliant ensuring environmental safety. Compact dimensions: 19.05 mm length, 6.35 mm width, and 3.3 mm height.
This Texas Instruments operational amplifier model LMC6484AIN/NOPB is a reliable component choice in electronic design for enhancing signal integrity and amplification accuracy. Explore more Texas Instruments products and similar Operational Amplifiers on EnvMart for your industrial and electronic development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LMC6484AIN/NOPB has a gain bandwidth product of 1.5 MHz, allowing for stable amplification across various frequencies.
It operates with a supply voltage range between 5V and 15.5V, making it versatile for different applications.
This model features four independent amplifier channels in a single package, providing flexibility in circuit design.
It can deliver an output current of up to 12 mA, suitable for interfacing with various loads.
The dimensions are 19.05 mm in length, 6.35 mm in width, and 3.3 mm in height, making it compact for PCB integration.
The maximum operating temperature is rated at 85°C, allowing reliable performance in high-temperature environments.
The slew rate is 1.3 V/µs, ensuring good response speed for fast signal transitions.
It has a low input offset voltage of 3.7 mV, which helps minimize signal distortion.
Yes, the device is RoHS compliant, ensuring it meets environmental safety standards.
It is designed for through-hole mounting, packaged in a 14-pin MDIP form factor for easy PCB integration.
The input bias current is 4 pA, which contributes to its high accuracy and low distortion characteristics.
The minimum operating temperature is -40°C, allowing it to function in low-temperature environments.
