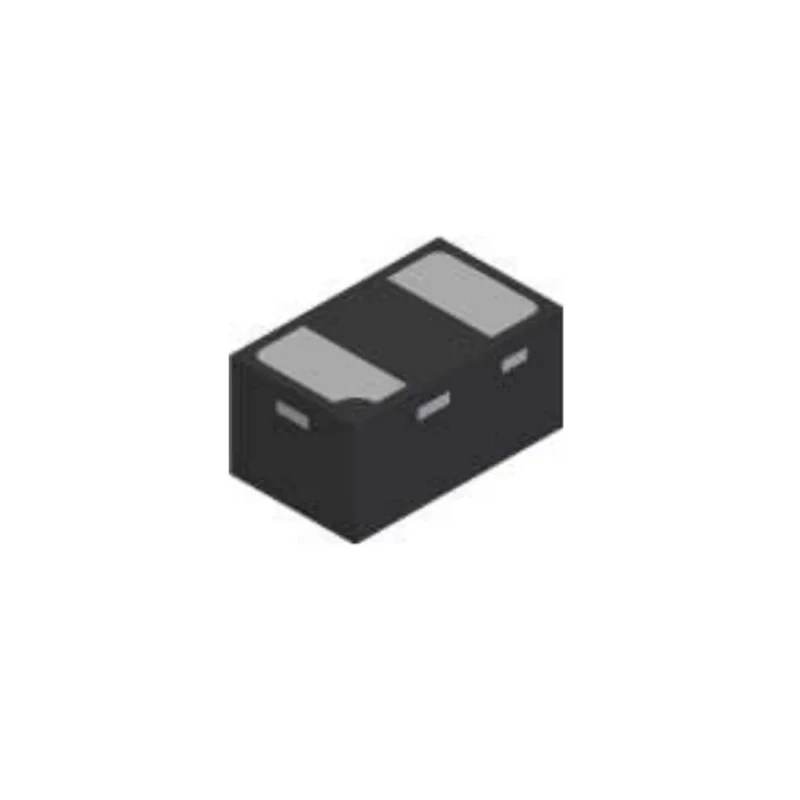

DiodesZetex 4-Element Uni-Directional TVS Diode 350 mW 10-Pin UDFN D5V0FS4U10LP-7
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 0.55mm |
| Length | 2.57mm |
| Model | D5V0FS4U10LP-7 |
| Width | 1.07mm |
| Mount Type | Surface |
| Series | DxV0 |
| Maximum Operating Temperature | 150°C |
| Package Type | UDFN |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 3 |
| Pin Count | 10 |
| Number of Elements per Chip | 4 |
| Clamping Voltage VC | 6V |
| Diode Configuration | Array |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 5.5V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 350mW |
| Maximum Peak Pulse Current Ippm | 3.5A |
| Maximum Reverse Leakage Current | 1μA |
| Clamping voltage | 6V at 16A TLP |
| TLP Dynamic Resistance | 0.25Ω |
Key Features
- This 350 mW TVS diode offers robust ESD protection for sensitive electronic circuits.
- Features a 10-pin UDFN surface mount package for compact PCB integration.
- Supports a minimum breakdown voltage of 5.5V and a maximum reverse stand-off voltage of 5V.
- Has a peak pulse power dissipation of 350mW and maximum peak pulse current of 3.5A.
- Operates reliably in temperature ranges from -55°C to 150°C.
- Offers ultra-low channel input capacitance of 0.45 pF making it ideal for high-speed USB 3.0 and DisplayPort applications.
- Totally lead-free and halogen & antimony free for environmentally friendly electronics.
- Constructed with a DxV0 series technology ensuring low dynamic resistance of 0.25 ohms.
Product Description
DiodesZetex D5V0FS4U10LP-7 is a 4-element uni-directional transient voltage suppression (TVS) diode designed specifically for protecting multiple high-speed I/O lines against ESD surges and transient voltage spikes.
Housed in a compact 10-pin UDFN2510 surface mount package, this diode array features a peak pulse power dissipation rating of 350 mW and a max peak pulse current rating of 3.5 A, delivering reliable surge protection in demanding industrial and consumer electronics applications.
Its minimal breakdown voltage of 5.5 V and maximum reverse stand-off voltage of 5 V help maintain normal circuit operation while clamping transient voltages quickly to a maximum clamping voltage of 6 V at 16 A (Transmission Line Pulse test conditions).
The ultra-low input capacitance of approximately 0.45 pF per channel allows this device to effectively protect high-speed data lines such as USB 3.0, USB 3.1, Serial ATA, and Display Port interfaces without degrading signal integrity.
Designed for operation over a wide temperature range from -55°C to 150°C, this diode ensures long-term reliability in industrial, computing, telecommunications, and automotive applications, despite not being automotive certified.
The device meets environmental standards as a “green” product - totally lead-free, halogen and antimony free - supporting sustainable manufacturing practices. 4 channels of ESD protection for high-speed data lines. Low dynamic resistance of 0.25 Ω to minimize voltage drop during transient events.
Small footprint surface mount to maximize PCB design flexibility. Suitable for use in electronic systems requiring robust ESD protection. China origin, manufactured with high-quality process controls.
Overall, the D5V0FS4U10LP-7 diode array is engineered for advanced transient voltage protection in sensitive electronic environments including industrial and computing hardware, ensuring extended device life and enhanced performance.
Explore EnvMart’s extensive range of semiconductors and TVS Diodes for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this model is 350 mW.
The maximum reverse stand-off voltage is 5 V.
It operates reliably within a temperature range of -55°C to 150°C.
The clamping voltage is 6 V at 16 A under Transmission Line Pulse test conditions.
This model features 4 elements per chip.
The ultra-low input capacitance is approximately 0.45 pF per channel.
It is housed in a compact 10-pin UDFN surface mount package.
The maximum peak pulse current rating is 3.5 A.
The dynamic resistance is 0.25 Ω, which helps minimize voltage drop during transient events.
Yes, it is totally lead-free and halogen & antimony free, supporting sustainable manufacturing practices.
It is suitable for protecting high-speed data lines such as USB 3.0, USB 3.1, Serial ATA, and DisplayPort interfaces.
The height is 0.55 mm and the width is 1.07 mm.
