TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 68 μH ±20 % 650 mA Idc B82462G4683M000

TDK B82462G4683M000 shielded wirewound Surface Mount Inductor offers a high-quality electronic component designed for filtering and power supply smoothing applications. Constructed with a ferrite core and enamel copper wire winding, this wirewound SMT inductor features magnetic shielding to minimize electromagnetic interference, suitable for sensitive electronic circuits.

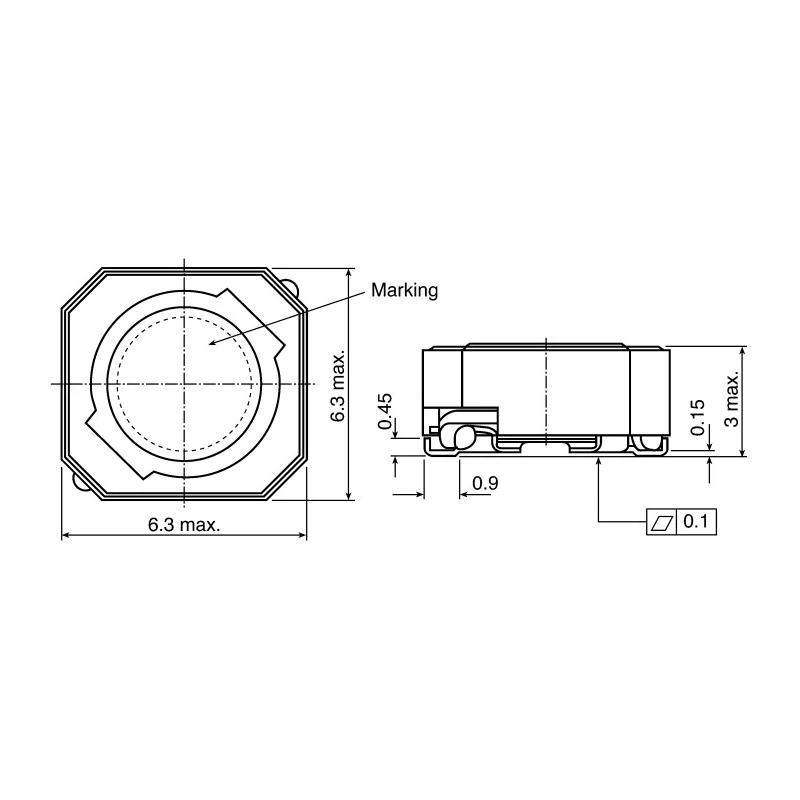

The device comes in a compact 6.3 mm length and depth, with a height of 3 mm, making it ideal for dense surface mount PCB layouts. It supports a maximum DC current of 650 mA and operates reliably within a wide temperature range extending from -55°C to 150°C, which makes it suitable for demanding industrial and automotive environments.

This inductor has an inductance value of 68 μH with a tolerance of ±20 %, providing consistent performance to support power filtering and signal conditioning. The solder termination style ensures secure and durable mounting during PCB assembly processes like reflow soldering. The ferrite core construction with wirewound winding delivers stable inductance and low resistance losses, as evidenced by the maximal DC resistance of 410 mΩ.

Manufactured to comply with RoHS directives and meeting the AEC-Q200 automotive test standards, this inductor guarantees environmental compliance and automotive reliability. Its packaging in tape and reel format facilitates automated pick-and-place assembly, increasing production efficiency in manufacturing environments.

Applications for the TDK B82462G4683M000 include power supply filtering, noise reduction, and electromagnetic interference suppression in automotive electronics, industrial control systems, communication devices, and consumer electronics.

Features magnetically shielded wire wound construction for reduced electromagnetic interference. Compact SMT size of 6 x 6 mm ideal for surface mount PCB applications. Wide operating temperature range from -55°C to 150°C allows industrial and automotive use.

Maximum DC current rating of 650 mA supports moderate load currents. Inductance tolerance of ±20 % ensures consistent performance in circuit filtering. Solder termination style for reliable surface mount soldering processes.

Ferrite core material and wirewound construction for stable inductance and low losses. Complies with RoHS and meets AEC-Q200 automotive standards for quality and reliability. Packaging in tape and reel format optimizes automated assembly and manufacturing efficiency.
