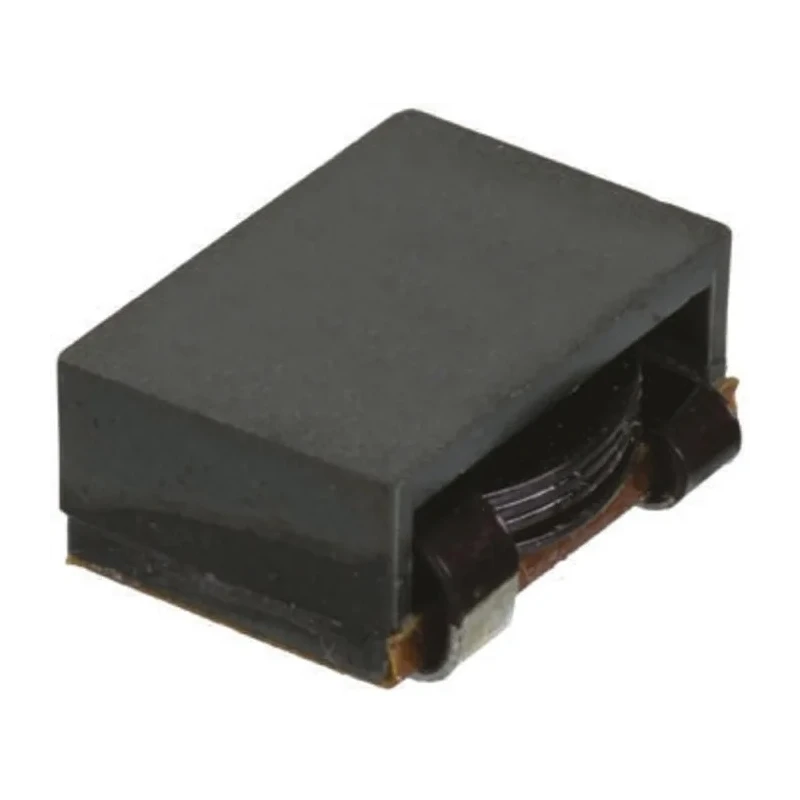

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core, 10 μH ±7% Inductance, 24 A DC Current, 25.3 B82559A7103A025

TDK B82559A7103A025 is a shielded wirewound surface mount inductor featuring a high-quality ferrite core optimized for industrial and commercial electronic applications. This inductor delivers an inductance of 10 μH with a tolerance of ±7%, supporting a maximum DC current rating of 24 A, suitable for high current circuits.

The device utilizes a magnetically shielded construction with a high temperature ferrite core, providing excellent electromagnetic interference (EMI) suppression and stable performance under thermal stress ranging from -40°C to 130°C. Its wirewound construction with low DC resistance of 2.2 mΩ minimizes power losses, enhancing efficiency in power conversion and filtering applications.

This component is designed for surface mount technology (SMT) assembly, supplied on tape for automated placement, and terminated with solderable ends for secure mechanical and electrical connection. The inductor measures 25.3 mm in length, with a height of 12.85 mm and a depth of 23.5 mm, fitting compact PCBs with space constraints.

Additional features include compliance with RoHS environmental standards and a maximum self-resonant frequency of 1 MHz, ensuring reliable functionality across a range of switching frequencies. It is an ideal choice for DC-DC converters, POL converters, VRM modules, and solar converter circuits in industrial, automotive (non-AEC qualified), telecommunications, and power supply applications.

Magnetically shielded ferrite core reduces EMI. High maximum DC current of 24 A supports demanding power circuits. Low DC resistance of 2.2 mΩ improves efficiency. Tape packaging facilitates automated surface mount manufacturing.

Wide operating temperature range from -40°C to 130°C. Compact size with 25.3 mm length and 12.85 mm height. Wirewound moulded construction enhances mechanical strength. RoHS compliant for environmental safety. Maximum self-resonant frequency of 1 MHz for stable operation.
