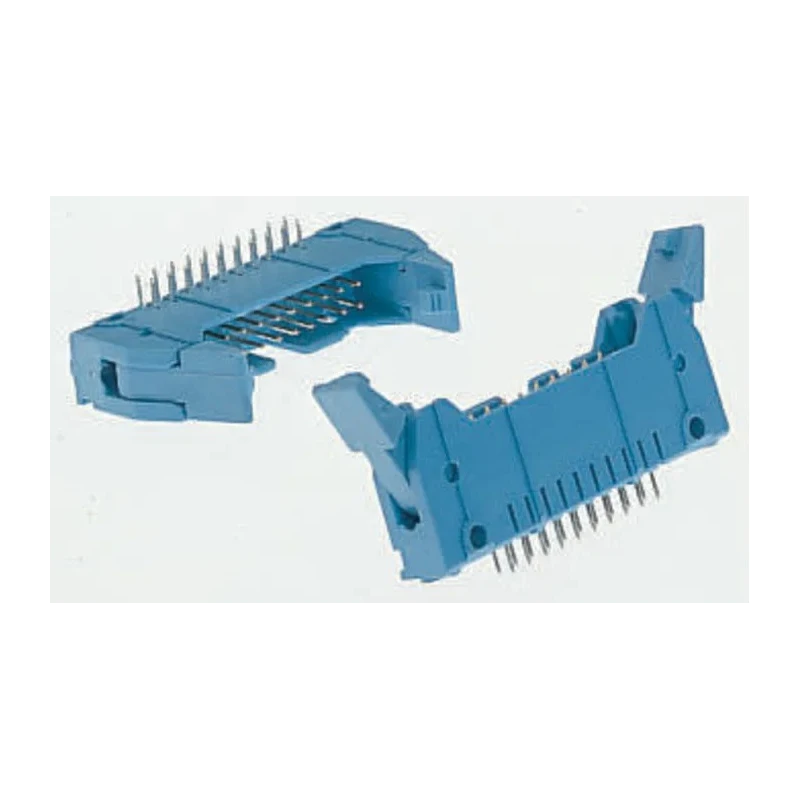

TE Connectivity AMP-LATCH Series PCB Header, Straight, Through Hole, 14 Contacts, 2.54 mm Pitch, 2 Rows 2-5499206-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.79mm |
Key Features
- Features AMP-LATCH series universal ejection latch design for secure mating.
- Provides 14 gold-plated brass male contacts arranged in two rows.
- Supports a standard 2.54 mm pitch for compatibility with IDC ribbon cable receptacles.
- Through hole mounting style with solder termination for stable PCB installation.
- Rated at 1A current and 250V voltage for reliable power delivery.
- Insulation housing made from durable nylon ensures high mechanical stability.
- Shrouded construction prevents mis-mating and provides polarization.
- Straight connector orientation supports neat and efficient assembly.
Product Description
The TE Connectivity AMP-LATCH Series 2-5499206-2 is a high-quality, straight through hole PCB header designed for robust interconnections in electronic assemblies. This shrouded header features 14 male contacts, arranged in two rows with a standard 2.54 mm pitch, providing reliable and consistent electrical connections for IDC ribbon cable assemblies and other wire-to-board requirements.
The AMP-LATCH universal ejection style construction allows for effortless insertion and secure mating, particularly useful in environments where connections are made and broken frequently. With ejection latches, the connector is easy to disconnect without exerting excessive force, while its dual polarization ensures correct orientation during the assembly process. The housing is constructed from durable nylon, further enhancing insulation and mechanical stability in challenging environments across industrial and commercial settings.
This connector is capable of carrying up to 1A current and is rated for operation at voltages up to 250V, meeting typical electronic application demands. Its gold-plated brass contacts ensure excellent conductivity and long-term corrosion resistance, while solder pin termination delivers secure PCB mounting. The connector's shrouded design minimizes risk of mis-mating and provides added protection for both the header and mating cable receptacle.
Operating efficiently across a wide temperature range from -65°C to 105°C, the TE Connectivity AMP-LATCH header meets the needs of high-reliability installations. Its male contacts, through hole format, and straight orientation make it suitable for PCBs in industrial controls, computing, networking, storage devices, medical instruments, and more.
Applications for the 2-5499206-2 include business and medical equipment, industrial automation, storage and networking systems, and test instruments. This connector is engineered to deliver reliable performance for both new equipment and upgrades to legacy systems.
Discover other AMP-LATCH or TE Connectivity PCB header solutions in our Electronics & Electricals > Electronics Components > PCB Header section for extended design flexibility.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 1A.
This model can handle voltages up to 250V.
The contacts are arranged with a standard pitch of 2.54 mm.
It features a total of 14 gold-plated brass male contacts.
This unit uses a through hole mounting style with solder termination.
The housing is made from durable nylon, and the contacts are made of brass with gold plating.
It operates efficiently within a temperature range of -65°C to 105°C.
The connector has a straight orientation.
This model is shrouded, which helps prevent mis-mating and provides polarization.
It is suitable for applications in industrial controls, computing, networking, storage devices, and medical instruments.
The tail pin length is 2.79 mm.
It belongs to the wire-to-board connector system.
