JAE Right Angle Through Hole PCB Header, 100 Contacts, 1.27mm Pitch, 2 Row, Shrouded, 1A, 500V TX25

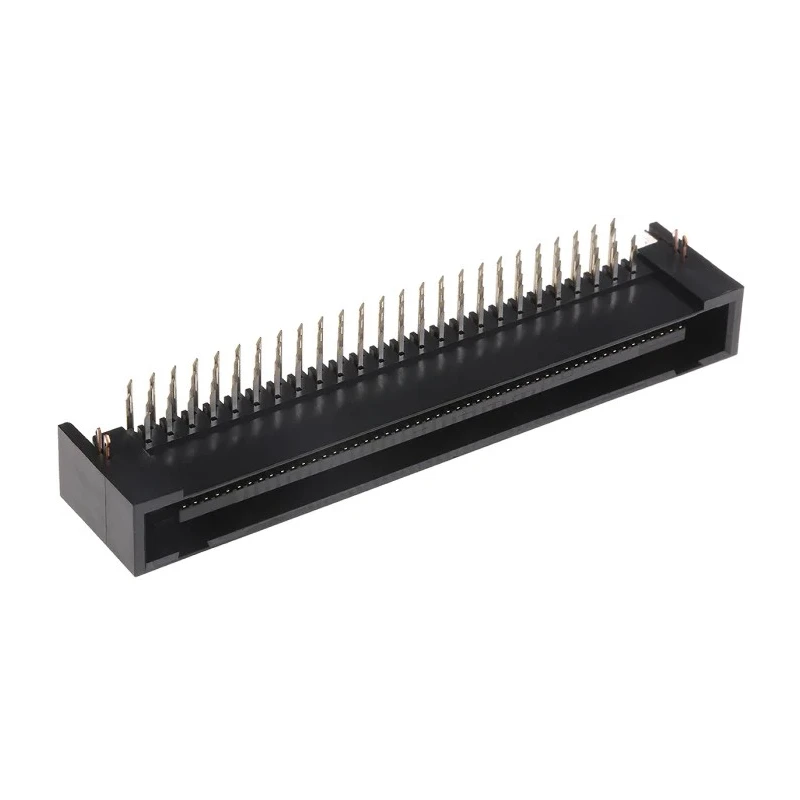

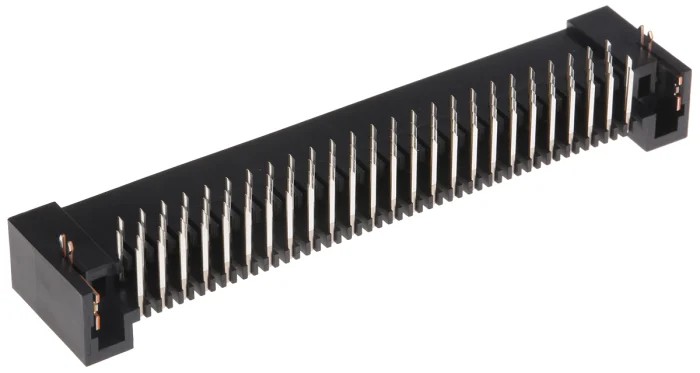

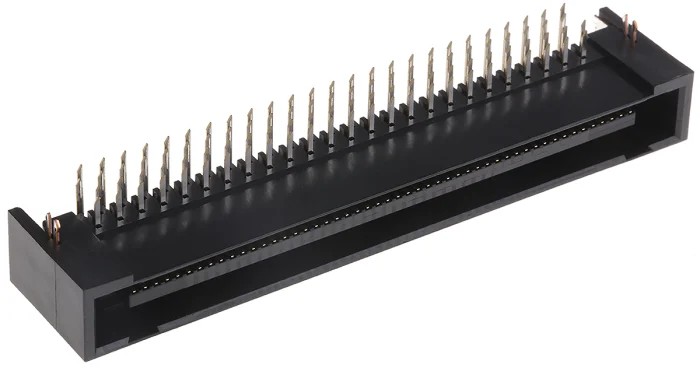

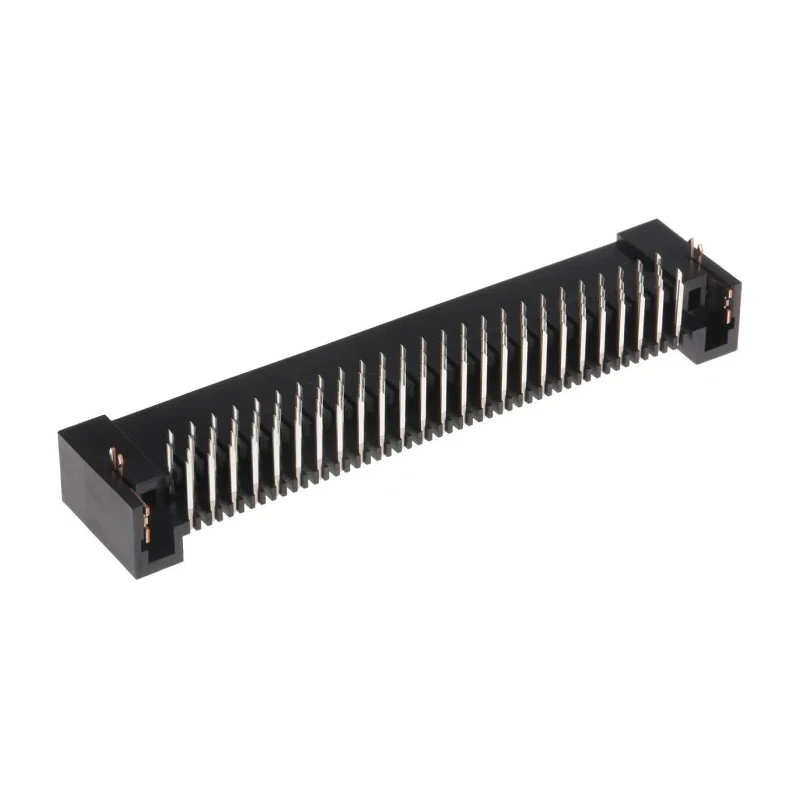

JAE TX25-100P-LT-H1E Right Angle Through Hole PCB Header is engineered for board-to-board connections, featuring 100 contacts arranged in two rows at 1.27 mm pitch. With a shrouded housing and right angle configuration, this header ensures robust, stable mating in dense electronic circuits where reliability and performance are essential.

The TX25 series integrates gold-plated copper alloy contacts, providing long electrical engagement for high reliability and excellent conductivity. Its non-pin contact design withstands mating and unmating forces, supporting the connector's durability in industrial and laboratory environments.

Polybutylene terephthalate (PBT) is used for housing, offering stability, chemical resistance, and integrated polarizing keys to prevent incorrect insertion and increase installation security. Through-hole mounting with solder terminations guarantees firm mechanical and electrical connections in demanding applications.

The header supports a current rating of up to 1A and withstands voltages up to 500V, making it suitable for applications ranging from industrial automation, instrumentation, and laboratory devices to commercial and medical electronics. With an operational temperature range of -40°C to 80°C, the TX25-100P-LT-H1E header matches challenging environmental requirements.

Its stable housing, dense contact layout, and click action design facilitate a true and reliable connection for rack and panel systems. The connector system is intended for board-to-board interconnects and is ideal for devices requiring predictable signal integrity and mechanical reliability.

Features a shrouded, right angle design suitable for rack and panel connections. Provides 100 contacts in two rows with a 1.27 mm pitch for dense PCB layouts. Gold-plated copper alloy contacts ensure stable electrical engagement and durability.

Through-hole mount with solder termination supports secure mechanical fastening. Polybutylene terephthalate housing with polarizing keys increases installation stability. Rated for 1A current and up to 500V operation, with temperature range from -40°C to 80°C.

Reliable click action ensures proper mating and unmating resistance. Wide usage in industrial, electronics, and commercial equipment assemblies. Explore more PCB Headers, connectors, and electronics parts from JAE and leading industrial brands with EnvMart’s extensive catalog.
