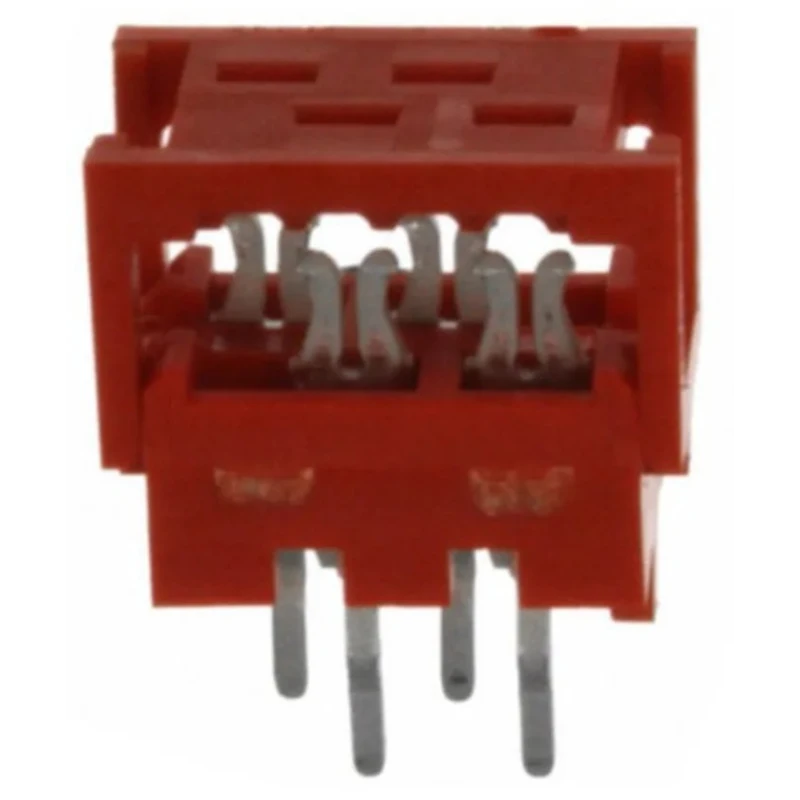

TE Connectivity 4-Way IDC Connector Male for Cable 2 Row 100V 1.5A Micro-MaTch 215570-4

TE Connectivity 215570-4 4-Way IDC Connector Male for Cable 2 Row is designed for efficient wire to board electrical interconnections. This Micro-MaTch series connector allows ribbon cables to connect directly to printed circuit boards (PCBs) without requiring separate mating connectors, enabling streamlined assembly in electronic components and manufacturing.

Featuring 4 male contacts arranged in 2 rows with a 1.27mm pitch, it supports a current rating of 1.5A and voltage rating of 100V, making it suitable for low power electronic applications.

The connector’s contacts are made of phosphor bronze, plated with tin over nickel, providing excellent conductivity and protection against fretting corrosion. The polyethylene terephthalate housing offers mechanical strength and electrical insulation.

Its IDC (Insulation Displacement Connector) termination type eliminates the need for wire stripping or other wire preparation, facilitating quick and reliable cable termination.

The operating temperature range from -40°C to +105°C ensures dependable operation in a variety of industrial, electrical, and electronic environments, including production equipment, robotics, control units, car radios, base stations, and audio equipment.

Designed with kinked leg connectors and board stand offs, this model provides secure retention on PCBs, maintaining gas-tight, fretting-resistant connections that withstand vibration and thermal expansion.

Applications for this connector include automation machinery, navigation systems, dashboards, and other electronics that require compact, space-saving, and reliable wire-to-board electrical connections.

The connector features 4 contacts arranged in 2 rows. It is rated for 1.5A current and operates at 100V. Constructed with phosphor bronze contacts and polyethylene terephthalate housing for durability. Tin over nickel plating on contacts ensures resistance against corrosion.

The IDC termination type allows direct ribbon cable connection without wire preparation. Operating temperature ranges from -40°C to 105°C ensuring reliable performance. Kinked leg design secures connector retention on the PCB and includes board stand offs.

The straight orientation and cable mount type facilitate straightforward installation. Explore a wide range of connectors and other electronic components at EnvMart for industrial and commercial use.
