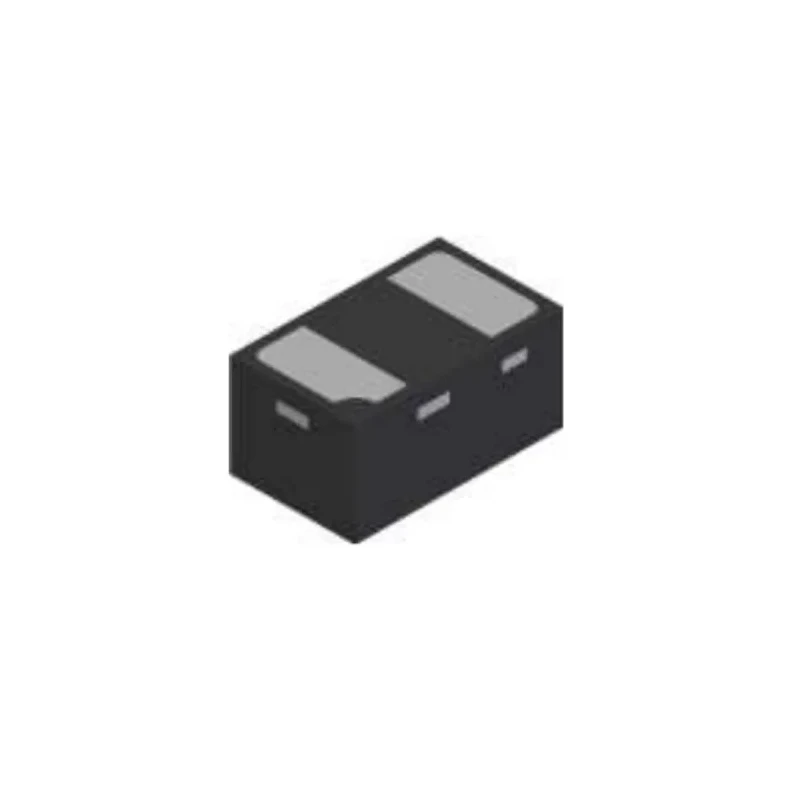

DiodesZetex 1-Element Uni-Directional TVS Diode 500 mW Surface Mount 2-Pin UDFN Package D4V5H1U2LP1610-7

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 1-Element Uni-Directional TVS Diode 500 mW Surface Mount 2-Pin UDFN Package D4V5H1U2LP1610-7

Name: DiodesZetex 1-Element Uni-Directional TVS Diode 500 mW Surface Mount 2-Pin UDFN Package D4V5H1U2LP1610-7
Brand: DiodesZetex
SKU: 155862
Price: 0.13 USD
Availability: InStock



Category TVS Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	0.5mm
Length	1.65mm
Model	D4V5H1U2LP1610-7
Width	1.05mm
Mount Type	Surface
Series	DxV0
Maximum Operating Temperature	150°C
Package Type	UDFN
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	11.5V
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	5.5V
Maximum Reverse Stand-off Voltage Vwm	4.5V
Peak Pulse Power Dissipation Pppm	500mW
Maximum Peak Pulse Current Ippm	90A
Maximum Reverse Leakage Current	1μA

Key Features

Provides ESD protection with a peak pulse power dissipation of 500 mW.
Surface mount device with a compact 2-pin UDFN package.
Minimum breakdown voltage of 5.5 V and clamping voltage of 11.5 V.
Operates in temperatures ranging from -55°C to 150°C.
Designed for protecting sensitive electronics in cellular phones, digital cameras, and portable electronics.
Ultra-small PCB footprint with 1.65 mm length and 1.05 mm width.
Low channel input capacitance ideal for high-speed signals.
Lead-free, halogen and antimony free for green compliance.

Product Description

DiodesZetex D4V5H1U2LP1610-7 is a single-element, uni-directional transient voltage suppression (TVS) diode offering 500 mW peak pulse power dissipation. The device uses a surface mount small-outline UDFN package measuring 1.65 mm in length, 1.05 mm in width, and a low profile height of 0.5 mm, making it ideal for compact, portable electronic applications.

This TVS diode provides robust ESD protection by clamping transient voltage spikes up to 11.5 V while maintaining a minimum breakdown voltage of 5.5 V and a maximum reverse stand-off voltage of 4.5 V. It supports operation over a wide temperature range from -55°C up to 150°C, ensuring reliability in harsh environments.

The diode is optimized for use in sensitive electronic devices such as cellular handsets, digital cameras, MP3 players, and other portable electronics where small size and high ESD surge capability are critical. Its low channel input capacitance helps preserve signal integrity in high-speed circuits.

Manufactured as a lead-free, halogen-free, and antimony-free "green" device, it complies with environmental standards. The diode's peak pulse current rating of 90 A ensures efficient protection against sudden voltage surges.

Provides ESD protection with a 500 mW peak pulse power dissipation. Uni-directional single element design for precise voltage clamping. Small footprint UDFN surface mount package suitable for compact PCBs. Wide operational temperature range of -55°C to 150°C.

Low channel input capacitance reduces impact on signal quality. Lead-free and environmentally friendly construction. Peak pulse current handling capability up to 90 A. Protects portable applications such as mobile phones and cameras.

This TVS Diode is well suited for use in industrial, communication, consumer electronics, and automotive ESD protection applications where high reliability and compact size are required. Explore EnvMart's extensive selection of semiconductor components for your circuit protection needs.
