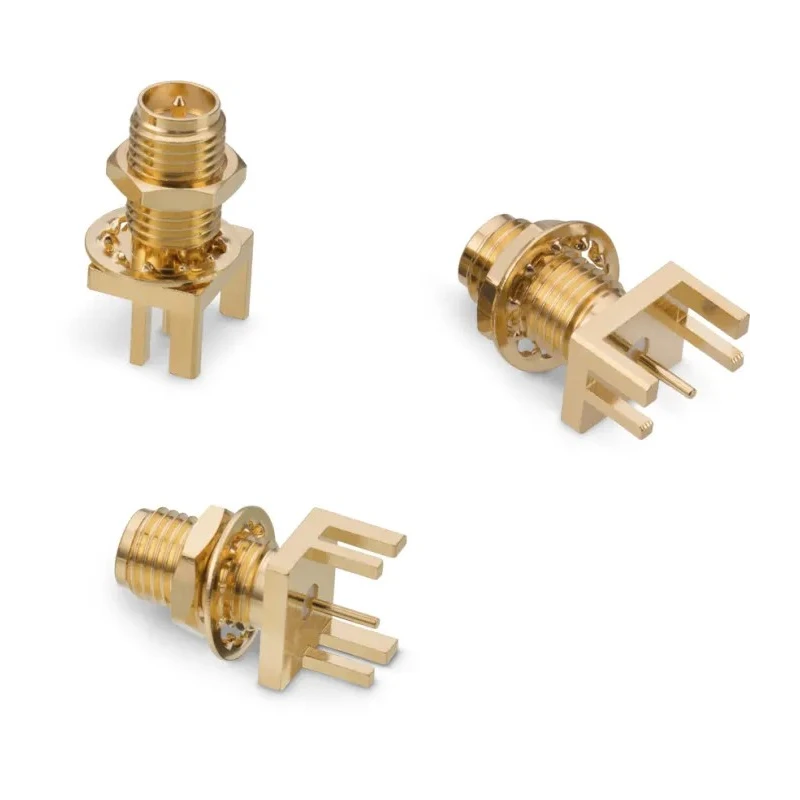

Wurth Elektronik WR-RPSMA Series Coaxial Connector Edge Female SMA 50 Ω Straight Body Solder 63012242124506

Wurth Elektronik 63012242124506 WR-RPSMA Series Coaxial Connector is a high-performance edge mount connector designed for RF applications requiring stable 50 Ω impedance. This female SMA connector features a straight, solder termination body plated with gold over nickel to ensure excellent signal integrity and corrosion resistance. It is suitable for use in industrial, laboratory, telecommunications, and manufacturing environments.

The connector accommodates up to 500 mating cycles and operates efficiently in temperature extremes ranging from -65°C up to 165°C, making it reliable for harsh and demanding conditions. Its reverse polarity design and bulkhead mounting enable secure PCB integration with standard size dimensions and a PCB thickness of 1.6mm matched for end launch mounting.

The brass contact material, gold plated over nickel, provides low electrical resistance and long service life. This product is RoHS and halogen-free compliant, supporting environmental and safety regulations. The WR-RPSMA series is optimized for frequencies up to 18 GHz, suitable for high-frequency communication and measurement devices.

Supports 500 mating cycles for durability. Temperature range: -65°C to 165°C for harsh environments. Edge mount type for easy PCB installation. Standard size and reverse polarity design. Solder termination ensures strong mechanical and electrical connection.

Gold over nickel plating on body and contact enhances corrosion resistance. Compliant with RoHS and halogen-free standards.

Applications include telecommunications equipment, industrial sensors, laboratory test instruments, and manufacturing automation requiring precise and reliable coaxial connections. This connector is made in Taiwan, Province of China, ensuring quality manufacturing standards.
