Vishay Phototransistor Silicon NPN Epitaxial Planar Near Infrared and Visible Radiation Sensitive 2-Pin Surface VEMT2500X01

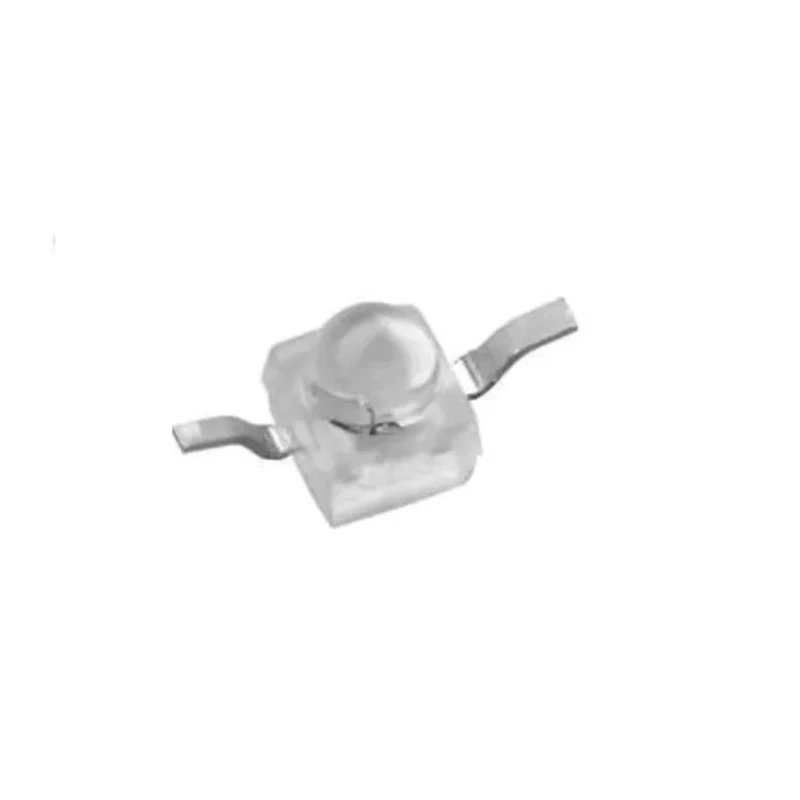

The Vishay VEMT2500X01 is a high-performance silicon NPN epitaxial planar phototransistor designed for detection of near infrared and visible radiation. It features a miniature dome lens clear epoxy surface mount package with 2 pins, making it suitable for compact circuit board assemblies. This phototransistor exhibits high radiant sensitivity and fast response times, ideal for diverse industrial, automotive, and electronic applications.

Operating at a peak wavelength of 850 nm, the device supports a maximum collector current of 50 mA and maximum light current of 9 mA with a minimal dark current of 100 nA. The half sensitivity angle is ±15 degrees, allowing precise control of the detection field. Its compact size, measuring 2.3 mm in length and width and 2.8 mm in height, enables integration into high-density PCBs.

This phototransistor supports a wide temperature range from -40°C to 100°C, ensuring durability under varied environmental conditions. It complies with RoHS Directive 2002/95/EC and WEEE 2002/96/EC environmental regulations, alongside automotive standard AEC-Q101 certification, confirming suitability for automotive and industrial device manufacturing.

Common applications include optoelectronic circuits, light detection systems, infrared sensors, and other electronic components requiring near-infrared and visible spectrum detection in industrial, automotive, manufacturing, and laboratory environments.

Silicon NPN epitaxial planar phototransistor with miniature dome lens clear epoxy package. Detects near infrared and visible light with peak sensitivity at 850 nm. Maximum collector current of 50 mA and light current of 9 mA.

Low dark current and fast switching speeds for precise measurements. Surface mount 2-pin GW package with compact dimensions. Wide operating temperature range (-40°C to 100°C) for reliability. RoHS and WEEE compliant, environmentally friendly design.

Certified AEC-Q101 automotive standard for harsh environment applications. Manufactured in Philippines with strict quality control.

This Vishay phototransistor is ideal for electronics engineers and manufacturers needing reliable optical detection components in industrial, automotive, laboratory, HVAC, and commercial applications. Explore more Vishay Phototransistors and optoelectronic components on EnvMart for extended solutions.
