| Country of Origin | China |
|---|---|
| Diameter | 0.6mm |
| Brand | Vishay |
| Height | 1.3mm |
| Length | 26mm |
| Model | BAT85S-TR |
| Width | 1.7mm |
| Mount Type | Through Hole |
| Series | BAT85S |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-35 (DO-204AH) |
| Minimum Operating Temperature | 65°C |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 5A |
| Maximum Forward Voltage Vf | 800mV |
| Peak Reverse Recovery Time trr | 5ns |

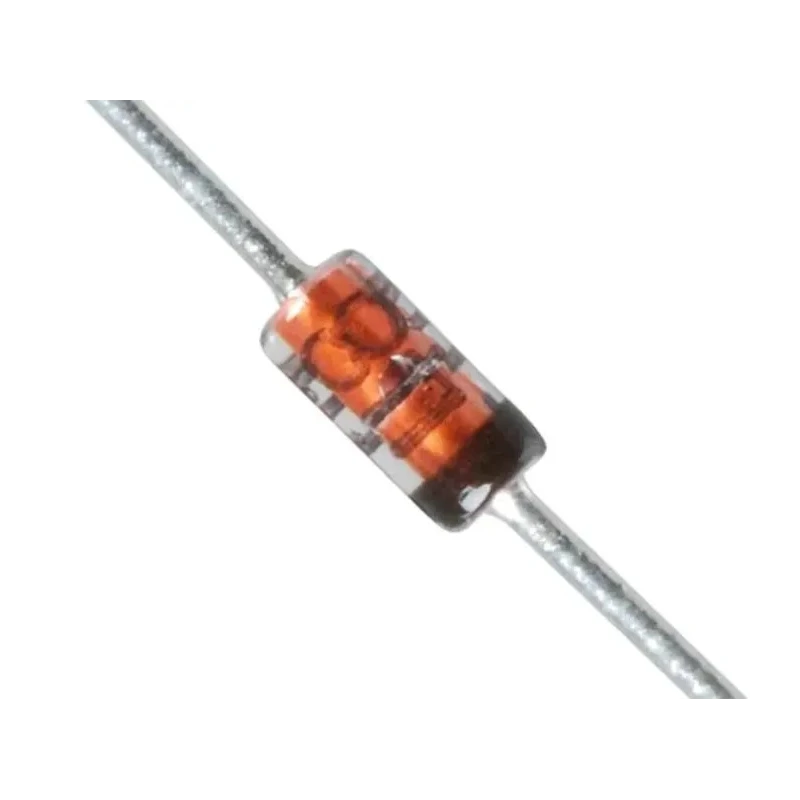

Vishay BAT85S-TR Rectifier & Schottky Diode is a highly reliable semiconductor component designed for discrete rectifier applications requiring low forward voltage drop and fast switching performance. It features a through-hole mount type in the compact DO-35 (DO-204AH) package with two pins.
The diode supports a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage rating of 30 V, making it suitable for low power rectification tasks in electronic circuits. Its small size with a length of 26 mm and diameter of 0.6 mm enables easy integration into PCB designs where space is limited.
The BAT85S-TR is certified to the automotive standard AEC-Q101, ensuring durability in harsh operating environments such as automotive, industrial, and commercial electronics. The device is halogen free and includes an integrated protection ring to guard against static discharge events, enhancing its robustness and operational lifetime.
Operating temperature range from -65°C up to 125°C accommodates a wide variety of environmental conditions. The forward voltage drop is extremely low at 800 mV, reducing power losses and improving circuit efficiency. With a peak reverse recovery time of only 5 ns, it delivers fast switching performance ideal for high-speed rectifier circuits.
This diode is used extensively in industrial, automotive, telecommunications, and consumer electronic equipment where efficient and low noise rectification is critical. Its through-hole pin configuration simplifies installation and ensures mechanical stability in high-vibration settings.
Extremely low forward voltage reduces power dissipation. Integrated static discharge protection ring enhances device reliability. Automotive certified to AEC-Q101 standard for stringent quality requirements. Wide operating temperature range from -65°C to 125°C.
Compact DO-35 package with precise mechanical dimensions for PCB mounting. Ideal for use in industrial, automotive, and consumer electronics applications. RoHS compliance and lead-free construction promote environmental sustainability.
