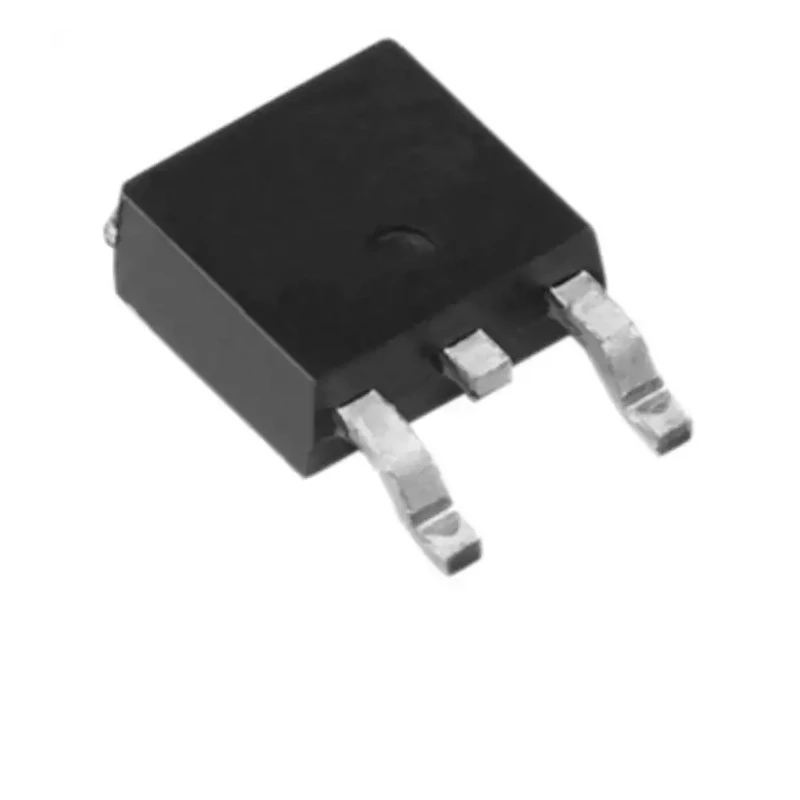

Vishay Switching Diode, Single, 15 A, 4-Pin, 600 V TO-252 Package VS-15AWL06FN-M3

Vishay VS-15AWL06FN-M3 switching diode is a high-performance, general-purpose semiconductor device designed to meet demanding power switching and rectification requirements in industrial and electronic applications. This device employs state-of-the-art ultralow forward voltage (VF) and soft-switching hyperfast recovery technology, enabling optimized operation in Discontinuous (Critical) Mode Power Factor Correction (PFC) systems. The diode minimizes conduction and switching losses by optimized stored charge and low recovery current, reducing thermal dissipation and enhancing efficiency in power supplies.

Equipped with a TO-252 package and four pins, this surface mount diode measures 6.73 mm in length, 6.22 mm in width, and 2.26 mm in height, providing a compact footprint suitable for high-density PCB layouts. Its capability to sustain a maximum forward current of 15 A and a peak reverse repetitive voltage of 600 V makes it ideal for robust power electronics circuits.

The diode offers a maximum forward voltage of 0.85 V, ensuring minimal power loss during conduction. It also exhibits a peak reverse recovery time of 120 ns, supporting ultrafast switching necessary for efficient power converter operation. Its wide operating temperature range from -65°C to 175°C junction temperature allows reliable performance in harsh environments common in industrial, manufacturing, and commercial power electronics applications.

Common industrial and commercial applications include power factor correction circuits in switching power supplies, use as freewheeling diodes in motor drives, and general-purpose rectification tasks in switching power systems. The diode’s high surge current rating of 180 A also ensures robustness against transient conditions.

Supports maximum forward current of 15 amperes for robust performance. Features a peak reverse repetitive voltage of 600 volts ensuring reliable blocking capability. Extremely low forward voltage drop of 0.85 V minimizes conduction losses.

Soft recovery time of 120 nanoseconds reduces switching losses in power applications. Can operate in temperature range from -65°C to a maximum junction temperature of 175°C. Suitable for use in power factor correction (PFC) circuits with Discontinuous (Critical) Mode operation.

Designed for efficient freewheeling diode applications in power supplies and switching circuits. Compact TO-252 package with 4 pins for easy surface mounting and integration. Peak non-repetitive forward surge current rating of 180 A allows handling of transient conditions.
