Samtec FPC Connector 1 mm Pitch 20 Way Horizontal Female Surface Mount Solder Termination ZF1-20-01-T-WT

Free Delivery in India | Lowest Global Shipping Charges

Samtec FPC Connector 1 mm Pitch 20 Way Horizontal Female Surface Mount Solder Termination ZF1-20-01-T-WT

Name: Samtec FPC Connector 1 mm Pitch 20 Way Horizontal Female Surface Mount Solder Termination ZF1-20-01-T-WT
Brand: Samtec
SKU: 154589
Price: 1.6 USD
Availability: InStock



Category FPC Connector Brand Samtec Condition New

Specifications

Country of Origin	China
Voltage	200V
Brand	Samtec
Orientation	Horizontal
Current	2.9A
Model	ZF1-20-01-T-WT
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	ZF1
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	FFC
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	1mm
Contact Plating	Gold over Nickel
Number of Contacts	20
Contact Gender	Female
Connector Gender	Female
Insertion Force	ZIF
Contact Position	Bottom

Key Features

The connector features a phosphor bronze contact material for durability.
Gold over nickel plating ensures reliable conductivity and corrosion resistance.
It supports a current rating of 2.9 amperes with a voltage rating of 200 volts.
The housing is made of liquid crystal polymer, offering excellent thermal stability.
Minimum and maximum operating temperatures range from -55°C to 105°C.
Insertion force is ZIF (Zero Insertion Force) type to ease cable insertion and removal.
The connector is horizontally oriented with single row contacts.
Designed without specific standards or approvals.

Product Description

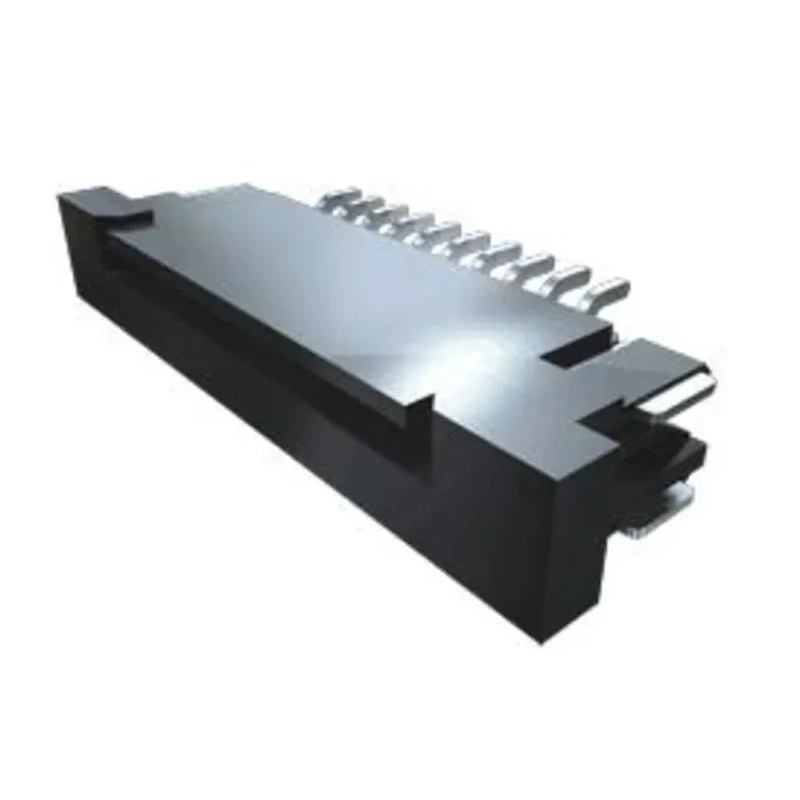

Samtec ZF1-20-01-T-WT is a high-quality FPC Connector featuring a 1 mm pitch and 20-way horizontal female contacts designed specifically for surface mount solder termination applications. This connector series is engineered to deliver reliable performance in demanding electronic component assemblies.

Constructed with phosphor bronze contacts plated with gold over nickel, this connector ensures superior electrical conductivity and excellent resistance to corrosion. The housing material, a liquid crystal polymer, provides exceptional thermal stability, allowing operation from -55°C up to 105°C, making it suitable for a wide range of industrial and commercial electronic applications.

The connector supports a continuous current of 2.9 amperes and a voltage rating of 200 volts, suitable for low-power electronic devices. Its Zero Insertion Force (ZIF) mechanism facilitates easy cable insertion and removal, minimizing wear and extending connector life.

This single-row connector is horizontally oriented and designed for flexible printed circuit (FPC) applications. Despite the lack of specific standards or certifications, its construction and materials meet industrial expectations for reliable performance.

Typical use cases include electronics manufacturing, power connectors, and PCB interface solutions in industries such as consumer electronics, telecommunications, instrumentation, and industrial controls. The connector provides a dependable interface for devices requiring compact, robust, and high-performance connectivity solutions.

The connector features a phosphor bronze contact material for durability. Gold over nickel plating ensures reliable conductivity and corrosion resistance. Supports current up to 2.9 amperes and voltage rating of 200 volts.

Housing made from liquid crystal polymer offers thermal stability. Operating temperature range from -55°C to 105°C. Zero Insertion Force (ZIF) insertion mechanism reduces connector damage. 20 way horizontal female contacts in a single row configuration.

Surface mount solder termination type suitable for PCB assembly. Ideal for use in electronic, power, and connector applications.
