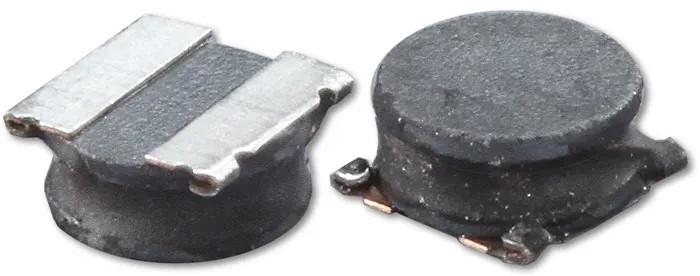

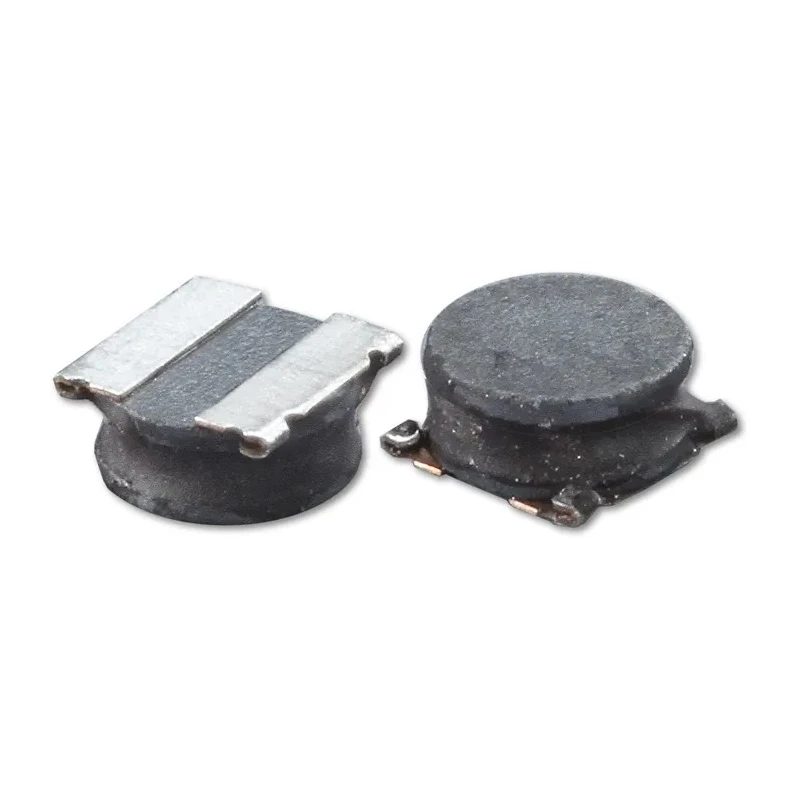

Abracon Shielded Surface Mount Inductor Ferrite Core 22 µH Flat Wire Winding ±20 % 570 mA Idc ASPI-0315FS-220M-T2
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.5mm |
| Brand | Abracon |
| Height | 1.5mm |
| Length | 3mm |
| Model | ASPI-0315FS-220M-T2 |
| Depth | 1.5mm |
| Packaging | Tape & Reel |
| Series | ASPI-0315FS |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 570mA |
| Pin Count | 4 |
| Maximum DC Resistance | 598mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 23MHz |
| Inductor Construction | Flat Wire Winding |
| Small size and low profile | 1.5mm |
Key Features
- The inductor features flat wire winding construction for enhanced performance.
- It includes magnetic shielding to reduce interference and enhance reliability.
- The unit has a compact size with dimensions 3 mm length, 1.5 mm height and 1.5 mm depth.
- It has a maximum DC resistance of 598 mΩ ensuring low energy loss during operation.
- Designed to operate within a temperature range from -40°C up to 125°C for robust thermal performance.
- Compliance with RoHS standards ensures safe and eco-friendly use.
- Packaging is tape and reel, suitable for automated surface mount device assembly.
- Ideal for applications in mobile phones, digital cameras, MP3 players, and other portable communication devices.
Product Description
Abracon ASPI-0315FS-220M-T2 is a shielded surface mount inductor designed with a ferrite core and flat wire winding, offering 22 μH inductance with a tolerance of ±20 %. This surface mount device has a compact footprint of 3 mm length, 1.5 mm height, and 1.5 mm depth, with a diameter of 2.5 mm and 4 pins for PCB integration.
It supports a maximum DC current of 570 mA and features a maximum DC resistance of 598 mΩ, ensuring efficient current handling with minimal losses.
The operating temperature range spans from -40°C to 125°C, making it suitable for a wide array of industrial, consumer electronics, and communication applications requiring thermal reliability.
The magnetic shielding with molding by magnetic powder significantly reduces electromagnetic interference, increasing stability in sensitive electronic circuits. This inductor is RoHS compliant and packaged in tape and reel format, supporting high-volume automated surface mount placement.
The small size and low profile design facilitate use in compact electronic devices. High current rating and low resistance provide excellent electrical performance. Magnetic shielding enhances reliability in complex electronic assemblies.
Flat wire winding construction optimizes inductance and performance. Temperature rating and robust materials support durability in various environments. Suitable for applications such as mobile phones, digital cameras, MP3 players, and other portable communication equipment.
Provides a reliable solution for power management and filtering in electronic systems. Explore more Surface Mount Inductors and Abracon products in the Electronics Components category at EnvMart for diverse electronic design needs.
