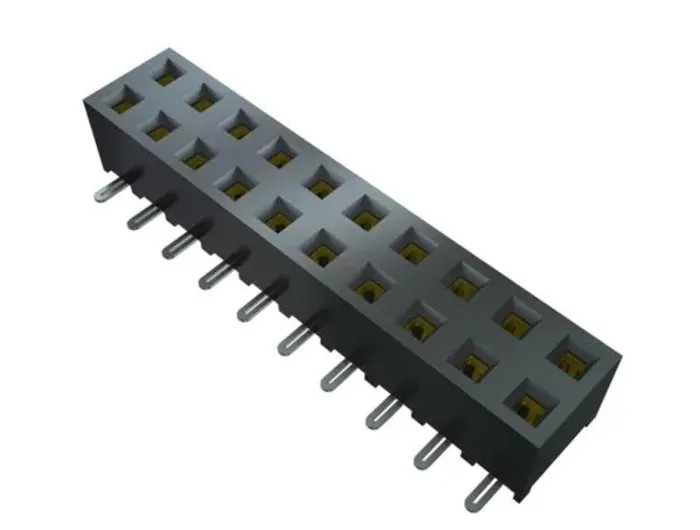

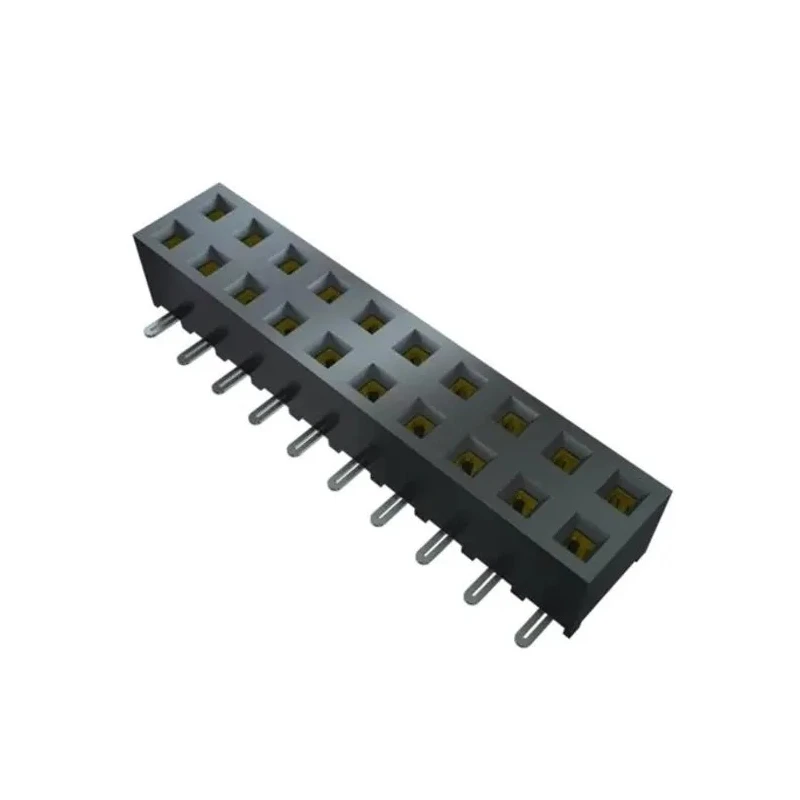

Samtec SMM Series Straight Surface Mount PCB Socket, 10-Contact, 2 Row, 2 mm Pitch, Board-to-Board SMM-105-02-L-D-K-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec SMM Series Straight Surface Mount PCB Socket, 10-Contact, 2 Row, 2 mm Pitch, Board-to-Board SMM-105-02-L-D-K-TR

Name: Samtec SMM Series Straight Surface Mount PCB Socket, 10-Contact, 2 Row, 2 mm Pitch, Board-to-Board SMM-105-02-L-D-K-TR
Brand: Samtec
SKU: 172178
Price: 4.46 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	350V
Brand	Samtec
Orientation	Straight
Current	3.2A
Model	SMM-105-02-L-D-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Beryllium Copper Alloy
Series	SMM
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Sub Type	Socket Strip
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Female
Connector System	Board-to-Board
Row Pitch	1.27mm

Key Features

Designed for board-to-board connector systems with reliable electrical performance.
Constructed with beryllium copper alloy contacts plated with selective gold for excellent conductivity.
Housing made from durable liquid crystal polymer for stability and insulation.
Supports currents up to 3.2 amperes and voltages up to 350 volts.
Operates effectively in temperatures ranging from -55°C to 125°C.
Surface mount termination and straight orientation ensure easy PCB integration.
Row pitch of 1.27 mm enhances compactness and signal integrity.
Comes packaged on tape and reel facilitating automated assembly processes.

Product Description

Samtec SMM Series Straight Surface Mount PCB Socket model SMM-105-02-L-D-K-TR features 10 contacts arranged in 2 rows, each with a 2 mm pitch tailored for board-to-board connections. It utilizes surface mount termination with a straight orientation suitable for compact PCB designs in industrial and electronic applications.

The socket's contacts are made from beryllium copper alloy, offering excellent conductivity and mechanical strength, while selective gold plating enhances contact reliability and resistance to corrosion. The housing is fabricated from liquid crystal polymer, providing strong insulation and thermal stability.

Designed to handle a current rating of 3.2 amperes and operating voltages up to 350 volts, this PCB socket supports a wide temperature range from -55°C minimum to 125°C maximum, making it robust for demanding environments in industrial, manufacturing, and electronic systems.

The SMM-105-02-L-D-K-TR comes with a row pitch of 1.27 mm and includes a polyimide film pick & place pad to assist precision automated assembly. The product is supplied on tape and reel packaging for efficient integration on SMT production lines.

This PCB socket is ideal for applications requiring reliable and durable board-to-board connectivity in electronic components, power & connectors sectors, including industrial controls, telecommunications, and consumer electronics.

High electrical performance with selective gold plated beryllium copper contacts. Durable liquid crystal polymer housing ensuring mechanical and thermal stability. Wide operational temperature range from -55°C to 125°C. Surface mount design compatible with automated PCB assembly processes.

Includes tape and reel packaging for streamlined manufacturing workflows.
