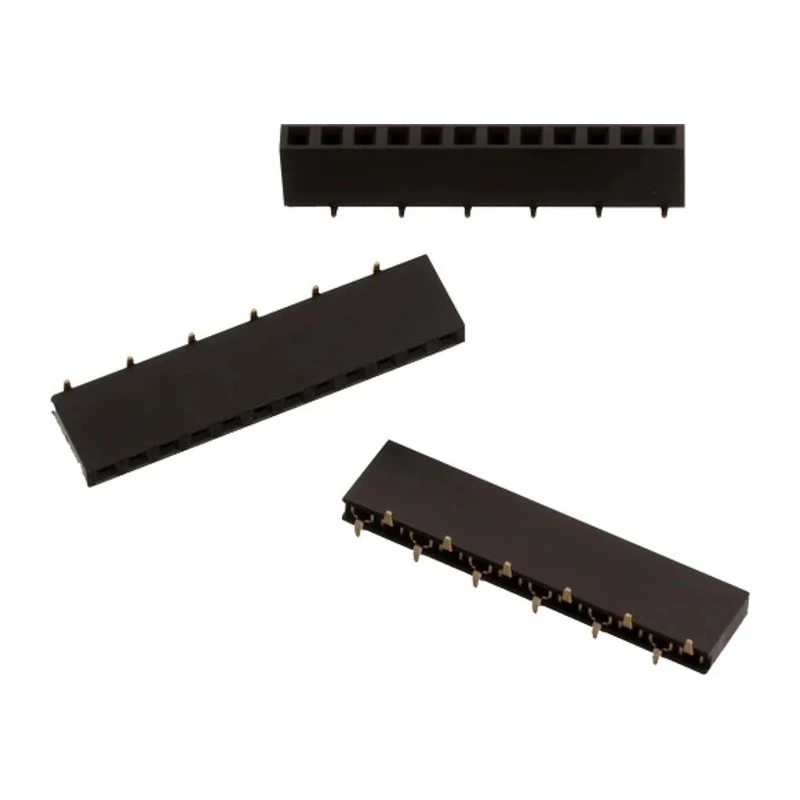

Wurth Elektronik WR-PHD Series Straight Surface PCB Socket 20-Contact 1 Row 2.54 mm Pitch 61002011921
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Durability | 25mating cycles |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Connector System | Board-to-Board |
Key Features
- The socket supports a maximum current rating of 3A.
- Constructed with copper alloy contacts plated in gold to ensure reliable connectivity.
- Suitable for board-to-board connector system applications.
- Durability lasts up to 25 mating cycles, ensuring long-term use.
- Complies with RoHS standards and is lead free.
- Insulator material is PA9T with UL94 V-0 flammability rating.
- Manufactured in Taiwan, Province Of China.
Product Description
Wurth Elektronik 61002011921 PCB Socket is a high-quality surface mount component designed for electronic and electrical applications requiring reliable board-to-board connections. This straight type socket features 20 contacts arranged in a single row with a precise 2.54 mm pitch ensuring compatibility with standard pin headers.
The contacts are made of copper alloy and plated with gold to optimize electrical conductivity and minimize corrosion, suitable for demanding industrial environments.
Its PA9T insulator material meets UL94 V-0 flammability standards, providing safety and durability in various operational settings. The socket operates efficiently in temperatures ranging from -40°C to 125°C and sustains a voltage rating of up to 500 V and a continuous current of 3 A, making it versatile for numerous board-to-board connector applications.
Designed to endure up to 25 mating cycles, the durability ensures long-lasting mechanical performance under frequent assembly and disassembly conditions. This component is lead free and RoHS compliant, aligning with environmental and safety regulations commonly required in electronics manufacturing.
The socket supports 20 contacts in a single row with a 2.54 mm pitch. Contact material is copper alloy with gold plating for enhanced conductivity. Rated voltage of 500 V and current capacity of 3 A. Operating temperature range from -40°C to 125°C.
Durable for 25 mating cycles to ensure longevity. PA9T insulator with UL94 V-0 flammability rating. Lead free and RoHS compliant. Manufactured in Taiwan, Province Of China.
This PCB socket is ideal for electronics assembly in industrial, manufacturing, and laboratory settings where secure and reliable electrical connections are critical. It is widely used in constructing and repairing printed circuit boards in various electronic devices.
Discover more electronic component solutions in our PCB Sockets category for your industry-specific requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a maximum current rating of 3A.
The voltage rating for this socket is up to 500V.
The contacts in this model are arranged with a pitch of 2.54 mm.
This socket features 20 contacts arranged in a single row.
The contacts are made of copper alloy and are plated with gold to enhance conductivity.
It operates efficiently in temperatures ranging from -40°C to 125°C.
This model is designed to endure up to 25 mating cycles, ensuring longevity in use.
This socket is designed for surface mounting.
The insulator material is PA9T with a UL94 V-0 flammability rating.
Yes, this socket is lead free and complies with RoHS standards.
This model is manufactured in Taiwan, Province Of China.
This socket supports a board-to-board connector system application.
