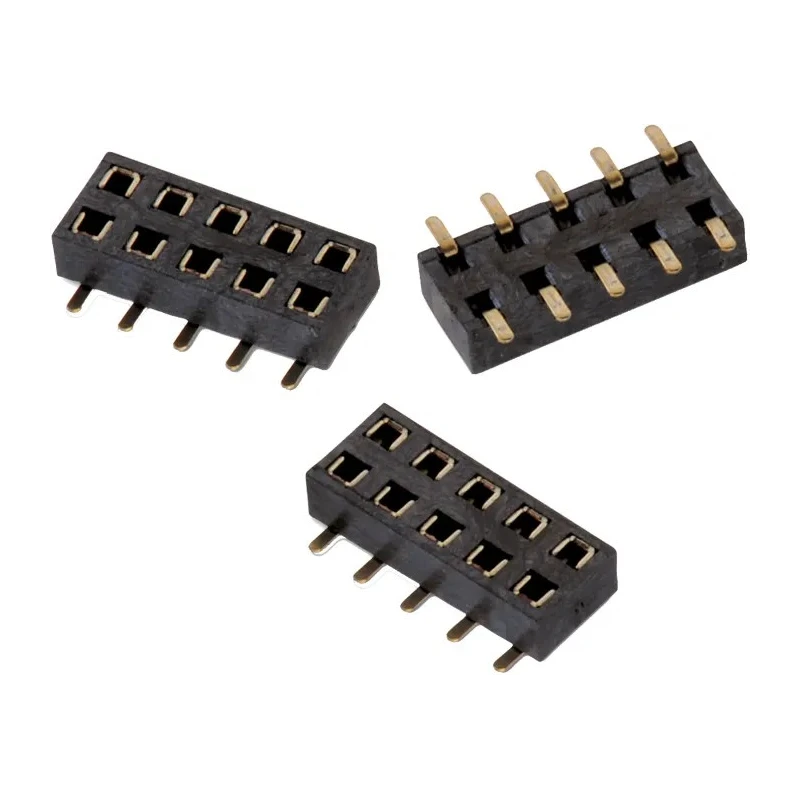

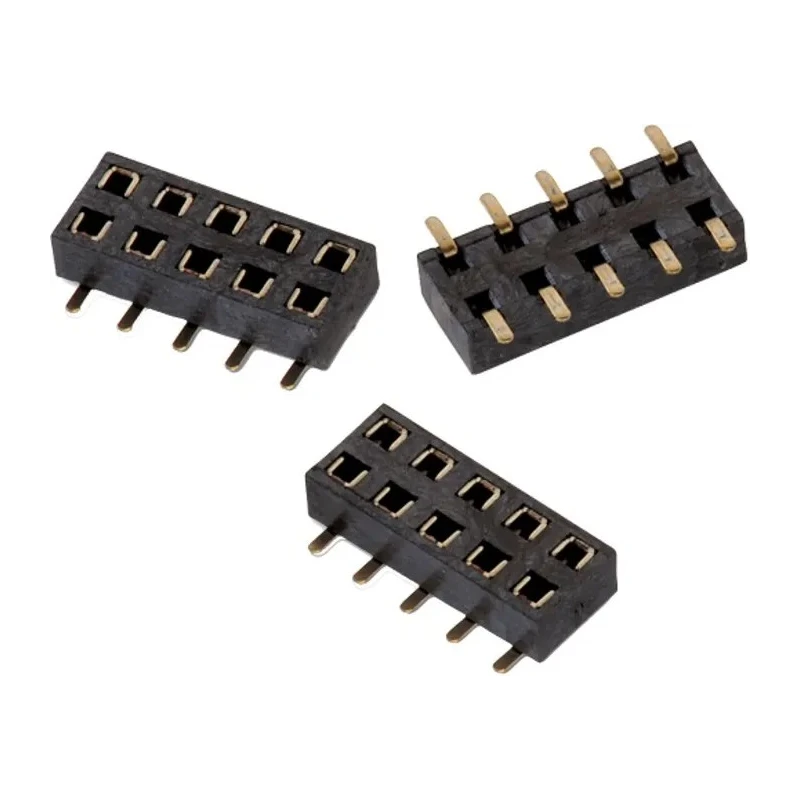

Wurth Elektronik WR-PHD Series Straight Surface PCB Socket 20-Contact 2 Row 2 mm Pitch 62102021821
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 200V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Surface |
| Housing Material | Polyamide 9T |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Standards/Approvals | Lead Free/RoHS, UL Approval E323964, UL94 V-0 |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
Key Features
- Constructed with polyamide 9T housing material for durability.
- Features copper alloy contacts with gold plating to ensure reliable connectivity.
- Supports a current rating of 2A and voltage of 200V.
- Suitable for operating temperatures from -40°C up to 105°C.
- Meets standards including RoHS compliance, UL Approval E323964, and UL94 V-0 rating.
- Designed for surface mount technology with a straight orientation.
- Offers excellent durability with 500 mating cycles capacity.
- Ideal for electronic component assemblies in industrial and commercial applications.
Product Description
Wurth Elektronik 62102021821 PCB Socket is a high-quality two-row straight surface mount socket designed for printed circuit boards with a 2 mm pitch. Constructed from polyamide 9T housing material, it provides a robust construction capable of withstanding challenging environments. The socket features 20 female contacts made from copper alloy, enhanced with gold plating to ensure superior electrical conductivity and corrosion resistance.
This PCB socket supports a current rating of 2A and operates at voltages up to 200V, making it suitable for various electronic applications. It can function reliably within a wide temperature range of -40°C to +105°C, accommodating both cold and hot operational conditions.
Certified for safety and reliability, it meets RoHS standards for hazardous substances limitation, holds UL Approval E323964, and complies with UL94 V-0 flammability rating, ensuring compliance with industrial regulations.
The socket is specifically engineered for surface mounting with a straight orientation to facilitate easy installation on PCBs. Its design accommodates 500 mating cycles, affirming its durability in repeated use scenarios commonly found in manufacturing and industrial environments.
Applications include use in industrial electronics, manufacturing equipment, communication devices, and commercial electronic assemblies requiring reliable connector solutions. Polyamide 9T housing material for durability and heat resistance.
Copper alloy female contacts with gold plating for reliable electrical connections. Supports 2A current and 200V voltage ratings suitable for various electronics. Wide operating temperature range from -40°C to +105°C. Compliance with RoHS, UL Approval E323964, and UL94 V-0 safety standards.
Surface mount type with straight orientation for easy PCB integration. Designed for 20-contact, 2-row configuration with 2 mm pitch. Compatible with up to 500 mating cycles ensuring long life. Explore more Wurth Elektronik components and PCB Socket options for your projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB socket is 200V.
This model supports a current rating of 2A.
It operates reliably within a temperature range of -40°C to +105°C.
The WR-PHD Series socket features 20 female contacts.
The housing is constructed from polyamide 9T material, providing durability and heat resistance.
The contacts are made from copper alloy and are plated with gold for reliable electrical conductivity.
It meets RoHS standards, holds UL Approval E323964, and complies with the UL94 V-0 flammability rating.
This socket is designed for surface mount technology with a straight orientation.
It is designed to accommodate up to 500 mating cycles, ensuring durability in repeated use scenarios.
The pitch of this PCB socket is 2 mm.
This socket is ideal for electronic component assemblies in industrial electronics, manufacturing equipment, and commercial devices.
The contacts in this socket are arranged in a straight orientation.
