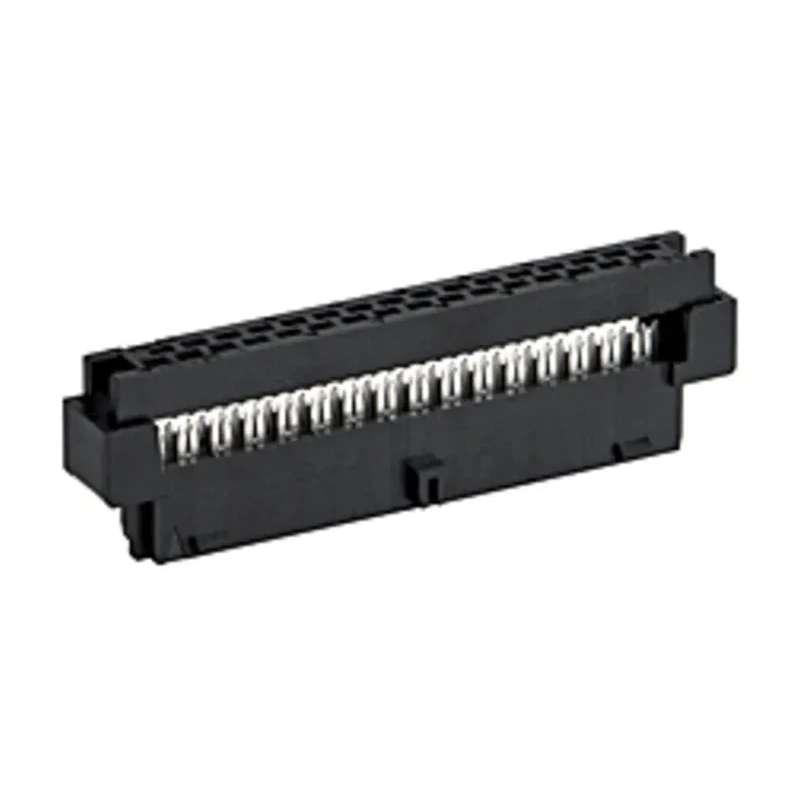

Molex 26-Way IDC Connector Female for Surface Mount, 2 Row, Gold Plated Contacts 87568-2693
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V ac |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Polyester |
| Contact Material | Copper |
| Series | Milli-Grid |
| Termination Type | IDC |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- This IDC connector features 26 contacts arranged in 2 rows suitable for cable-to-board applications.
- Gold plating on contacts ensures reliable electrical connections and corrosion resistance.
- Designed for surface mount installation with a pitch of 2 mm and a current rating of 1 Amp.
- Constructed with copper contacts and polyester housing providing durability and electrical insulation.
- Operates reliably in a temperature range from -20°C to 85°C.
- Features a straight orientation and unshrouded design for easy access and connectivity.
- Compliance with RoHS standards indicating lead-free materials and environmental compliance.
Product Description
Molex 87568-2693 IDC Connector is a 26-way female connector designed for surface mount applications. It features two rows of contacts, supporting a pitch of 2 mm and is rated at 1 Amp current and 125V AC voltage, making it suitable for various electronic and electrical circuit assemblies.
The contacts are gold plated with a thickness of 0.38 μm to enhance conductivity and prevent corrosion, while the copper contact material ensures good electrical performance. The connector housing is made of polyester, providing excellent insulation and mechanical strength.
This connector supports IDC termination type allowing quick and reliable cable-to-board connection. Its design includes center polarization key and locking friction ramp for secure mating and prevention of misalignment during assembly.
Operating temperature ranges from -20°C to 85°C, suitable for demanding industrial and commercial electronic applications. The connector is unshrouded with a straight orientation for straightforward cable attachment and maintenance access.
Typical applications include electronic equipment manufacturing, power connectors, circuit board assemblies, and a variety of surface mount connector requirements in industrial, laboratory, and manufacturing sectors.
The connector complies with RoHS directives, ensuring environmentally safe materials and manufacturing processes. This IDC Connector features 26 contacts arranged in 2 rows suitable for cable-to-board applications. Gold plating on contacts ensures reliable electrical connections and corrosion resistance.
Designed for surface mount installation with a pitch of 2 mm and a current rating of 1 Amp. Constructed with copper contacts and polyester housing providing durability and electrical insulation. Operates reliably in a temperature range from -20°C to 85°C.
Features a straight orientation and unshrouded design for easy access and connectivity. Compliance with RoHS standards indicating lead-free materials and environmental compliance. Explore the Molex connector range on EnvMart for high-quality, reliable electronic components suited for a wide range of industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IDC connector has a current rating of 1 Amp.
This model is rated for 125V AC voltage.
The contacts are arranged with a pitch of 2 mm.
It features copper contacts and a polyester housing, providing electrical insulation and mechanical strength.
It operates reliably within a temperature range of -20°C to 85°C.
This connector has 26 contacts arranged in 2 rows.
Yes, it is specifically designed for surface mount installation.
It utilizes IDC (Insulation Displacement Connector) termination for cable-to-board connections.
Yes, it complies with RoHS standards, indicating it is made from lead-free materials.
The connector features a straight orientation, allowing for straightforward cable attachment.
It is suitable for various electronic equipment manufacturing, power connectors, and circuit board assemblies.
This IDC connector is a female connector.
