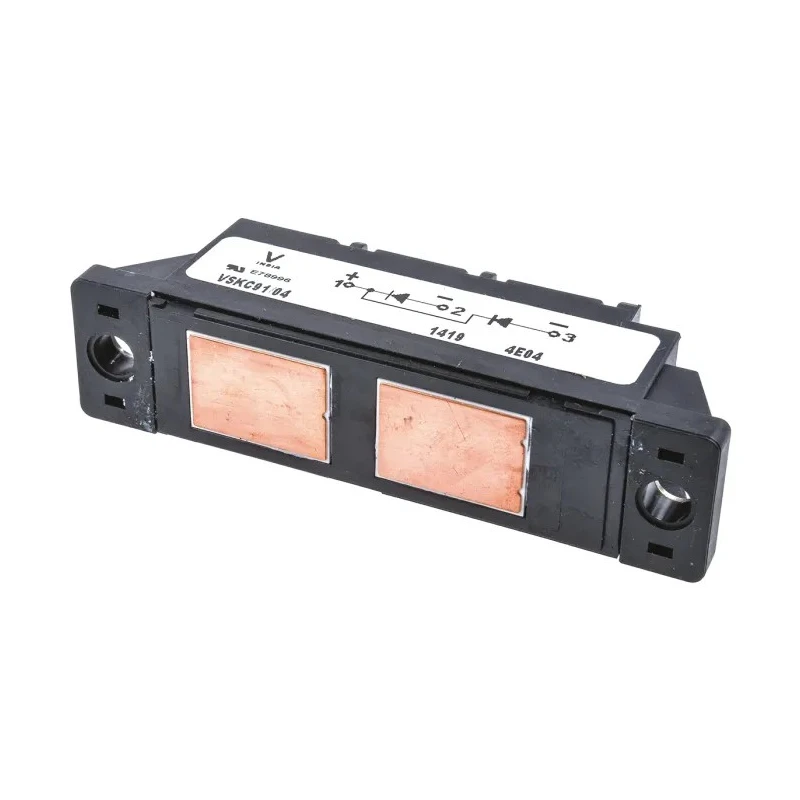

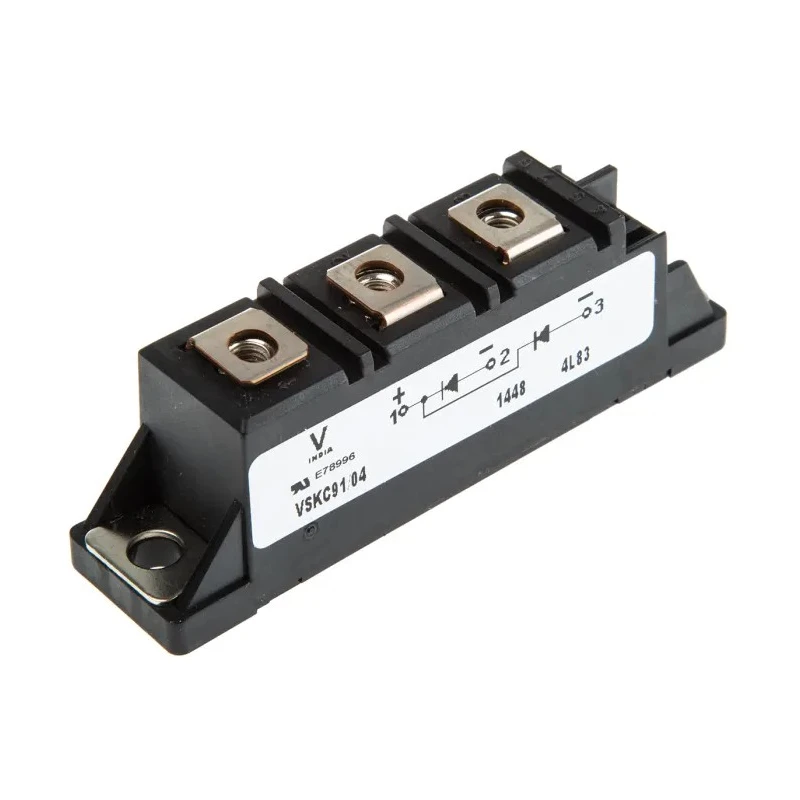

Vishay Recovery Diode 400 V 100 A 3-Pin TO-240 VS-VSKC91/04
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 35mm |
| Length | 92mm |
| Model | VS-VSKC91/04 |
| Width | 22.6mm |
| Mount Type | Panel |
| Series | VS-VSKC91 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-240 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 100A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Recovery |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2.1kA |
| Maximum Forward Voltage Vf | 1.55V |
Key Features
- Designed for standard recovery rectifier applications.
- Common cathode diode configuration enhances circuit efficiency.
- Peak forward surge current rated at 2.1 kA for high transient robustness.
- Operating temperature range from -40°C to 150°C suits harsh industrial environments.
- Maximum forward voltage of 1.55 V ensures low power dissipation.
- Peak reverse current limited to 10 mA for improved reliability.
- Manufactured in India with high quality and durability standards.
Product Description
Vishay VS-VSKC91/04 is a high-performance standard recovery diode designed to handle a continuous forward current of 100 A and a peak reverse repetitive voltage of 400 V. This diode is packaged in a rugged 3-pin TO-240 panel mount style, suitable for various industrial and electronic power applications.
The diode configuration is a common cathode setup which provides reliable switching performance. It supports a peak non-repetitive forward surge current of 2.1 kA, making it suitable for absorbing high surge conditions commonly encountered in power rectification and conversion systems.
The device operates over a broad temperature range, from -40°C to 150°C, ensuring durability and consistent performance in demanding environments such as industrial power supplies, motor drives, and power rectifiers. Its maximum forward voltage drop of 1.55 V contributes to efficient power management and reduced energy losses.
Compact mechanical dimensions (92 mm length, 22.6 mm width, 35 mm height) make it convenient for mounting in various power electronic assemblies. Additionally, the diode exhibits a low peak reverse current of 10 mA to increase device longevity under high voltage stress.
Standard recovery rectifier with robust 100 A forward current rating. High surge current withstand capability of 2.1 kA supports transient protection. Wide operating temperature range (-40°C to 150°C) for industrial reliability.
Low forward voltage of 1.55 V minimizes conduction losses. Compact TO-240 package for panel mount applications. Peak reverse current limited to 10 mA for enhanced lifetime. Common cathode diode configuration suitable for versatile circuit designs.
Manufactured in India following stringent industrial quality standards.
This recovery diode is ideal for use in industrial, electronic components manufacturing, power conversion, and other high-current semiconductor applications. It provides a reliable and efficient solution for power rectification tasks and complements Vishay's extensive semiconductor product portfolio.
Explore Vishay recovery diodes and other semiconductor components in EnvMart's Electronics & Electricals category for trusted industrial-grade parts.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 100 A.
The peak reverse repetitive voltage for this diode is 400 V.
This recovery diode operates over a temperature range from -40°C to 150°C.
The peak non-repetitive forward surge current rating is 2.1 kA.
The diode is configured as a common cathode, enhancing its circuit efficiency.
The maximum forward voltage drop is 1.55 V, which helps in minimizing power dissipation.
The dimensions of the TO-240 package are 92 mm in length, 22.6 mm in width, and 35 mm in height.
The peak reverse current is limited to 10 mA, which improves reliability.
This diode supports panel mounting, suitable for various electronic power applications.
This diode is manufactured in India, adhering to high quality and durability standards.
It is suitable for industrial power supplies, motor drives, and power rectifiers, among other high-current semiconductor applications.
This diode belongs to the VS-VSKC91 series.
