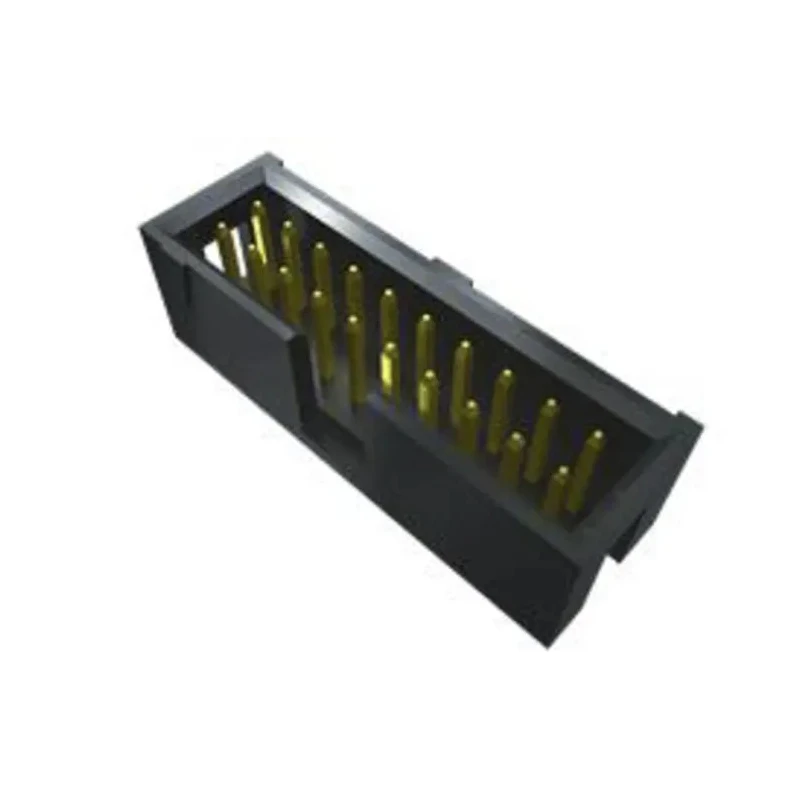

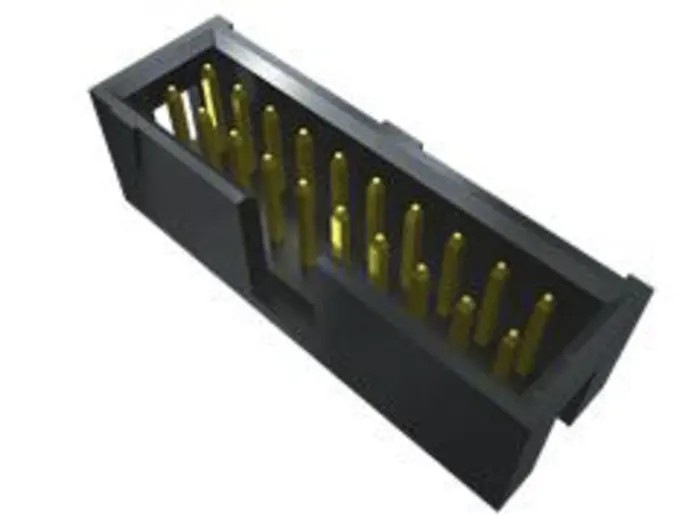

Samtec HTSS Series Straight Surface PCB Header 20 Contacts 2.54 mm Pitch 2 Row Shrouded HTSS-110-01-T-DV

Samtec HTSS-110-01-T-DV is a high-quality straight surface PCB header designed for precise and reliable board-to-board connectivity in industrial, electronic, and manufacturing applications.

This PCB header features a 2-row layout with 20 contacts spaced at a 2.54 mm pitch, encased in robust polyamide housing material known for its electrical insulation and mechanical strength.

The contacts are made from phosphor bronze with tin plating to ensure optimal conductivity and long-lasting corrosion resistance. The shrouded construction provides safety and ease of use, particularly in blind mating scenarios where visual alignment is limited.

It supports through-hole and surface mount termination types, facilitating efficient PCB assembly. Its voltage rating of 1kV and operating temperature range from -55°C up to 105°C make it suitable for demanding electronic environments including industrial controls, communication devices, and instrumentation.

The contact system employs a .025" (0.635 mm) square post design with male contact gender, arranged in a vertical orientation to suit diverse board configurations. Constructed with durable polyamide housing for electrical insulation.

Phosphor bronze contacts plated with tin for electrical reliability. Shrouded design supports safe blind mate connections. Wide operating temperature range from -55°C to 105°C. Supports through-hole and surface mount termination methods.

1kV rated for dependable voltage tolerance. .025" (0.635 mm) square post contact system. Vertical orientation with male contacts. This PCB Header is ideal for industrial automation, electronic manufacturing, instrumentation, and repair applications where secure, reliable connections are critical.
