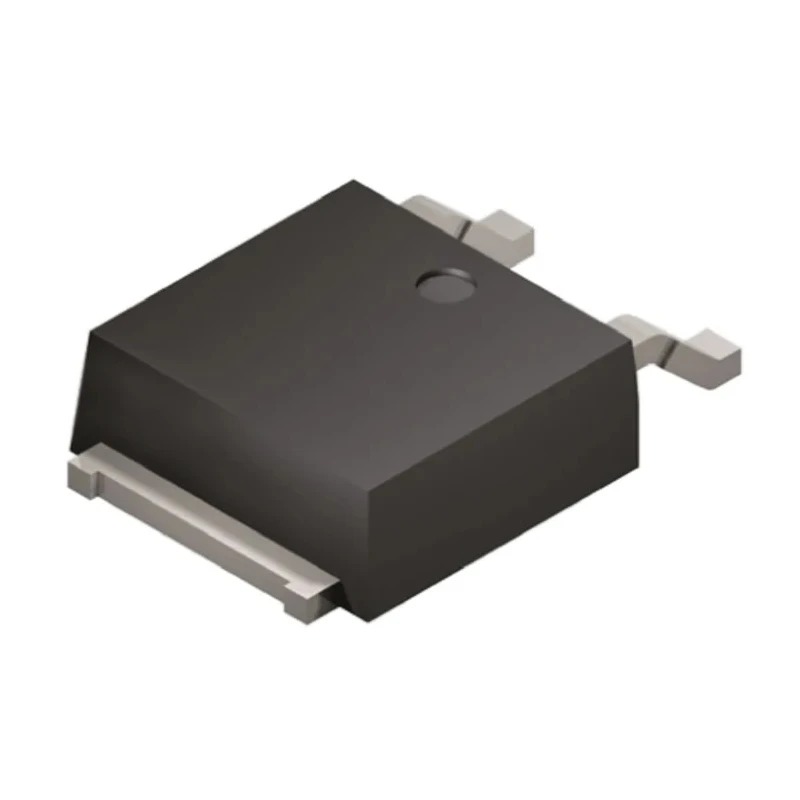

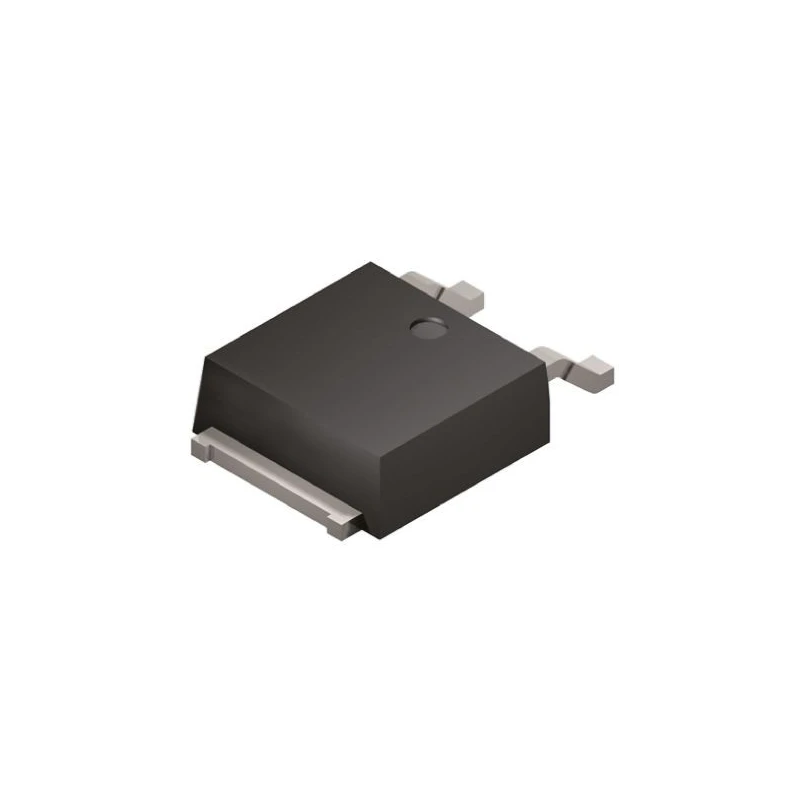

Vishay Schottky Diode 40 V 12 A 3-Pin DPAK Surface Mount Diode VS-12CWQ04FN-M3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 6.35mm |
| Brand | Vishay |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | VS-12CWQ04FN-M3 |
| Width | 6.22mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 550A |
| Maximum Forward Voltage Vf | 0.68V |
| Vishay 40V 12A, Dual Schottky Diode, 3-Pin D-PAK VS-12CWQ04FNPBFBrand | Vishay |
Key Features
- Low forward voltage drop of 0.68V enhances efficiency.
- Fast switching speed suitable for high frequency applications.
- Wide operating temperature range from -55°C to 150°C ensures reliability.
- Robust peak non-repetitive forward surge current capability of 550A.
- Compact TO-252 (DPAK) package with length 6.73mm, width 6.22mm, and height 2.39mm.
- Common cathode diode configuration simplifies circuit design.
- Peak reverse current rated at 3mA reduces leakage losses.
- No automotive or industry standards approvals applicable.
Product Description
Vishay VS-12CWQ04FN-M3 is a high-performance Schottky diode engineered for applications requiring fast switching and low forward voltage drop. It supports a maximum continuous forward current of 12A and withstands peak reverse voltages up to 40V. Its 3-pin DPAK surface mount TO-252 package offers compact size with precise dimensions (length 6.73mm, width 6.22mm, height 2.39mm), making it ideal for space-constrained power and electronic circuit designs.
The diode features a common cathode rectifier type and exhibits a maximum forward voltage drop of 0.68V, which reduces power dissipation and enhances efficiency. It can operate reliably across a wide temperature range from -55°C minimum to 150°C maximum. The device is capable of handling peak non-repetitive forward surge currents of up to 550A, ensuring robustness under transient conditions.
This Schottky diode does not carry specific automotive certifications, but it is widely suitable for industrial, power supply, and semiconductor circuitry applications requiring rapid switching and low power loss. Its low peak reverse current of 3mA helps minimize leakage currents in sensitive electronic environments.
Low forward voltage drop reduces power loss and improves efficiency. Fast reverse recovery time supports high-frequency switching. Wide operating temperature range for harsh environmental conditions. Compact surface-mount TO-252 (DPAK) package for automated assembly.
High surge current capability ensures reliability in transient events. Common cathode configuration facilitates typical power circuit designs. Minimal leakage current with low peak reverse current. Ideal for electronic components in industrial, power & connectors, and semiconductor sectors.
Explore our extensive range of semiconductor components to find compatible products including Schottky diodes and rectifiers from Vishay and other leading manufacturers at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay VS-12CWQ04FN-M3 is 12A.
This model can withstand peak reverse voltages up to 40V.
The maximum forward voltage drop for this diode is 0.68V.
The diode comes in a TO-252 (DPAK) package with dimensions of 6.73mm in length, 6.22mm in width, and 2.39mm in height.
It operates reliably within a temperature range from -55°C to 150°C.
This model can handle peak non-repetitive forward surge currents of up to 550A.
The diode features a common cathode configuration.
The peak reverse current is rated at 3mA.
This Schottky diode is suitable for industrial, power supply, and semiconductor circuitry applications requiring fast switching and low power loss.
This diode has a pin count of 3.
The low forward voltage drop of 0.68V helps reduce power dissipation, enhancing efficiency in electronic circuits.
The country of origin for this diode is India.
