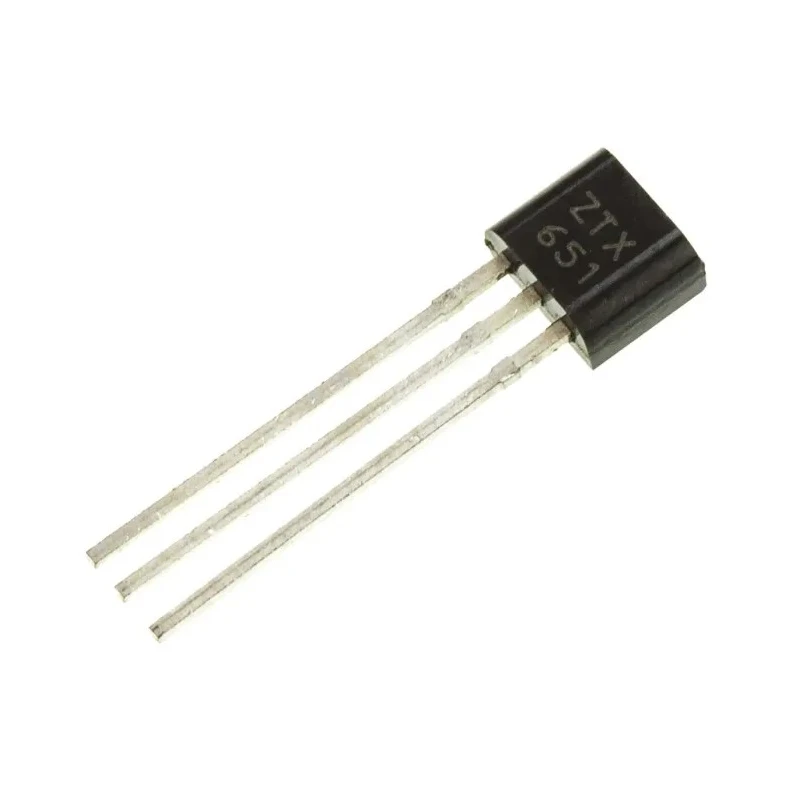

DiodesZetex NPN Transistor 2 A 60 V 3-Pin E-Line Through Hole ZTX651

DiodesZetex ZTX651 is a high-performance NPN bipolar transistor designed for general-purpose semiconductor applications. It supports a maximum DC collector current of 2 A and a maximum collector-emitter voltage of 60 V, making it suitable for low to medium power electronic circuits.

The transistor comes in a 3-pin E-line package with through-hole mount style, facilitating ease of installation in printed circuit boards. Its compact dimensions of 17.98 mm height, 4.77 mm length, and 2.41 mm width allow for use in dense circuit arrangements.

With a maximum transition frequency of 175 MHz and a power dissipation capacity of 1 watt, the ZTX651 transistor offers reliable high-speed switching performance while maintaining thermal stability. The minimum DC current gain (hFE) of 40 supports effective amplification in various electronic designs.

Rated for operation in extreme conditions, this transistor endures temperatures ranging from -55°C to 200°C, and it complies with the automotive-grade standard AEC-Q101, ensuring enhanced reliability in automotive and industrial control systems.

This device finds extensive application across industrial automation, power management, and electronic signal amplification tasks as a versatile discrete semiconductor component. Maximum DC collector current of 2 amperes provides robust performance.

Maximum collector-emitter voltage rating is 60 volts for reliable operation. 3-pin E-line package with through-hole mounting format. High transition frequency of 175 MHz supports high-speed switching. Maximum power dissipation capability of 1 watt ensures thermal stability.

Wide operating temperature range from -55°C to 200°C for harsh environments. Automotive-grade compliance with AEC-Q101 standard. Compact dimensions: 17.98 mm height, 4.77 mm length, and 2.41 mm width. Transistor gain (hFE) minimum of 40 enables efficient amplification.

Minimum emitter-base voltage rating of 5 V prevents premature breakdown.

For engineers and designers seeking a reliable and robust bipolar transistor, the DiodesZetex ZTX651 offers excellent electrical characteristics and industry-standard packaging. Browse our broad selection of semiconductors at EnvMart for complementary components used in power and signal control applications.
