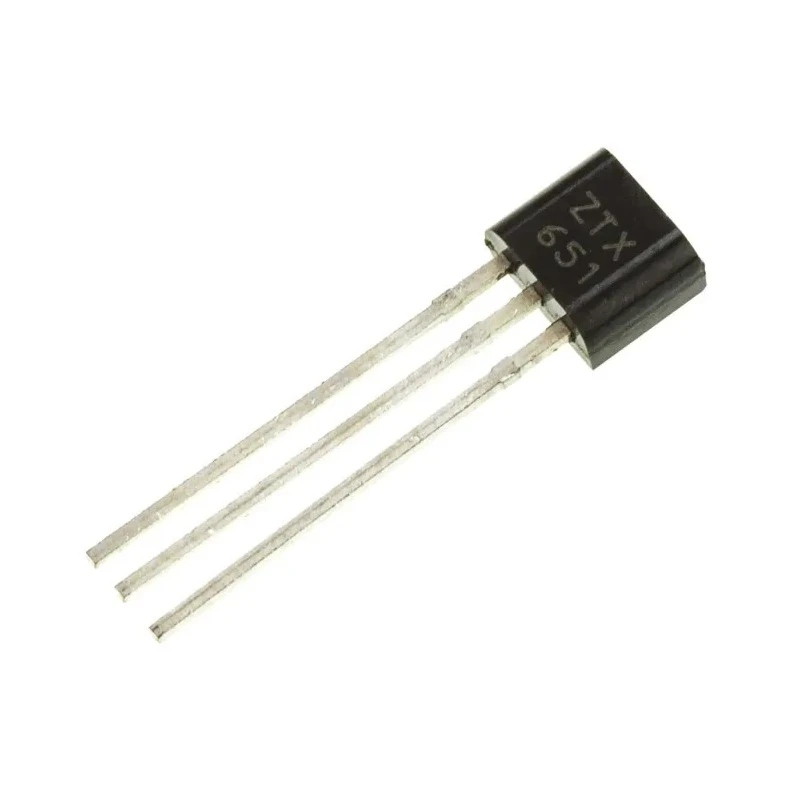

DiodesZetex 2 A NPN 60 V 3-Pin E-Line Transistor ZTX651

DiodesZetex ZTX651 is a high-performance, general-purpose NPN bipolar transistor designed for electronic circuit applications requiring up to 2 A collector current and a collector-emitter voltage of 60 V. It is housed in a through-hole E-Line package with a compact 3-pin E configuration, facilitating easy mounting on printed circuit boards.

This transistor supports high-frequency operation with a maximum transition frequency of 175 MHz, making it suitable for amplification and switching in RF and audio circuits. The maximum power dissipation rating of 1 watt ensures stability under typical operating conditions.

Operating temperature ranges from -55°C to +200°C, allowing use in demanding industrial and automotive environments. It carries the AEC-Q101 automotive standard certification, ensuring compliance with automotive quality and reliability requirements.

The physical dimensions of 4.77 mm length, 2.41 mm width, and 17.98 mm height provide a compact footprint to save circuit board space. The transistor polarity is NPN with a single transistor configuration suited to amplification and switching circuits.

Rated for a maximum collector emitter voltage of 60 volts. Maximum DC collector current capacity of 2 amperes. Features through-hole mount with E-Line package type. NPN transistor polarity suitable for amplification and switching.

Supports high-frequency applications up to 175 MHz transition frequency. Maximum power dissipation is 1 watt. Operating temperature range from -55°C to 200°C. Automotive standard AEC-Q101 certified. Compact 3-pin E-Line package.

This transistor is ideal for use in industrial electronics, automotive systems, consumer electronics, and communications equipment requiring reliable switching and amplification performance. Its robust construction and thermal ratings ensure stable operation under diverse environmental conditions.
