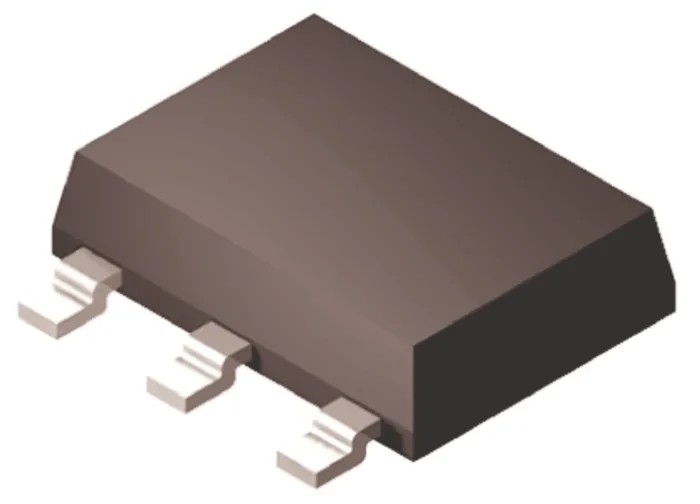

DiodesZetex 3 A NPN Transistor, 20 V, 4-Pin SOT-223, Darlington Configuration, Surface Mount FZT689BTA

DiodesZetex FZT689BTA is a high-performance NPN bipolar junction transistor designed primarily for surface mount technology applications. It features a Darlington transistor configuration, providing high current gain and efficient switching capabilities. The device supports a maximum DC collector current of 3 amperes and can operate with a maximum collector-emitter voltage of 20 volts. Packaged in a 4-pin SOT-223 case, it offers compact size with dimensions of 6.55 mm length, 7.1 mm width, and 1.65 mm height, which enables effective PCB real estate management.

The transistor guarantees operation across an extended temperature range from -55°C to 150°C, making it suitable for automotive and industrial environments. It also meets the stringent AEC-Q101 automotive standard, ensuring reliability and quality for use in automotive electronic systems.

This device is particularly useful in power amplification, switching, and electronic control circuits requiring consistent performance and durability. Its maximum power dissipation of 3 watts allows the transistor to handle significant power loads without compromising on longevity.

This transistor features a Darlington configuration for high current gain. Equipped with a 4-pin SOT-223 package allowing efficient surface mounting. Ensures maximum power dissipation of 3 watts to support robust operation.

Operates within a temperature range from -55°C to 150°C providing reliable performance in harsh environments. Minimum DC current gain (hFE) of 150 ensures efficient amplification. Complies with automotive standard AEC-Q101 for quality assurance in automotive applications.

Compact dimensions with length 6.55 mm, width 7.1 mm, and height 1.65 mm facilitating space-saving PCB designs. Offers a maximum collector-base voltage and collector-emitter voltage of 20 V and maximum emitter-base voltage of 5 V.

Ideal for industrial, automotive, and electronic equipment applications where high switching speed and efficiency are needed.

This transistor is widely used in electronic and electrical components manufacturing, automotive electronics, and industrial equipment, where reliable, compact, and efficient bipolar transistors are essential.
