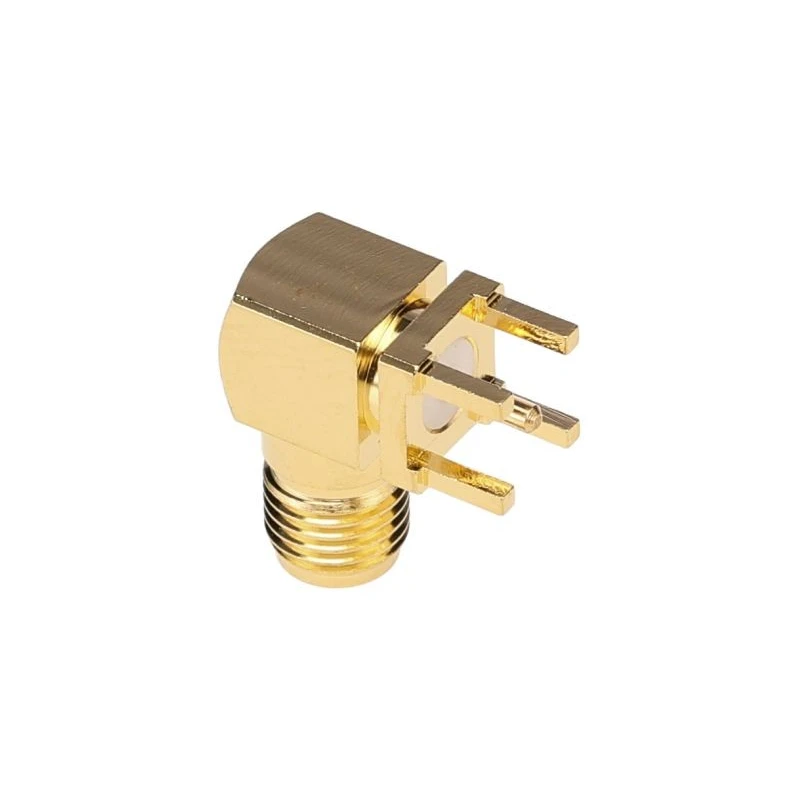

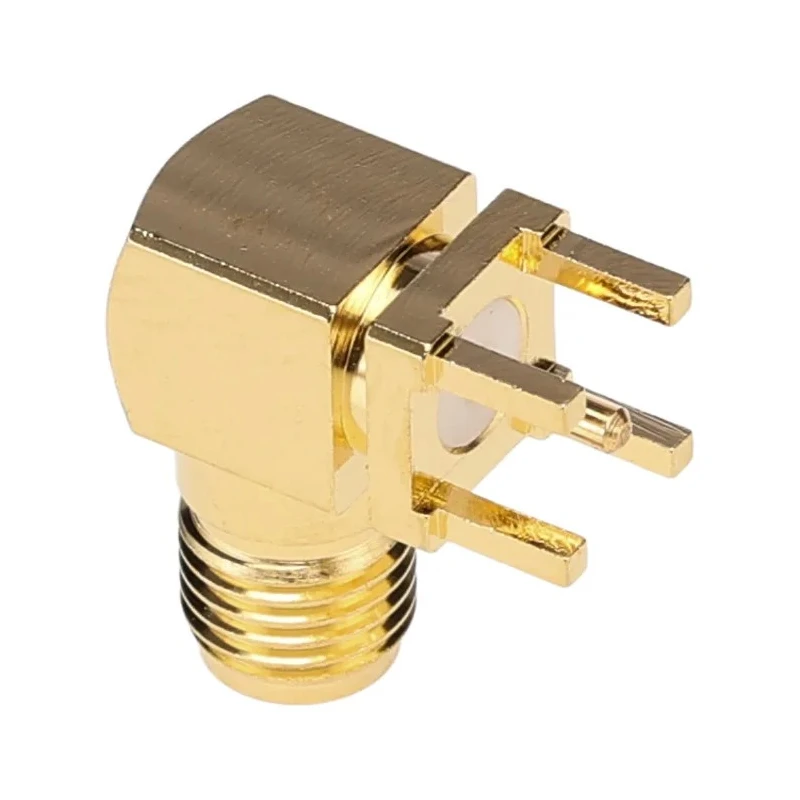

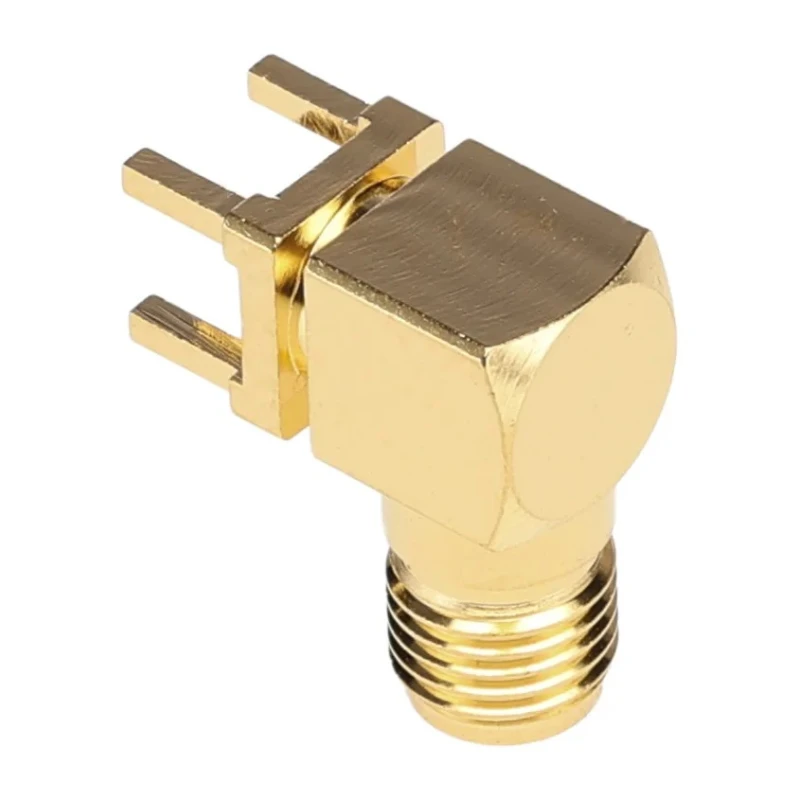

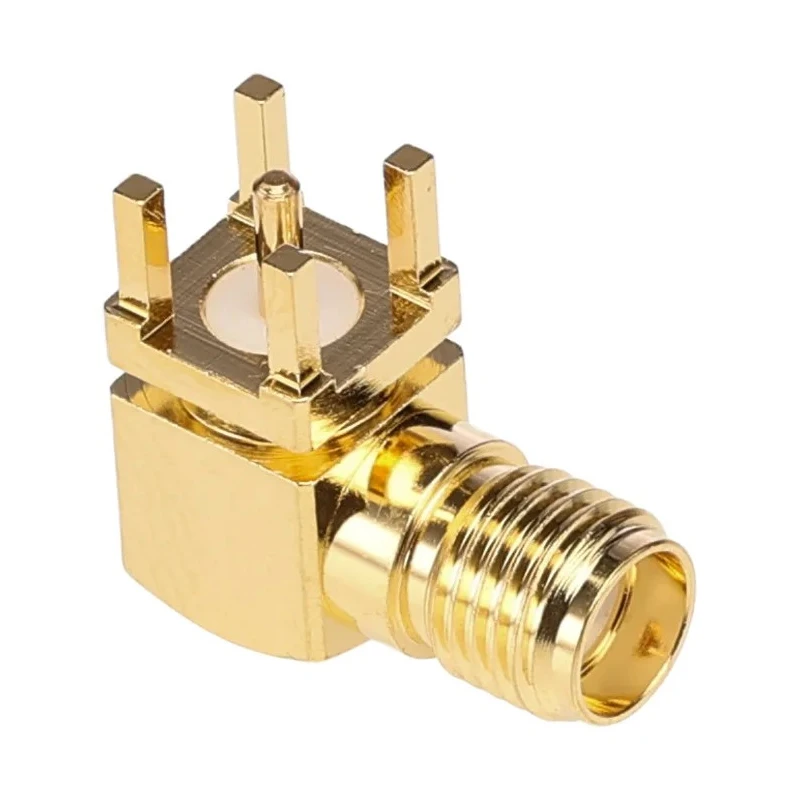

Samtec SMA Series Coaxial Connector PCB Mount Female SMA 50 Ω Right Angle Gold Plated Contacts SMA-J-P-H-RA-TH1

Samtec SMA-J-P-H-RA-TH1 is a high-quality SMA Series Coaxial Connector designed for PCB mounting applications. It features a female SMA connector with a right angle body for convenient installation on printed circuit boards. The connector is constructed with beryllium copper contacts plated in gold to ensure optimal electrical conductivity and durability under demanding conditions.

This connector maintains a consistent impedance of 50 Ω and supports operating frequencies up to 20 GHz, making it suitable for a broad range of high-frequency communication systems including RF and wireless networking devices. Its solder termination type facilitates easy and reliable PCB assembly.

Built to withstand extreme temperature conditions ranging from -65°C to 125°C, the SMA-J-P-H-RA-TH1 ensures stable connectivity in harsh environments. The threaded mating mechanism ensures secure connections even in applications subjected to vibration or movement.

This product is ideal for electronic, industrial, and telecommunications applications requiring high performance coaxial connections mounted directly to PCBs. Female SMA connector with gold-plated contacts for reliable signal transmission.

Right angle body orientation enables convenient PCB mounting. Beryllium copper contact material ensures durability and performance. Impedance of 50 Ω suitable for high frequency up to 20 GHz. Solder termination type allows for secure attachment to PCB.

Operating temperature range from -65°C to 125°C for extreme environment use. Threaded mating type provides secure and stable connection. Standard size design compatible with common coaxial components.

This connector is commonly used in industrial, telecommunications, and laboratory applications where reliable high-frequency board-level coaxial connections are essential. For more options, browse other Samtec Coaxial Connectors and PCB mount components on EnvMart.
