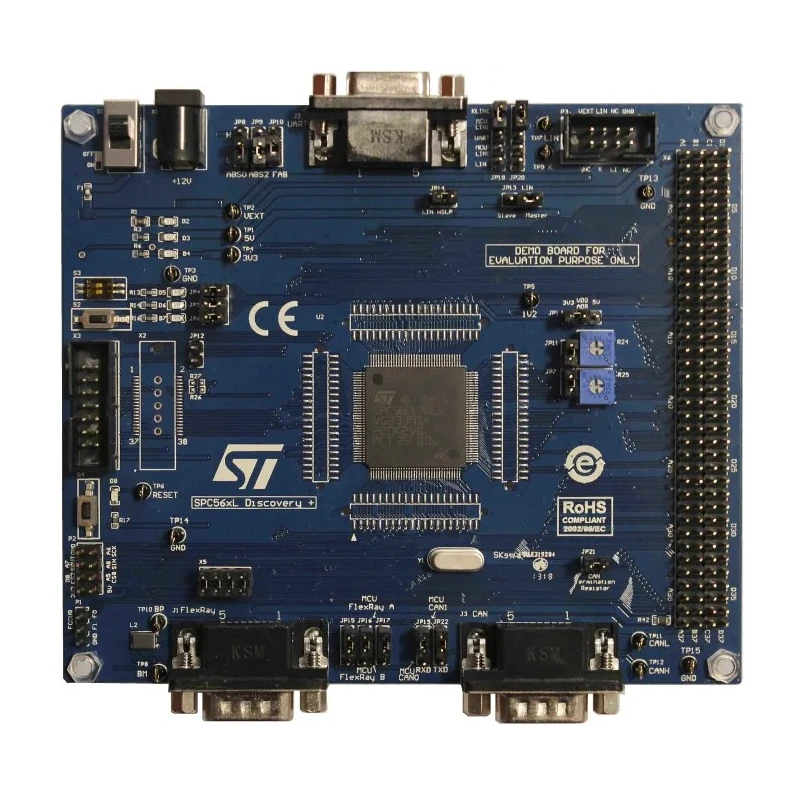

STMicroelectronics Discovery MCU Evaluation Board SPC56EL70L5DISP

STMicroelectronics SPC56EL70L5DISP Discovery MCU Evaluation Board is a new evaluation platform designed for microcontroller development targeting industrial, automotive, and embedded applications requiring multiple communication interfaces and real-time processing.

This evaluation board includes a single 12 VDC external power supply input and provides a JTAG interface with a 7 x 2 male 100 mil connector to facilitate program debugging and development workflows.

It features two FlexRay communication channels equipped with jumper enable and DB9 male connectors, enabling robust automotive communication protocol evaluation.

Additionally, the board supports two CAN channels and two hardware-configurable LIN interfaces, broadening its compatibility with automotive and industrial network standards. The inclusion of a K-Line interface further enhances its automotive diagnostics capability.

Two potentiometers allow for analog voltage inputs to be tested, and three onboard user LEDs serve as visual indicators to assist in debugging and status monitoring.

Free ready-to-run application firmware examples can be accessed through www.st.com/SPC56Ldiscovery and the SPC5Studio development environment, facilitating rapid prototyping and evaluation.

This evaluation board is ideal for embedded system developers, automotive engineers, and those working in industrial automation requiring sophisticated MCU development tools. Includes single 12 VDC external power supply input.

JTAG interface with 7 x 2 male 100 mil connector for debugging. Two FlexRay channels with jumper enable and DB9 connectors. Two CAN channels and two hardware-configurable LIN interfaces. K-Line interface for automotive diagnostics.

Two potentiometers for analog voltage input. Three user LEDs for status indication. Explore more microcontroller development tools on EnvMart for similar Evaluation Boards and accessories.
