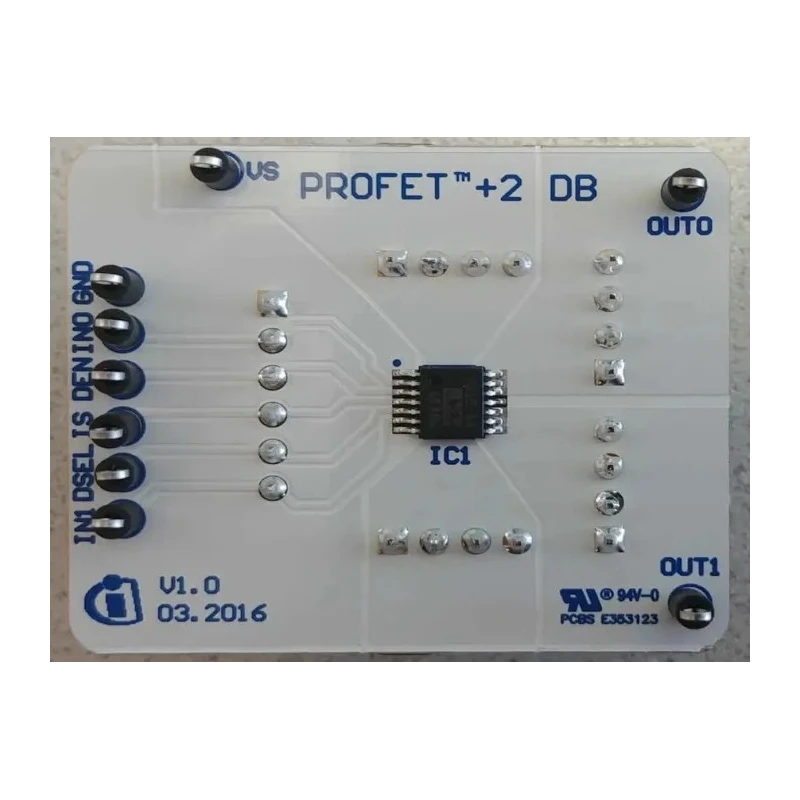

Infineon Evaluation Board BTS7080-2EPA DAUGH BRD for Automotive High-Side Switch BTS7080-2EPA

The Infineon BTS7080-2EPA DAUGH BRD Evaluation Board is specifically engineered for automotive use, incorporating one high-side switch device BTS7080-2EPA. This board is compatible with the PROFET™+2 12V motherboard, enabling robust power management and protection functionalities. Its design caters to quick laboratory evaluations, providing customers an efficient pick and place solution for development and testing.

The evaluation board offers comprehensive protection features including protection against current tripping, over-temperature conditions, and overvoltage scenarios. It also includes diagnostic capabilities through the load current sense output which allows live monitoring and fault detection.

Designed for maximum versatility, this evaluation board allows optimized design flexibility across the device family thanks to pin-to-pin compatibility and support for external components. The miniaturized footprint further aids in saving valuable space in automotive electronic designs.

This product is suitable for power management development in automotive electronics, laboratory testing, industrial prototyping, and automotive control module evaluation to improve development cycles and system reliability.

Provides quick pick and place solution for laboratory evaluations. Includes 1 high-side switch BTS7080-2EPA compatible with PROFET™+2 12V motherboard. Offers current tripping, over-temperature, and overvoltage protection.

Includes load diagnosis via load current sense output. Optimized for design flexibility with pin-to-pin and external component compatibility. Miniaturized design to save space in applications.
