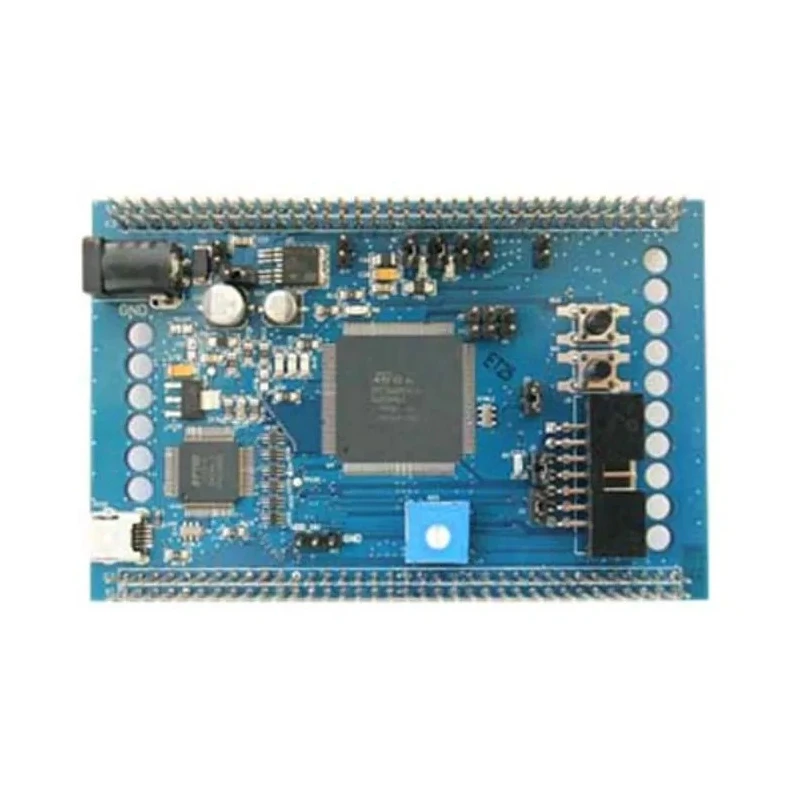

STMicroelectronics Discovery MCU Evaluation Board SPC560B-DIS 48MHz 768KB ECC Flash, 64KB ECC SRAM, e200z0h MCU

STMicroelectronics SPC560B-DIS Discovery MCU Evaluation Board is a versatile development kit featuring the 48MHz SPC560B54L5 32-bit e200z0h microcontroller core with 768KB program ECC Flash memory and 64KB ECC SRAM, tailored for automotive and industrial safety applications.

The board includes an on-board USB-JTAG PLS debugger, allowing seamless debugging and programming, with an option to use stand-alone JTAG debuggers via hardware selection.

Power management is handled by an L5300AH7 +5V DC regulator, supporting both an external +12V DC input via barrel jack or a +5V line from USB power, ensuring flexible power supply options.

User interface components include power-on and reset LEDs, three PLS debugger LEDs, two user LEDs, reset and user pushbuttons, and a user potentiometer for ADC inputs to facilitate hardware interaction and testing.

Connectivity is robust, featuring four 36-pin extension headers granting access to all MCU pins, along with two 7-pin JTAG connectors, enhancing development capabilities. The compact form factor of 100 x 55mm allows the board to fit various prototyping environments and industrial setups effectively.

This MCU evaluation board is ideal for engineers and developers engaged in automotive electronics, industrial control, and safety-oriented embedded system design, offering advanced debugging and hardware access features.

Designed for automotive and industrial embedded system development. Comes with perpetual code-limited (128KB) PLS debug software license. Multiple user LEDs and pushbuttons for interaction. Supports flexible power supply options via USB or barrel jack.

Extensive connectivity through extension headers and JTAG connectors. Compact and robust design for varied development environments. Explore a wide range of microcontroller development tools and Evaluation Boards on EnvMart to support your project needs.
