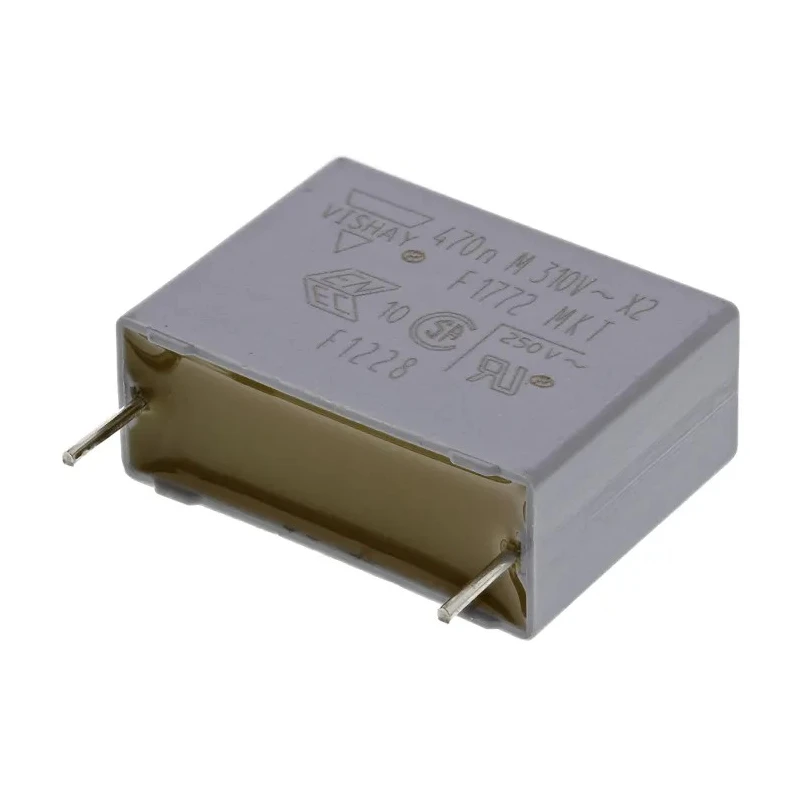

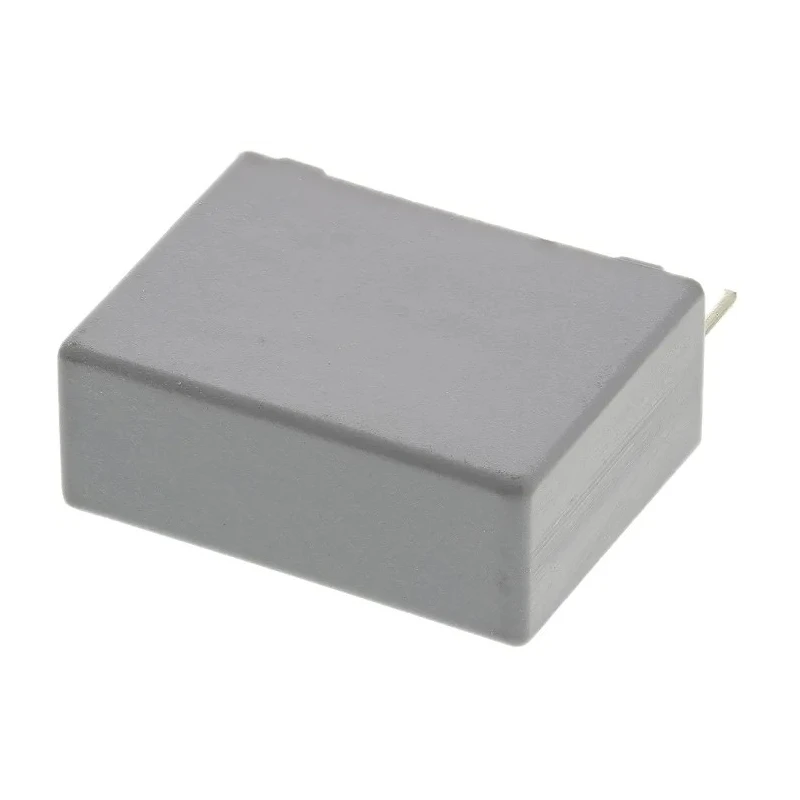

Vishay Film Capacitor 470 nF 310V AC 310V DC Through Hole F17724472260
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 18.3mm |
| Length | 26.3mm |
| Model | F17724472260 |
| Width | 10.3mm |
| Mount Type | Through Hole |
| Series | F1772 |
| Maximum Operating Temperature | 110°C |
| Capacitance | 470nF |
| Rated AC Voltage | 310V ac |
| Rated DC Voltage | 310V dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | X2 |
Key Features
- Constructed as a metallised film capacitor for high durability and stability.
- Designed for interference suppression between phases or phase-to-neutral connections.
- Features epoxy resin-sealed, flame-retardant case construction for enhanced safety.
- Complies with industry standards including UL 60384-14 and IEC 60384-14 ed-4.
- Supports automotive standard AEC-Q200, ensuring reliable operation in automotive environments.
- Maximum operating temperature up to 110°C for sustained performance.
- Lead pitch of 22.5 mm and lead diameter of 0.8 mm for easy PCB installation.
Product Description
Vishay F17724472260 is a film capacitor with a capacitance of 470 nF and dual rated voltage of 310V AC and 310V DC, featuring a Through Hole mount type. This capacitor is specifically designed for interference suppression applications, making it suitable for use in electrical and electronic circuits where noise reduction is critical.
The capacitor belongs to the F1772 series, renowned for its metallised film construction that ensures reliable electrical characteristics and durability. Its epoxy resin-sealed, flame-retardant case enhances safety by preventing fire hazards, especially in demanding industrial and automotive settings.
It complies with major international safety and quality standards including UL 60384-14, CSA E384-14, IEC 60065, and EN 60384-14, guaranteeing compliance for industrial, electrical, and electronic equipment.
The capacitor meets the automotive standard AEC-Q200, signifying its suitability and robustness for automotive electrical systems where high reliability and endurance are mandatory.

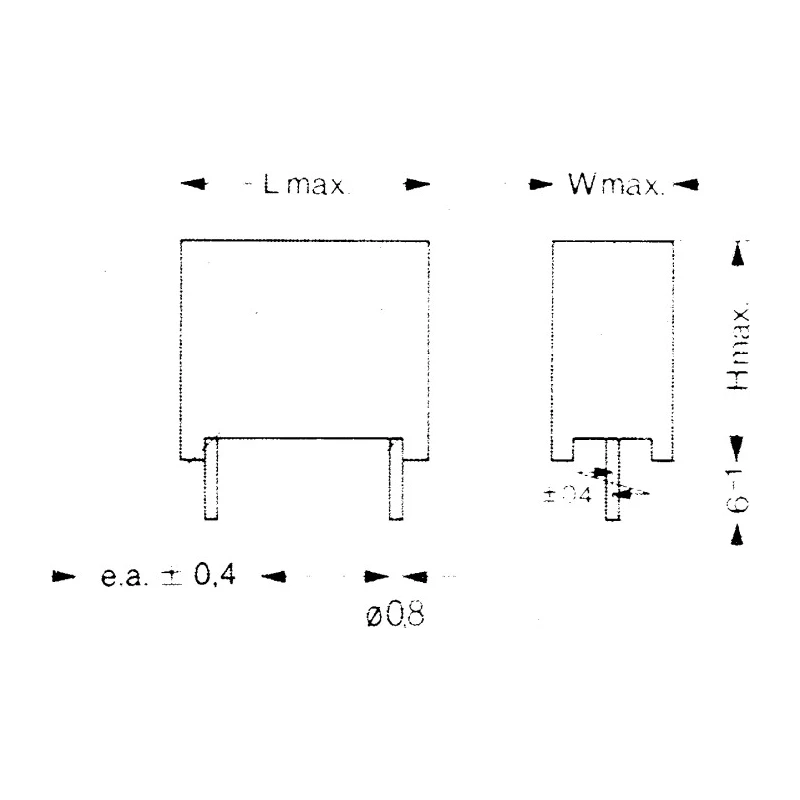

Physically, the capacitor has a compact design with a length of 26.3 mm, width of 10.3 mm, height of 18.3 mm, a lead pitch of 22.5 mm, and lead diameter of 0.8 mm which facilitates straightforward Through Hole PCB mounting.
Metallised film construction for stability and longevity. Flame-retardant epoxy resin sealing for enhanced safety. Conforms with UL, CSA, IEC, and EN safety standards. Automotive-grade AEC-Q200 qualification for durable automotive use.
Maximum operating temperature rating of 110°C. Lead pitch and diameter optimized for PCB assembly. Compact physical size suited for various circuits.
This Vishay film capacitor is ideal for use in electronic equipment, automotive systems, and industrial applications where suppression of electromagnetic interference and operational reliability are vital. It is commonly used in power supplies, signal filtering, and noise reduction circuits.
EnvMart offers comprehensive access to electronic components such as this Film Capacitor, supporting industrial, laboratory, manufacturing, and automotive sectors with verified quality and brand assurance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 470 nF.
It has a dual rated voltage of 310V AC and 310V DC.
The maximum operating temperature is rated at 110°C.
The lead pitch is 22.5 mm and the lead diameter is 0.8 mm, facilitating easy PCB installation.
This capacitor uses a Through Hole mount type for installation.
It complies with the automotive standard AEC-Q200, ensuring reliability in automotive applications.
The dimensions are 26.3 mm in length, 10.3 mm in width, and 18.3 mm in height.
It is constructed as a metallised film capacitor, which provides high durability and stability.
It features an epoxy resin-sealed, flame-retardant case to enhance safety and prevent fire hazards.
It is suitable for interference suppression in electrical and electronic circuits, making it ideal for power supplies and signal filtering.
It complies with UL 60384-14, CSA E384-14, IEC 60065, and EN 60384-14, ensuring safety and quality.
This capacitor belongs to the F1772 series, known for its reliable electrical characteristics.
