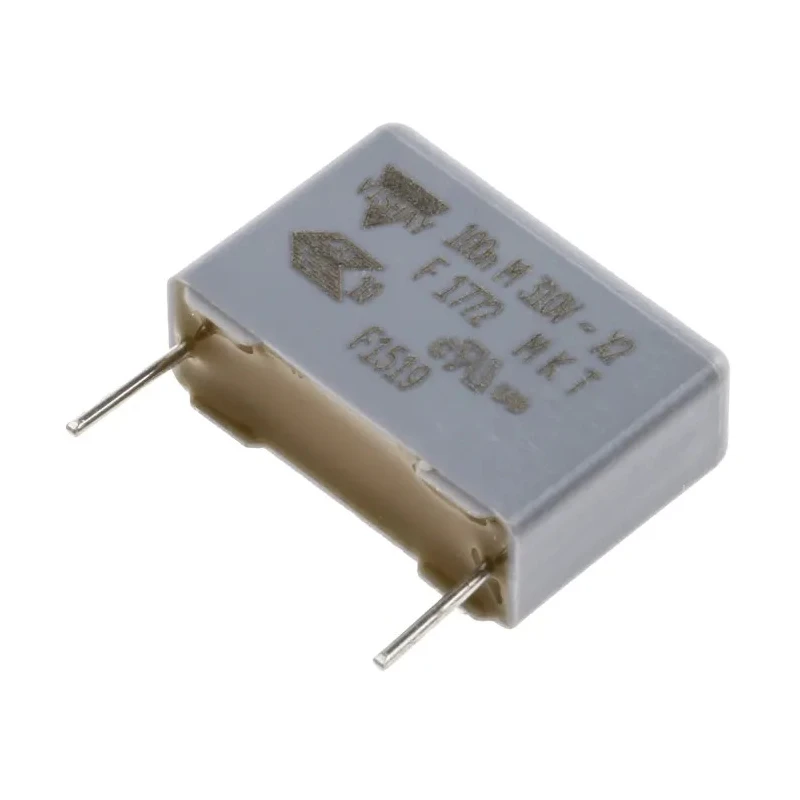

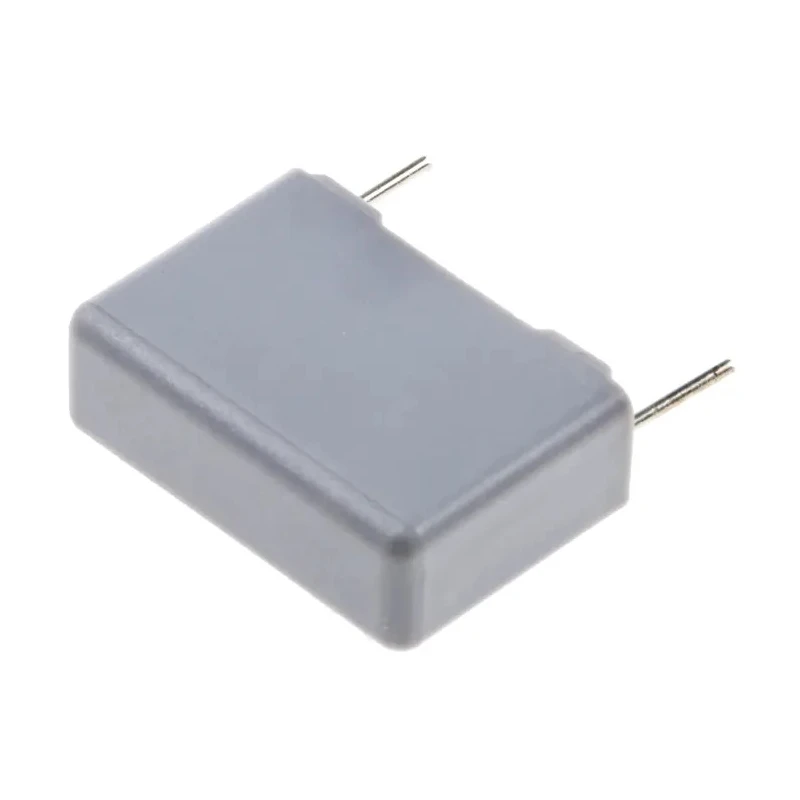

Vishay F1772 Film Capacitor 100nF 310V AC 310V DC Through Hole Mount F17724102200
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 12mm |
| Length | 17.9mm |
| Model | F17724102200 |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | F1772 |
| Maximum Operating Temperature | 110°C |
| Capacitance | 100nF |
| Rated AC Voltage | 310V ac |
| Rated DC Voltage | 310V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | X2 |
| EPCOS Polyester Film Capacitor, 275V ac, ±20%, 100nF, Through HoleBrand | Epcos |
Key Features
- This capacitor belongs to the F1772 series known for X2 class interference suppression.
- It features a metallised film construction with epoxy resin sealed, flame-retardant case.
- Mount type is through hole with a 15mm lead pitch and 0.8mm lead diameter.
- The capacitor complies with automotive standard AEC-Q200 and international safety standards including IEC 60384-14.
- Operating temperature can reach up to 110 degrees Celsius.
- Physical dimensions measure 17.9mm in length, 12mm in height, and 6mm in width.
- Suitable for interference suppression installation between phases or phase and neutral in electrical circuits.
Product Description
Vishay F17724102200 film capacitor is a 100nF capacitance component rated for 310V AC and 310V DC operation, specifically designed for through hole mounting applications. It is part of the F1772 series, offering reliable performance as an X2 class interference suppression capacitor. These metallised film capacitors come with an epoxy resin-sealed, flame-retardant case ensuring high safety and durability in various industrial and electronic environments.
The product complies with well-recognized standards such as IEC 60384-14 ed-4, EN 60384-14, UL 60384-14, IEC 60065, and CSA E384-14, and meets automotive standard AEC-Q200, making it suitable for demanding automotive and industrial applications.

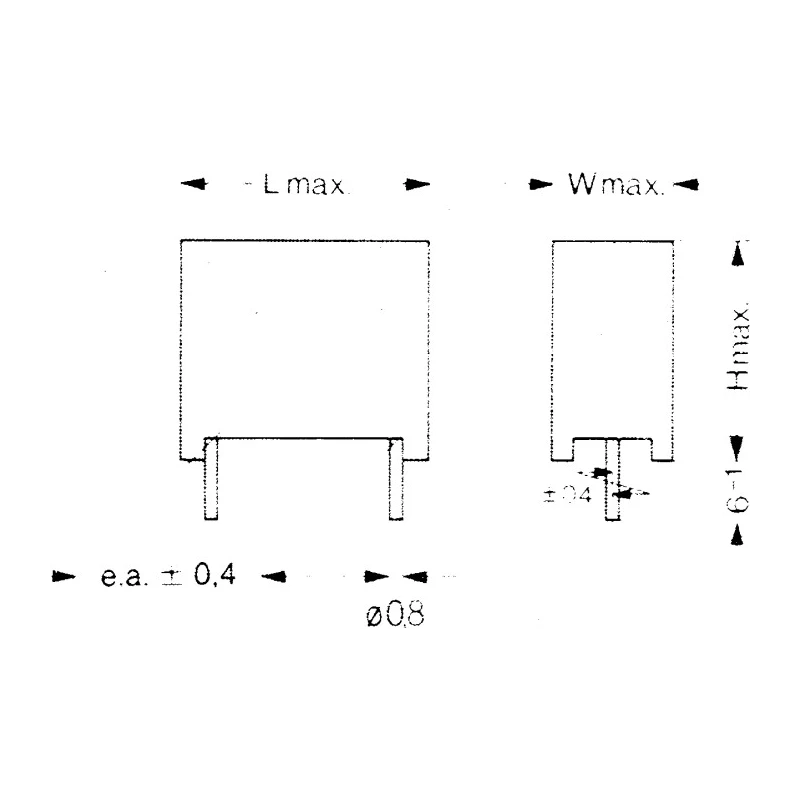

Key features include a lead pitch of 15mm and a lead diameter of 0.8mm, facilitating through hole mounting on printed circuit boards. The capacitor's compact size with 17.9mm length, 12mm height, and 6mm width allows integration in space-constrained assemblies.
Operating temperature range up to 110°C enables this capacitor to function reliably under elevated thermal conditions. It is ideally used for interference suppression installation between phases or between phase and neutral lines to reduce electrical noise and improve system stability.
This capacitor is built to withstand harsh conditions and complies with multiple national and international safety approvals. Its flame-retardant properties enhance safety in industrial power and electronic equipment. The metallised film design ensures long-term stability and performance.
Widely used in industrial, automotive, power supply, and electronic component applications. Epoxy resin sealing protects against environmental influence and mechanical damage.
Overall, the Vishay F17724102200 Film Capacitor is a robust component suitable for interference suppression with high reliability and compliance for industrial and automotive use. Browse more high-quality capacitors and electronic components at EnvMart for your industrial and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 100nF.
It is rated for 310V AC and 310V DC operation.
The maximum operating temperature can reach up to 110°C.
The dimensions are 17.9mm in length, 12mm in height, and 6mm in width.
This model is designed for through hole mounting.
The lead pitch is 15mm and the lead diameter is 0.8mm.
It complies with automotive standard AEC-Q200 and international safety standards including IEC 60384-14.
This capacitor is classified as X2 for interference suppression.
It is suitable for interference suppression installation between phases or phase and neutral in electrical circuits.
It features a metallised film construction with an epoxy resin sealed, flame-retardant case.
The country of origin for this capacitor is India.
This model belongs to the F1772 series.
