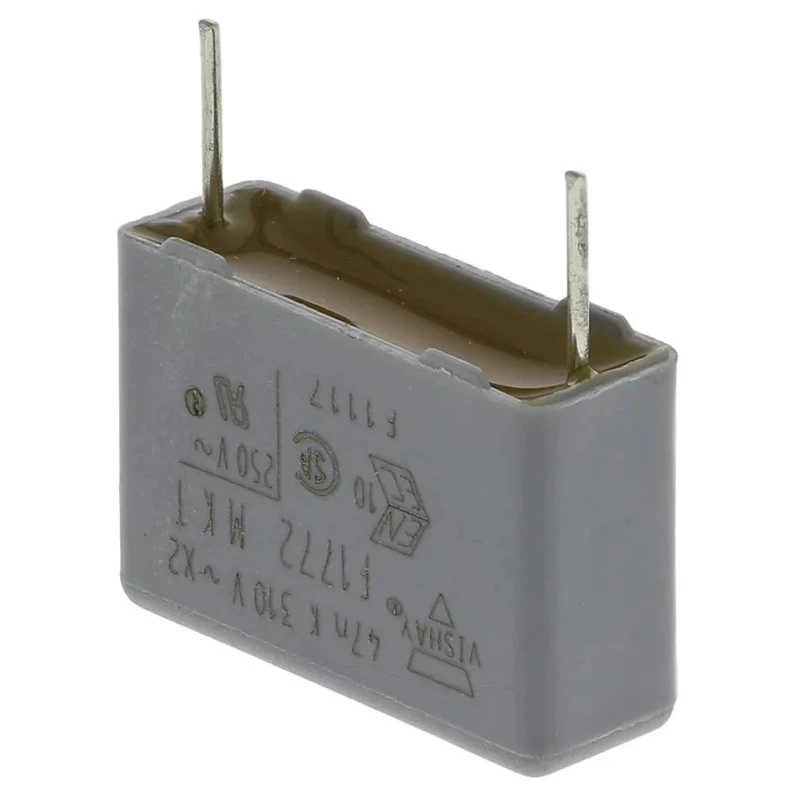

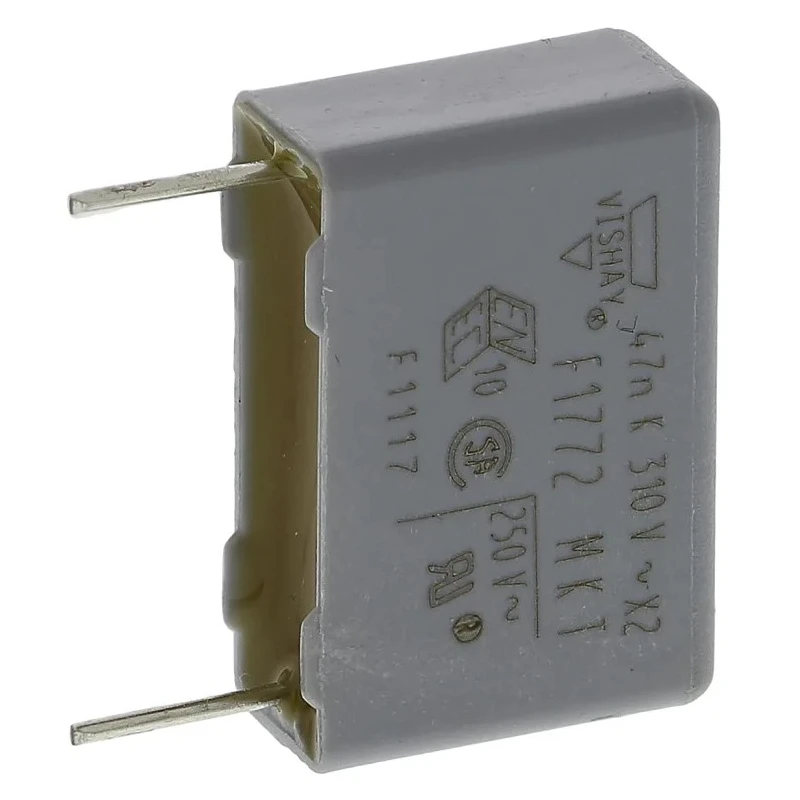

Vishay F1772 Film Capacitor 47 nF 310V AC 310 V DC Through Hole Mount F17723472000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 12.3mm |
| Length | 17.8mm |
| Model | F17723472000 |
| Width | 6.3mm |
| Mount Type | Through Hole |
| Series | F1772 |
| Maximum Operating Temperature | 110°C |
| Capacitance | 47nF |
| Rated AC Voltage | 310V ac |
| Rated DC Voltage | 310V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | X2 |
| KEMET PME271 Paper Capacitor X2 275V ac 275 V dc, Through HoleBrand | KEMET |
Key Features
- This capacitor belongs to the F1772 series designed for interference suppression.
- It features a metallised film construction with epoxy resin-sealed, flame-retardant casing.
- Rated maximum operating temperature of 110°C ensures suitability for demanding environments.
- Compliant with automotive standard AEC-Q200 ensuring reliability in automotive electronics.
- Lead pitch measures 15 mm, facilitating through hole PCB mounting.

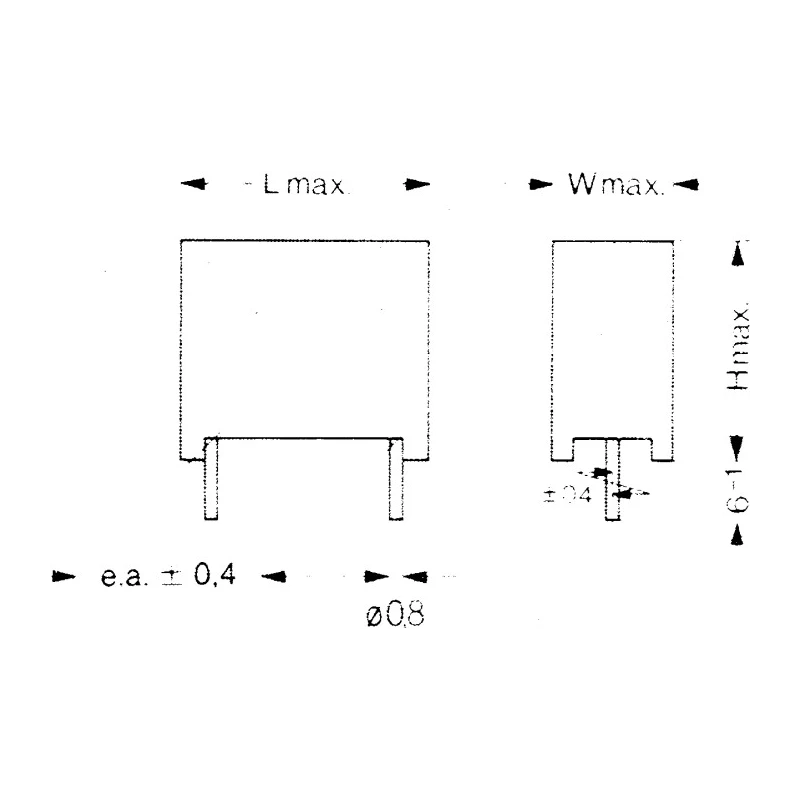

- Capacitor dimensions include length 17.8 mm, width 6.3 mm, height 12.3 mm, and lead diameter 0.8 mm.
- Safety standards met include CSA E384-14, UL 60384-14, IEC 60384-14 ed-4, and EN 60384-14.
- Class X2 suppression type supports usage in interference-prone applications between phase or phase-neutral.
Product Description
Vishay F17723472000 film capacitor is a precision metallised film capacitor with a capacitance of 47 nF and rated for 310V AC and 310 V DC. Designed for through hole mounting, it features an epoxy resin-sealed flame-retardant case.
This capacitor is part of the F1772 series, engineered to provide reliable interference suppression between electrical phases or between phase and neutral conductors. It conforms to the stringent automotive standard AEC-Q200, underscoring its reliability in automotive electronic systems.
The maximum operating temperature rating of 110°C allows the capacitor to perform optimally in industrial and electrical applications exposed to elevated temperatures. Compact dimensions - length 17.8 mm, width 6.3 mm, height 12.3 mm - with a lead pitch of 15 mm ensure compatibility with standard PCB layouts.
Manufactured with adherence to multiple safety and quality standards including CSA E384-14, UL 60384-14, IEC 60384-14 ed-4, and EN 60384-14, this capacitor meets essential industry requirements for electrical and electronic components.
This capacitor is classified under suppression class X2, suitable for interference suppression in power supplies and electrical devices. The epoxy resin-sealed flame-retardant case ensures enhanced safety and durability in electrical installations.
Lead diameter of 0.8 mm facilitates easy through hole mounting and robust electrical contact. Its metallised film construction provides long-term stability and excellent electrical performance. An ideal choice for industrial automation, HVAC, automotive electronics, and power management applications.
Explore the extensive range of Vishay Film Capacitors for reliable and efficient electrical performance in various industrial and automotive applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay F1772 film capacitor has a capacitance of 47 nF.
It is rated for 310V AC and 310V DC.
The maximum operating temperature is 110°C.
The lead pitch measures 15 mm, facilitating through hole PCB mounting.
The dimensions are 17.8 mm in length, 6.3 mm in width, and 12.3 mm in height.
The lead diameter is 0.8 mm, which aids in through hole mounting.
It complies with the automotive standard AEC-Q200, ensuring reliability in automotive electronics.
This capacitor is classified under suppression class X2, suitable for interference suppression applications.
It meets multiple safety standards including CSA E384-14, UL 60384-14, IEC 60384-14 ed-4, and EN 60384-14.
It supports through hole mounting, making it compatible with standard PCB layouts.
It features a metallised film construction with an epoxy resin-sealed, flame-retardant casing.
It is suitable for industrial automation, HVAC, automotive electronics, and power management applications.
