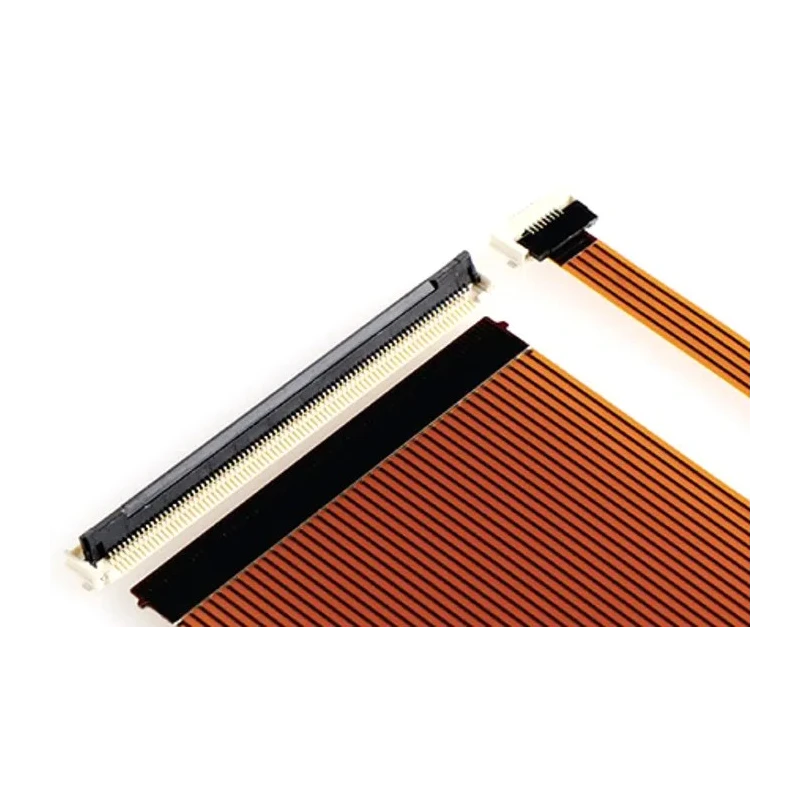

Molex 0.5 mm Pitch 6 Way Right Angle Male Easy-On FPC Connector, Solder, Phosphor Bronze Contacts, Gold Plated 505110-0692

Molex 505110-0692 is a 0.5 mm pitch, 6 way right angle male Easy-On FPC connector designed specifically for surface mounting on PCBs. It features phosphor bronze contacts with a gold over nickel plating that ensure a clean, reliable mating interface and excellent electrical performance.

This connector supports a maximum current of 500mA and voltage of 50V, making it suitable for low power electronic devices and circuits. Its compact low-profile design includes a mating height of just 1.9 mm, optimized for space-constrained applications.

The double bottom contact design offers two lower contacts per circuit, effectively removing dust and contaminants to maintain high contact reliability and signal integrity. The zero insertion force (ZIF) feature allows easy cable insertion and enhances repeatability with minimal wear on cable and terminals.

Security and stability of connection are improved by a cable ear-tab locking mechanism which aligns the cable properly and applies high retention force. The connector housing is constructed from durable liquid crystal polymer, providing mechanical resistance and operating temperature tolerance from -40°C to 105°C.

Solder tabs enable secure retention to the PCB and provide strain relief for solder joints, increasing connector longevity. Additionally, the top housing features a vacuum pick and place area, facilitating automated and cost-effective board assembly.

This connector series is ideal for applications requiring compact packaging such as automotive displays, audio and car navigation systems, consumer electronics including flat panel TVs, portable gaming devices, and personal navigation equipment. It is also widely used in data-communication devices like optical disk drives, notebooks, printers, and copiers.

Set includes 1 Pc Molex 0.5 mm pitch 6 way right angle male Easy-On FPC Connector with solder termination. Features 6 phosphor bronze contacts with high reliability. Compact right angle design with low profile for tight packaging.

Zero insertion force for easy cable mating and cycling. Cable ear-tab locking ensures secure cable retention and alignment. Durable liquid crystal polymer housing withstands harsh environments. Solder termination and tabs guarantee strong PCB connection and strain relief.
