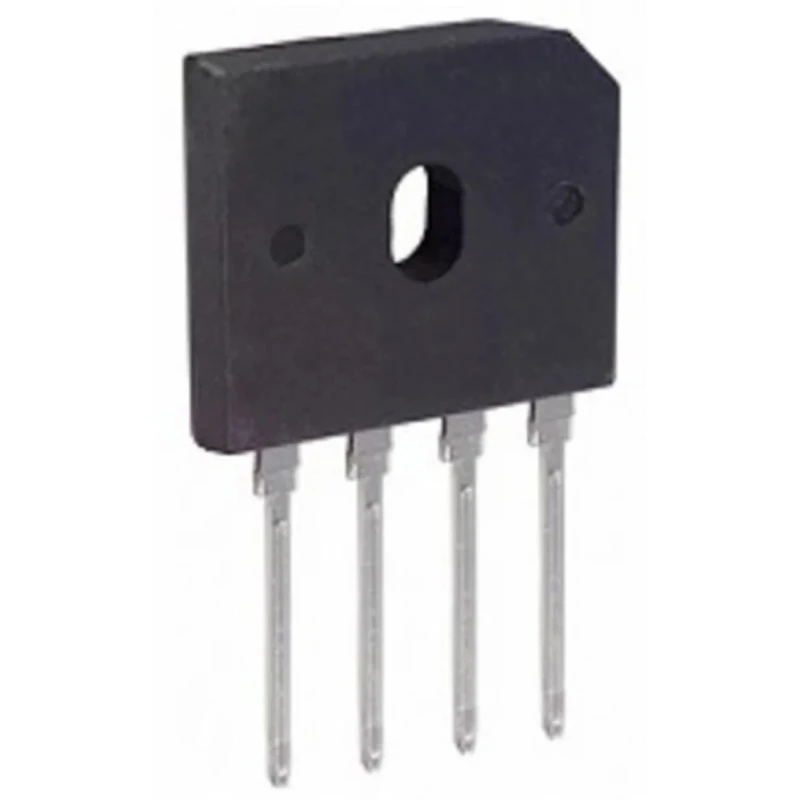

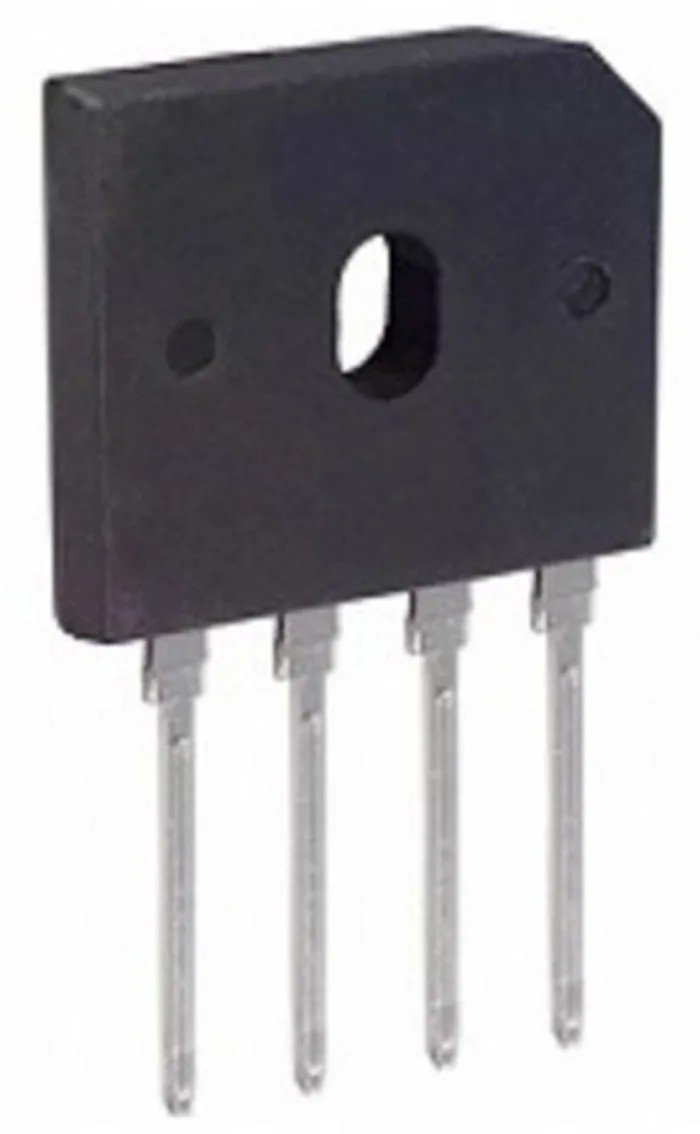

HY Electronic Corp Bridge Rectifier, 1000 V Peak Reverse Repetitive Voltage, 175 A Peak Non-Repetitive Forward Surge GBU610

HY Electronic Corp GBU610 Bridge Rectifier is a reliable electronic component designed to convert alternating current (AC) into direct current (DC) with a peak reverse repetitive voltage rating of 1000 V and capable of handling a peak non-repetitive forward surge current of 175 A. This 4-pin single configuration device is mounted using through-hole technology within a GBU package, allowing flexible PCB placement.

The rectifier supports a continuous forward current of 6 A and is engineered to operate effectively within temperature ranges from -55°C to 150°C, making it suitable for various industrial and electronic applications requiring robust power rectification.

Key physical dimensions of the device include a height of 18.8 mm, length of 22.3 mm, and a width of 3.56 mm, optimized for space-conscious circuit designs. The device does not follow automotive standards but adheres to the GBU6 series performance characteristics, and its plastic housing has a UL classification, ensuring durability and safety.

This bridge rectifier is built to withstand surge overload currents corresponding to different current ratings, for example, a 6 A device like the GBU610 manages surges up to 175 A peak. Such specifications make it suitable for power supply units, industrial automation systems, HVAC controls, and other electronic manufacturing environments.

Operates up to a maximum temperature of 150°C ensuring durability in demanding conditions. Designed for stable forward current of 6 A for consistent rectification. Through-hole mounting supports secure PCB integration. Dimensions support compact electronic assemblies.

Effective in single-phase electrical systems with a 4-pin configuration. Fabricated in China maintaining quality manufacturing standards. Surge overload capabilities accommodate transient overloads effectively.

This product aligns with semiconductor applications in industrial electronics and power conversion, providing dependable performance in circuits where rectification is critical. The GBU610 bridge rectifier is an essential component for engineers and designers focused on robust circuit solutions.
