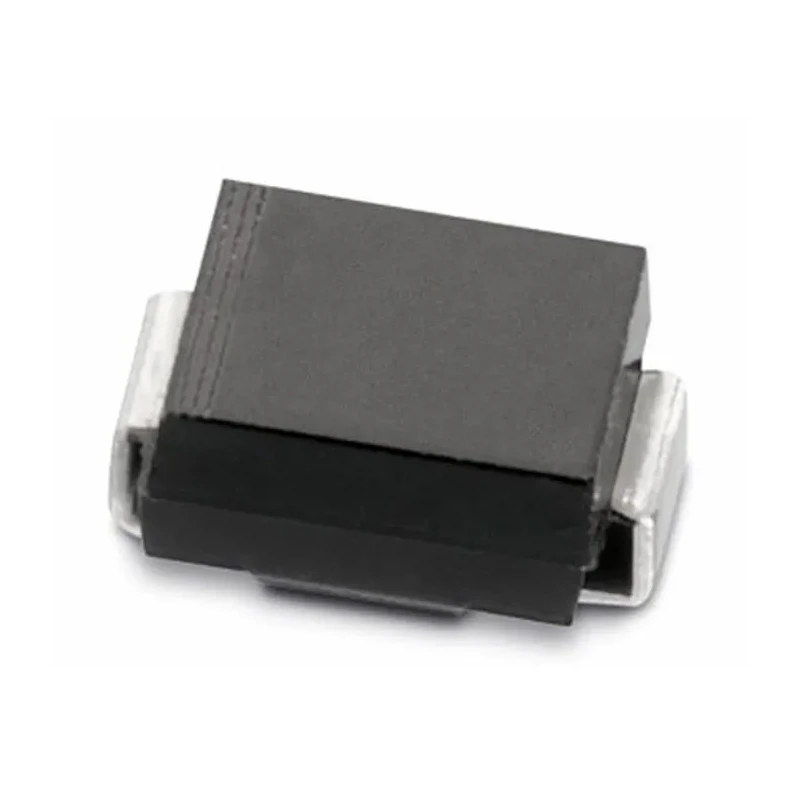

Wurth Elektronik 1-Element Bi-Directional TVS Diode 600 W, 2-Pin DO-214 824521361

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 1-Element Bi-Directional TVS Diode 600 W, 2-Pin DO-214 824521361

Name: Wurth Elektronik 1-Element Bi-Directional TVS Diode 600 W, 2-Pin DO-214 824521361
Brand: Wurth Elektronik
SKU: 136806
Price: 0.34 USD
Availability: InStock



Category TVS Diode Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	2.3mm
Length	4.32mm
Width	3.62mm
Mount Type	Surface
Series	WE-TVSP
Maximum Operating Temperature	150°C
Package Type	DO-214
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	58.1V
Diode Configuration	Single
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	42.1V
Peak Pulse Power Dissipation Pppm	600W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	10.4A
Maximum Reverse Leakage Current	1μA

Key Features

Single diode configuration with bi-directional voltage suppression.
Minimum breakdown voltage of 42.1 V and clamping voltage of 58.1 V.
Operates over a temperature range from -65°C to 150°C.
Maximum peak pulse current rated at 10.4 A for transient voltage protection.
Compact low profile package dimensions optimized for efficient PCB layouts.
Glass passivated junction technology for reliable performance and fast response time.
Maximum reverse leakage current of 1 μA ensures minimal power loss.
Package type DO-214 with pin count of 2 for easy integration in electronic circuits.

Product Description

Wurth Elektronik 824521361 is a 1-element bi-directional transient voltage suppression (TVS) diode designed for protecting sensitive electronic components against voltage spikes. This 600 W rated component employs a glass passivated junction allowing ultra-fast response to transient over-voltages in demanding electrical and electronic circuits.

Featuring a single diode configuration with bi-directional voltage suppression, it effectively clamps voltage surges with a minimum breakdown voltage (Vbr) of 42.1 V and tightly controls the clamping voltage at 58.1 V to protect downstream components. Test current is 1 mA, and the device can safely dissipate pulse powers up to 600 W, supporting transient peak currents of up to 10.4 A.

The device is housed in a compact surface-mount DO-214 package with dimensions height 2.3 mm, length 4.32 mm, and width 3.62 mm, making it ideal for high-density circuit board designs. Its operational temperature range from -65°C to 150°C ensures reliability in harsh environmental conditions. The maximum reverse leakage current of 1 μA minimizes power consumption during normal operation.

This Wurth Elektronik TVS diode series WE-TVSP is engineered for applications including industrial electronics, power supply protection, telecommunications, and automotive electronics where transient voltage suppression is critical.

Single diode, bi-directional protection for sensitive circuits. Peak pulse power capability of 600 W ensures robust protection. Compact surface mount DO-214 package supports efficient PCB integration. Glass passivated junction enables fast response time to voltage transients.

Wide operating temperature range from -65°C to 150°C. Low maximum reverse leakage current of 1 μA conserves energy. Designed for use in industrial, telecom, automotive, and power electronics. Manufactured in China with no specific certifications detailed.

This product is widely used in electronic circuit protection to clamp transient voltage spikes from inductive switching, electrostatic discharge (ESD), lightning surges, and other transient events that can damage sensitive electronic components.
