4D Systems Gen4 Diablo16 4.3 in Resistive Touch Screen Raspberry Pi Display SK-gen4-43DT-PI

Free Delivery in India | Lowest Global Shipping Charges

4D Systems Gen4 Diablo16 4.3 in Resistive Touch Screen Raspberry Pi Display SK-gen4-43DT-PI

Name: 4D Systems Gen4 Diablo16 4.3 in Resistive Touch Screen Raspberry Pi Display SK-gen4-43DT-PI
Brand: 4D Systems
SKU: 183218
Price: 227.1 USD
Availability: InStock



Category Display Module Brand 4D Systems Condition New

Specifications

Country of Origin	China
Brand	4D Systems
Storage Temperature	-30°C to +70°C
Display Size	4.3
Model	SK-gen4-43DT-PI
Connector	30 way FPC
Display Resolution	480 x 272
Controller	Diablo16
Display Technology	Resistive Touch Screen
Operating Ambient Temperature	-15°C to +65°C
Standards/Approvals	RoHS
Kit Name	Gen4 Diablo16
Diagonal Display Size	4.3in
Module Dimensions (mm)	127.6 x 69.3 x 7.9 mm
Gen4 Integrated Display Module	gen4-uLCD-43DT Display with resistive touch
Gen4 Interface Module	gen4-IB
Display Brightness	∼460 nits
Display Viewing Area (mm)	95.04 x 53.86 mm
Gen4 Programming adapter	gen4-PA
150 mm FFC Cable	5-way female-to-female ribbon cable with male-to-male adapter
Backlight LEDs	2 x 5
Touch	Resistive

Key Features

The display has a diagonal size of 4.3 inches with a resolution of 480 x 272 pixels.
The module features a brightness of approximately 460 nits and uses 2 x 5 backlight LEDs.
The resistive touch screen allows precise user interaction and control.

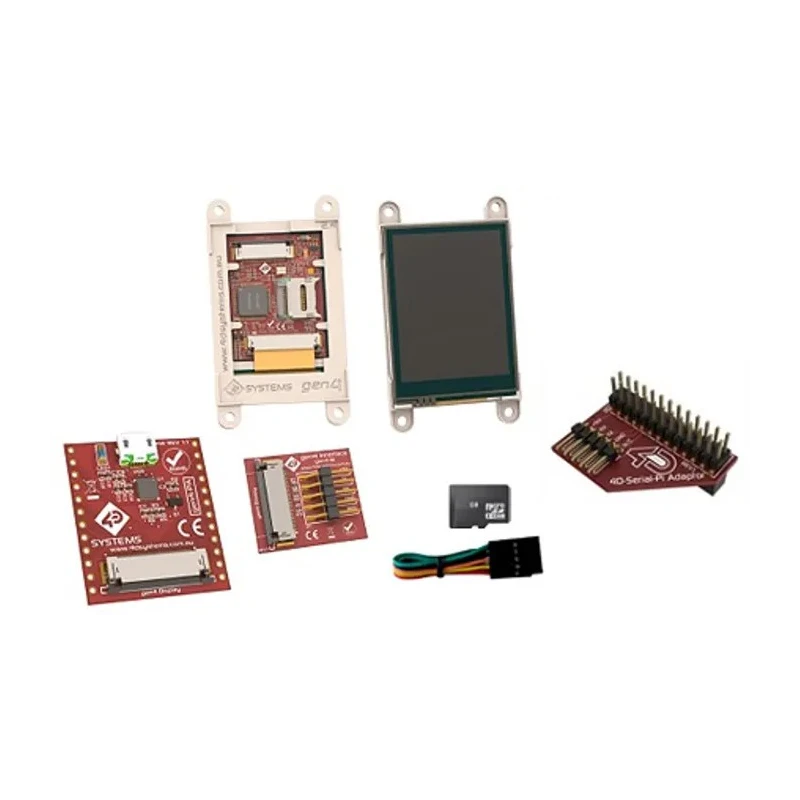

Includes Gen4 Integrated Display Module, Gen4 Interface Module, programming adapter, serial Pi adapter, micro SD card and FFC cable.
Operates within ambient temperatures from -15°C to +65°C and stores safely between -30°C to +70°C.
Compact module dimensions are 127.6 x 69.3 x 7.9 mm, with a viewing area of 95.04 x 53.86 mm.
The 30 way FPC connector supports easy and reliable connectivity.
Suited for Raspberry Pi development, STEM education, embedded systems and IoT projects.

Product Description

4D Systems SK-gen4-43DT-PI is a high-quality 4.3 inch resistive touch screen display module designed specifically for Raspberry Pi integration. Equipped with the advanced Diablo16 graphics controller, this module provides sharp 480 x 272 pixel resolution and a bright display with approximately 460 nits of luminance supported by dual 2 x 5 backlight LEDs.

This Gen4 Diablo16 starter kit includes a complete set of accessories such as the Gen4 Integrated Display Module (gen4-uLCD-43DT), Gen4 Interface Module (gen4-IB), Gen4 programming adapter (gen4-PA), 4 GB micro SD card, a 150 mm flexible flat cable with adapters, and the 4D Serial Pi adapter, offering comprehensive connectivity and programming options.

The resistive touch technology provides precise finger or stylus input, suitable for human-machine interface applications in embedded development, education, and industrial controls. The module measures a compact 127.6 mm length, 69.3 mm width, and 7.9 mm thickness, with a usable viewing area of approximately 95.04 x 53.86 mm.

Operating ambient temperature ranges from -15°C up to +65°C with a storage range from -30°C to +70°C, ensuring reliability in diverse environmental conditions.

This display supports multiple programming environments including Designer, ViSi, ViSi-Genie, and Serial modes, enabling developers to leverage image-based or serial configurations for custom applications. The micro SD card facilitates data logging, embedding multimedia content, and firmware updates.

Ideal use cases include Raspberry Pi projects, embedded system development, STEM education, interface prototyping, IoT device displays, and industrial automation user interfaces. The display offers high visibility with a bright 460 nits and resistive touch functionality.

Includes comprehensive accessory kit for ease of integration and development. Compact form factor and wide operating temperature range ensure adaptability. Supports multiple programming environments for flexible application development.

Robust 30 way FPC connector provides secure electrical connections. Explore 4D Systems products and Raspberry Pi display accessories in the EnvMart catalog for advanced embedded display solutions.
