4D Systems gen4 7 in Arduino Compatible Resistive Touch Screen Display Module 800 x 480 pixel GEN4

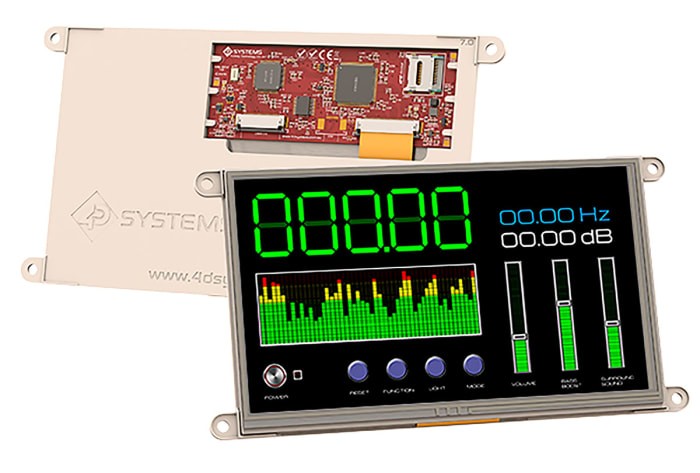

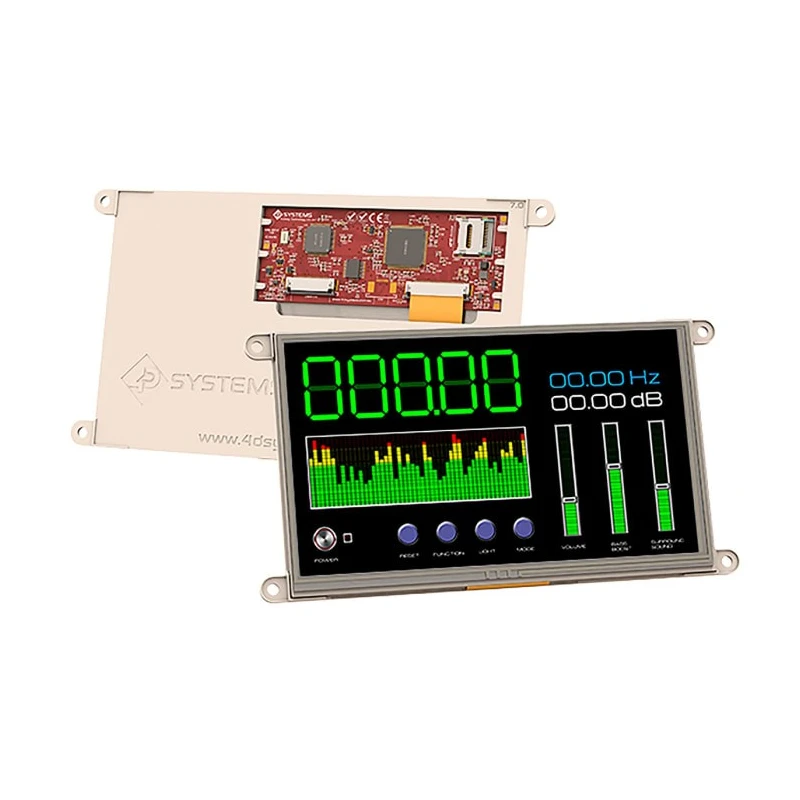

4D Systems GEN4 Arduino Compatible Display GEN4 model features a 7.0 inch diagonal resistive touch screen TFT LCD with an 800 x 480 pixel resolution designed for human-machine interface applications. It offers true-to-life 65k RGB colours within a compact form factor measuring 187 x 102.1 x 8.3 mm including mounting tabs.

The display module integrates a 30-pin ZIF connector enabling straightforward communication, power supply, and programming connections, eliminating wiring complexities. A dedicated Arduino adaptor shield is included to facilitate seamless connection and programming with Arduino boards (not included).

Powered by the 4D Systems Diablo16 embedded controller, this module supports built-in graphics, text, image, and animation capabilities, making it ideal for embedded systems, industrial automation, and educational development projects.

Additional functional features include six banks of 32KB flash memory for user applications, 32KB RAM, multiple configurable GPIO channels offering digital, analog, PWM, and encoder inputs, as well as SPI and I2C communication interfaces. This makes it versatile for various embedded applications.

The module has an onboard micro-SD card connector to provide multimedia storage and data logging functionalities. It supports voltage operation from 4.0 V to 5.5 V and is fully compatible with the Workshop4 IDE, allowing developers to choose from multiple development environments.

This product is fully RoHS and REACH compliant and carries CE certification, affirming its compliance with environmental and safety standards.

Typical applications include embedded systems development, automation controls, data visualization, consumer electronics, and educational projects requiring reliable and compact touchscreen display interfaces.

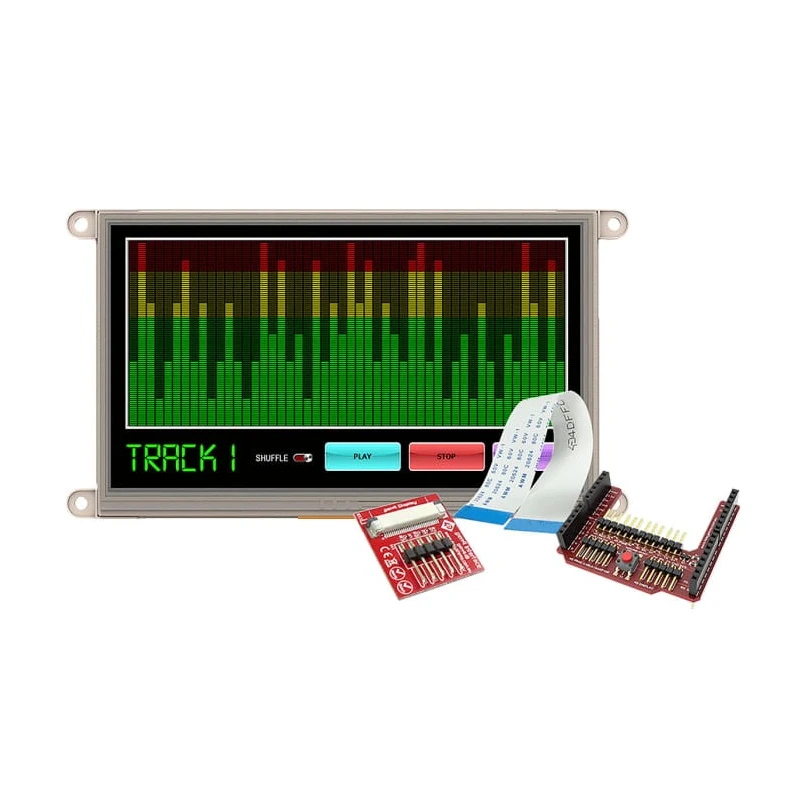

Kit contents include one 7.0 gen4-uLCD-70DT LCD Display Module, one gen4-IB interface board, one 150mm FFC cable, and one 4D Arduino adaptor shield. Arduino board is not included.

Browse other electronic components and Arduino compatible displays at EnvMart for comprehensive embedded solutions. Features 4-wire resistive touch interface for human-machine interaction. Compact dimensions of 187 x 102.1 x 8.3 mm including mounting tabs.

Integrated 30-pin FPC connector for easy connectivity and power. Equipped with an Arduino adaptor shield for quick programming interface. Includes micro-SD card slot for multimedia storage and data logging capabilities. Powered by Diablo16 processor enabling advanced graphics and animation.

Operates on 4.0 V to 5.5 V supply voltage. Compatible with all standard Windows fonts supported by Workshop4 IDE. Suitable for embedded applications requiring compact displays with touch control. RoHS and REACH compliant, CE certified for quality assurance.
