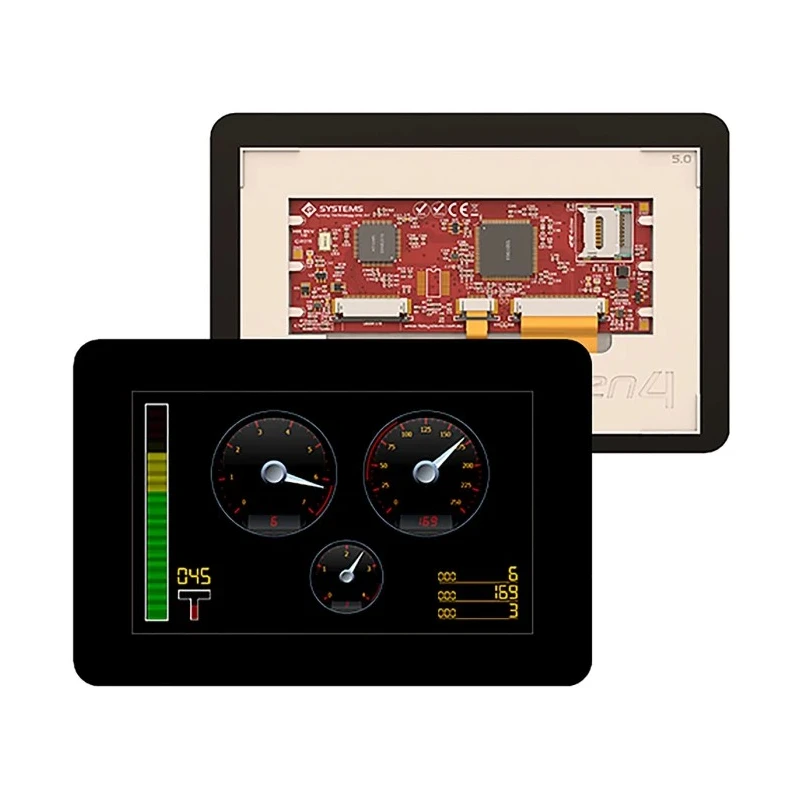

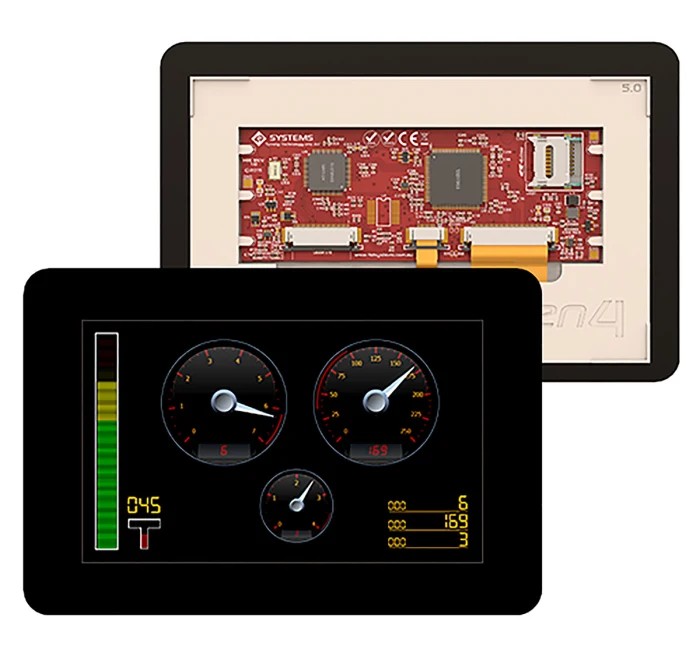

4D Systems gen4 5 in Arduino Compatible Capacitive Touch Screen Display Module gen4

Free Delivery in India | Lowest Global Shipping Charges

4D Systems gen4 5 in Arduino Compatible Capacitive Touch Screen Display Module gen4

Name: 4D Systems gen4 5 in Arduino Compatible Capacitive Touch Screen Display Module gen4
Brand: 4D Systems
SKU: 142963
Price: 229.73 USD
Availability: InStock



Category Display Module Brand 4D Systems Condition New

Specifications

Country of Origin	China
Brand	4D Systems
Model	gen4
Series	gen4
Display Resolution	800 x 480 pixel
Display Technology	Capacitive Touch Screen
External Dimensions	140.7 x 93.8 x 8.2 mm
For Use With	Arduino
Viewing Area Dimensions	108 x 64.8 mm
Diagonal Display Size	5in

Key Features

Compact 5 inch display featuring advanced capacitive touch technology.
Resolution of 800 by 480 pixels delivering vivid and sharp images.
Includes Arduino shield for easy connectivity and programming.
Features a micro-SD card slot for multimedia storage and data logging.
Operates between 4.0 V and 5.5 V power supply voltages.
Boasts 16 GPIO pins with multiple configurable output options including PWM and analogue outputs.
Built around the Diablo16 embedded controller for graphics and animation capabilities.
Robust module dimensions of 140.7 x 93.8 x 8.2 mm for flexible integration.

Product Description

4D Systems gen4 Arduino Compatible Display Module features a 5 inch capacitive touch screen providing 800 x 480 pixel resolution ideal for human-machine interface applications. The module integrates a Diablo16 touch LCD with an Arduino adaptor shield enabling quick and easy connection to Arduino boards for programming and development.

This display module is compact and designed for seamless integration with dimensions of 140.7 x 93.8 x 8.2 mm. The module includes a 30-pin ZIF socket to simplify wiring and the attached interface board and 150 mm FFC cable facilitate straightforward installation. Additionally, it has a micro-SD card connector supporting multimedia storage and data logging functions, expanding its use in data-centric projects.

Power supply range is 4.0 V to 5.5 V ensuring compatibility with standard Arduino voltage levels. The embedded Diablo16 processor enhances functionality by supporting graphics, text, images, and animations while providing 16 GPIO ports, some configurable for PWM, pulse output, quadrature encoder inputs, and analog output, making it suitable for varied control applications.

This module complies with CE standards and is RoHS and REACH compliant, endorsing its safety and environmental friendliness. It is an optimal choice for embedded system developers working on Arduino projects requiring a high-quality display interface.

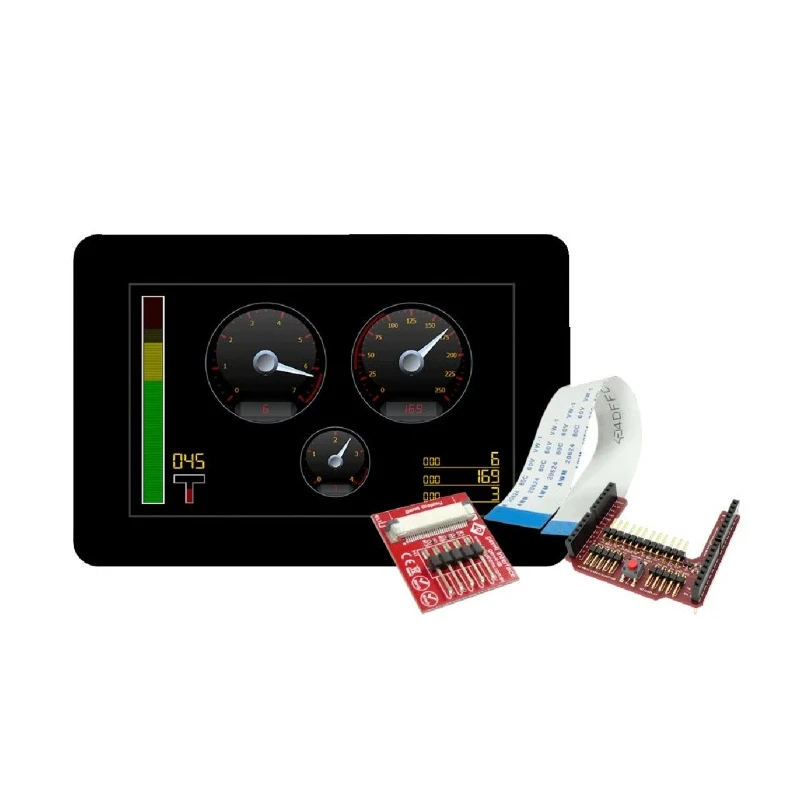

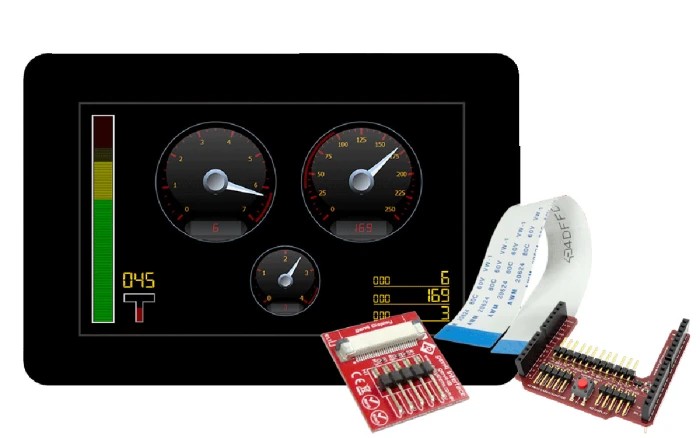

The kit contents include one 5 inch gen4-uLCD-50DCT-CLB LCD Display Module, one gen4-IB interface board, one 150 mm FFC cable, and one 4D Arduino adaptor shield. Note that the Arduino board itself is not included.

Compact 5 inch capacitive touch screen with high resolution. Powerful embedded Diablo16 processor for graphics and interface control. Multiple I/O including GPIO, PWM, and analog outputs for versatile application. Micro-SD slot for expanded data storage and logging.

Complete kit simplifies integration and prototyping.

This display is ideal for use in industrial automation, educational projects, embedded system development, and prototyping where Arduino compatibility and high resolution touch display are essential. Explore more display solutions suitable for Arduino projects in the Electronics & Electricals category on EnvMart.
