4D Systems 2.8 inch Resistive Touch Screen LCD Display Module for Raspberry Pi SK-gen4-28DT-PI

Free Delivery in India | Lowest Global Shipping Charges

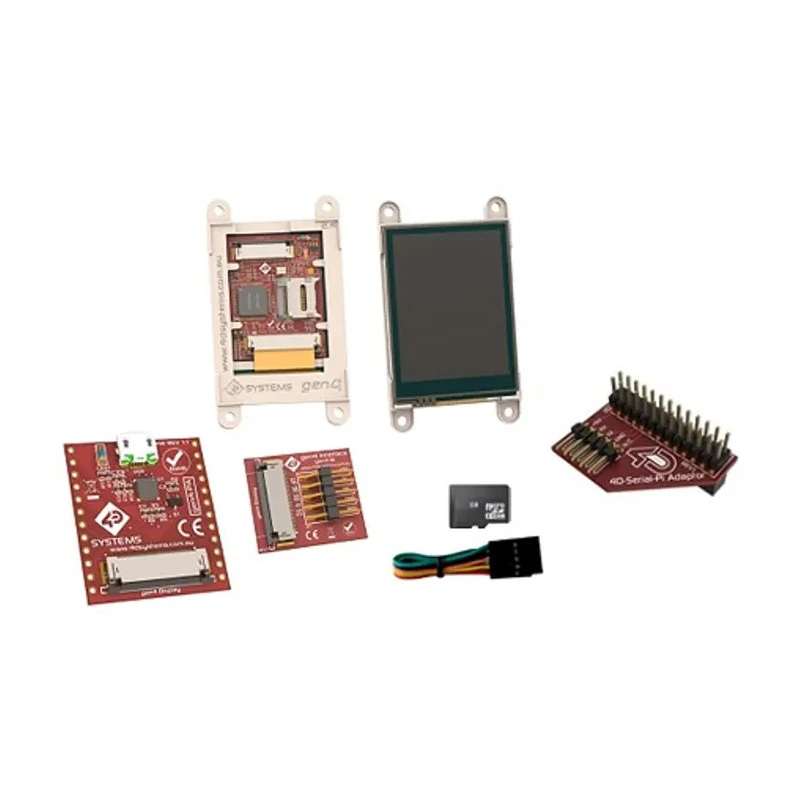

4D Systems 2.8 inch Resistive Touch Screen LCD Display Module for Raspberry Pi SK-gen4-28DT-PI

Name: 4D Systems 2.8 inch Resistive Touch Screen LCD Display Module for Raspberry Pi SK-gen4-28DT-PI
Brand: 4D Systems
SKU: 183216
Price: 180.51 USD
Availability: InStock



Category Display Module Brand 4D Systems Condition New

Specifications

Country of Origin	China
Brand	4D Systems
Storage Temperature	-30°C to +70°C
Display Size	2.8
Model	SK-gen4-28DT-PI
Connector	30 way FPC
Display Resolution	240 x 320
Controller	Diablo16
Display Technology	Resistive Touch Screen
Operating Ambient Temperature	-15°C to +65°C
Standards/Approvals	RoHS
Kit Name	Gen4 Diablo16
Diagonal Display Size	71.12mm
Module Dimensions (mm)	87.3 x 52.1 x 7.4 mm
Gen4 Integrated Display Module	gen4-uLCD-28DT Display with resistive touch
Gen4 Interface Module	gen4-IB
Display Brightness	∼220 nits
Display Viewing Area (mm)	57.6 x 43.2 mm
Gen4 Programming adapter	gen4-PA
150 mm FFC Cable	5-way female-to-female ribbon cable with male-to-male adapter
Backlight LEDs	1 x 4
Touch	Resistive

Key Features

Features a 240 x 320 resolution Diablo16 controller LCD display.
Includes a 4 GB micro-SD card for image, video, and sound storage.
Operates with ambient temperatures from -15°C to +65°C and storage from -30°C to +70°C.
Comes with accessories including gen4-PA programming adapter, gen4-IB interface module, serial Pi adapter, and a 150 mm FFC cable.
Integrated resistive touch screen technology with 57.6 x 43.2 mm active viewing area.
Compact module dimensions of 87.3 x 52.1 x 7.4 mm for easy integration.
Backlight provided by 1 x 4 LEDs ensuring brightness of approximately 220 nits.

Product Description

4D Systems SK-gen4-28DT-PI is a new 2.8 inch resistive touch screen LCD display module designed for use with Raspberry Pi systems. This integrated display module combines a Diablo16 controller with a high-contrast 240 x 320 pixel display, delivering clear visuals suitable for embedded applications in industrial, educational, and development environments.

The resistive touch technology allows user interaction via touch for versatile input options. Its compact module dimensions of 87.3 x 52.1 x 7.4 mm and a display viewing area of 57.6 x 43.2 mm enable easy integration into various Raspberry Pi projects requiring visual feedback and user control.

The module supports multiple programming and development environments including Designer, ViSi, ViSi-Genie, and Serial environments, facilitated by use of a 4 GB micro-SD card and programming cables such as the gen4-PA and gen4-IB adapters. Data logging and firmware updates are easily managed through these accessories.

Operating ambient temperature ranges from -15°C to +65°C, with storage capability from -30°C to +70°C, ensuring reliability in diverse conditions. The backlight system consists of 1 x 4 LEDs providing approximately 220 nits brightness, suitable for indoor use.

Includes gen4-uLCD-28DT Display with resistive touch. Equipped with gen4-IB interface and gen4-PA programming adapters. Supplied with 4D Serial Pi adapter for easy Raspberry Pi integration. Accessories include a 150 mm 5-way FFC female-to-female ribbon cable with male-to-male adapter.

This display module is ideal for STEM education, prototyping, Raspberry Pi embedded system development, and industrial control panels requiring touch screen interfaces. Its certified RoHS compliance ensures environmentally conscious design and manufacturing.
