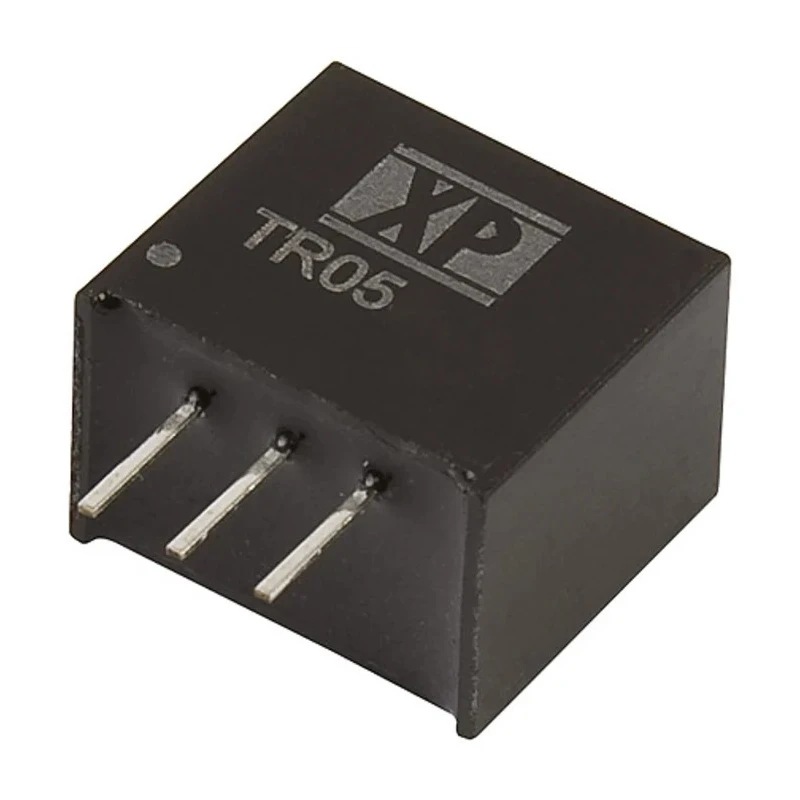

XP Power DC/DC Switching Regulator Through Hole 15V DC Output Voltage 28V DC Max Input 500mA Output TR05S15

Free Delivery in India | Lowest Global Shipping Charges

XP Power DC/DC Switching Regulator Through Hole 15V DC Output Voltage 28V DC Max Input 500mA Output TR05S15

Name: XP Power DC/DC Switching Regulator Through Hole 15V DC Output Voltage 28V DC Max Input 500mA Output TR05S15
Brand: XP Power
SKU: 189772
Price: 6.29 USD
Availability: InStock



Category Switching Regulators Brand XP Power Condition New

Specifications

Country of Origin	Taiwan
Brand	XP Power
Power	7.5W
Efficiency	94%
Length	11.68mm
Model	TR05S15
Depth	10.15mm
Gross Weight	1.8g
Width	7.5mm
Mount Type	Through Hole
Series	TR
Output Current	500mA
Maximum Operating Temperature	85°C
Package Type	SIP
Load Regulation	±0.8 %
Minimum Operating Temperature	-40°C
MTBF	4mH
Number of outputs	1
Ripple and Noise	60mV Pk-Pk
Maximum Input Voltage	28V dc
Line Regulation	±0.5 %
Standards/Approvals	RoHS
Minimum Input Voltage	17V
Output Voltage 1	15V dc

Key Features

Operates with an input voltage range of 17V to 28V DC.
Provides a stable output voltage of 15V DC at 500mA current.
Features high efficiency up to 94% to optimize power usage.
Equipped with continuous short-circuit protection for enhanced reliability.
Designed to operate in temperatures from -40°C to +85°C.
Utilizes an industry standard 3-pin SIP package for easy PCB mounting.
Low ripple and noise of 60mV peak-to-peak ensures clean power output.
Maintains line regulation within ±0.5% and load regulation within ±0.8%.

Product Description

XP Power TR05S15 DC/DC Switching Regulator is a high-efficiency power component designed for electronic applications requiring a regulated 15V DC output. This through-hole mounted switching regulator supports a maximum input voltage of 28V DC and output current capability of 500mA, making it suitable for a variety of industrial, laboratory, and commercial electronic systems.

Built with a 3-pin SIP package, this regulator features continuous short-circuit protection ensuring safe and reliable operation. Its efficiency rating of up to 94% helps reduce energy losses, which is critical in power-sensitive designs.

The regulator operates over a wide temperature range from -40°C to +85°C, allowing it to perform reliably in harsh environments including industrial automation, instrumentation, and embedded computing systems. It exhibits low ripple and noise characteristics of 60mV peak-to-peak, supporting sensitive electronic circuits.

Key electrical characteristics include line regulation of ±0.5% and load regulation of ±0.8%, ensuring stable voltage delivery despite fluctuations in load or input voltage. The device is pin compatible with standard LM78MXX regulators, facilitating easy upgrades or replacements.

With compact dimensions (length 11.68mm, width 7.5mm, depth 10.15mm) and a light gross weight of 1.8 grams, it is optimized for PCB space efficiency. Its RoHS compliance supports environmentally conscious manufacturing.

Operates between input voltages of 17V to 28V DC. Delivers 15V DC output voltage at up to 500mA current. High efficiency of up to 94% reduces power loss. Continuous short-circuit protection enhances durability. Wide operating temperature range from -40°C to 85°C.

Industry standard 3-pin SIP package for easy integration. Low ripple and noise of 60mV peak-to-peak. Line regulation ±0.5%, load regulation ±0.8% for voltage stability. Compact form factor with dimensions 11.68 x 7.5 x 10.15 mm.

Pin compatible with LM78MXX voltage regulators.

This XP Power DC/DC Switching Regulator is ideal for use in industrial electronics, power supplies, instrumentation, commercial electronics, and HVAC control systems. Explore similar high-quality Switching Regulators and power components in our extensive catalog at EnvMart.
