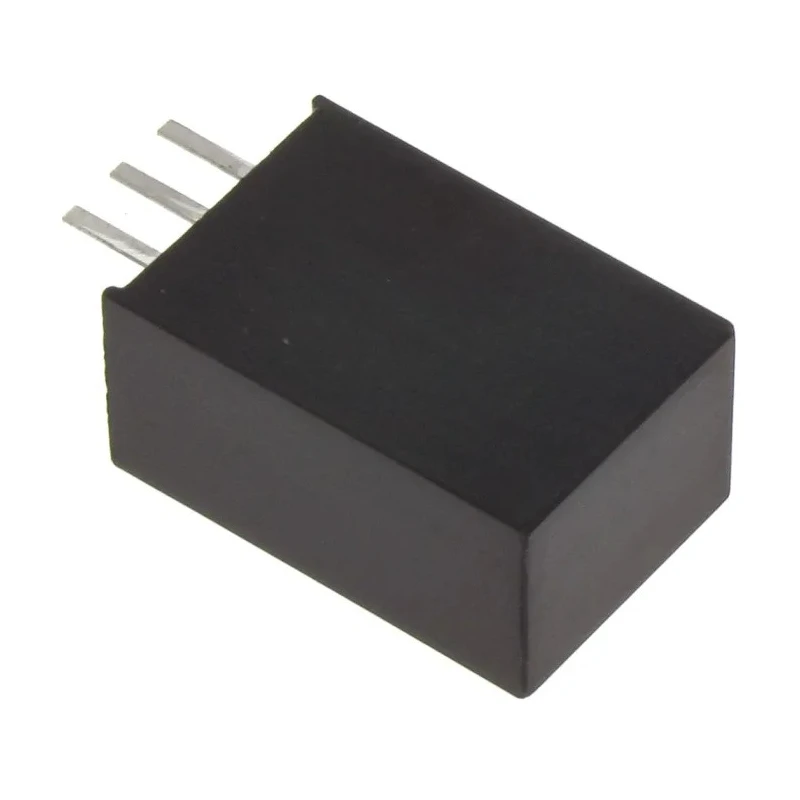

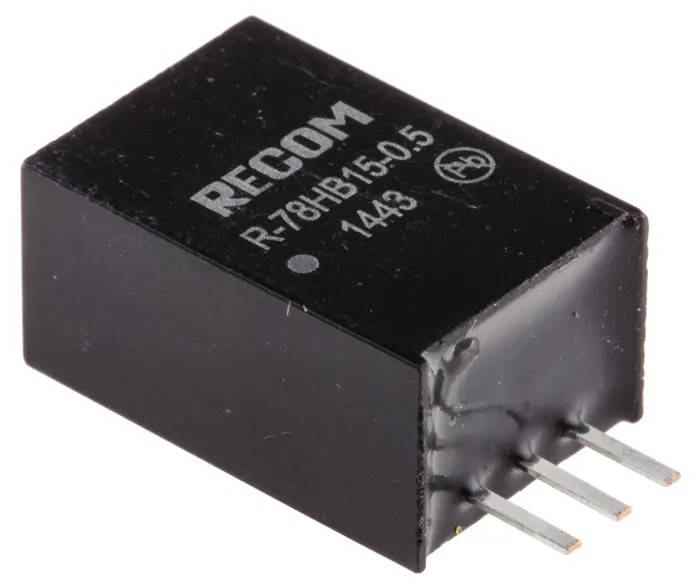

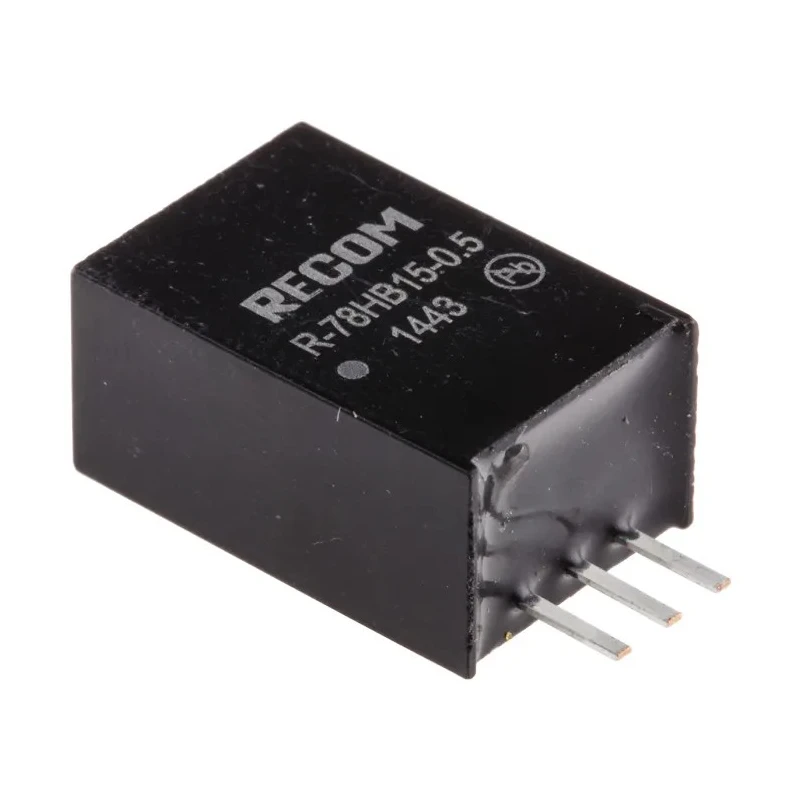

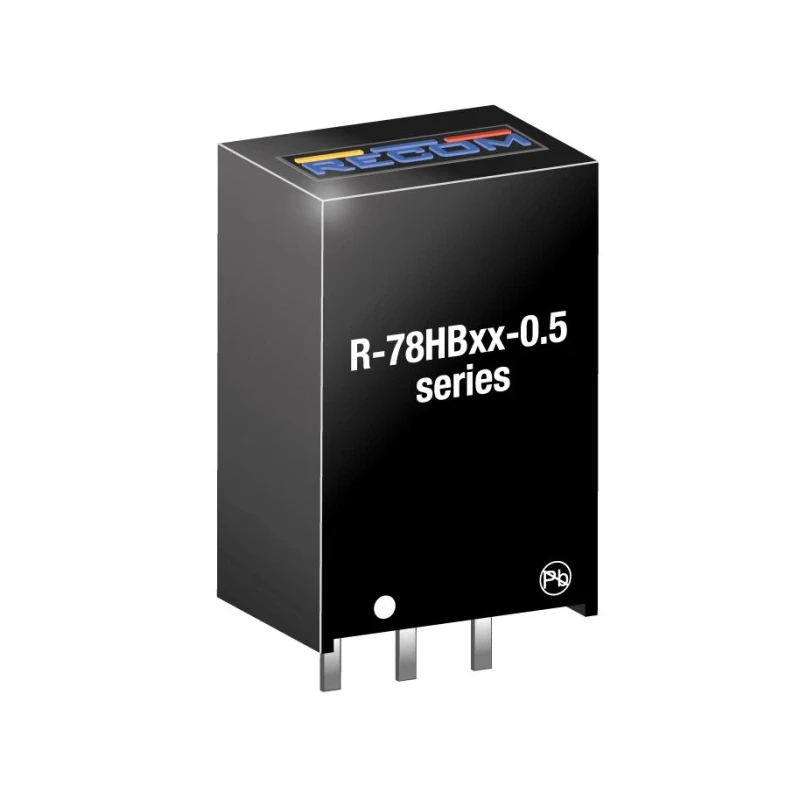

Recom Switching Regulator Through Hole 15V DC Output Voltage 72V DC Max Input Voltage 7.5W Power R-78HB15-0.5
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / Switching Regulators Recom Switching Regulator, Through Hole, 15V d |
| Brand | Recom |
| Power | 7.5W |
| Efficiency | 91% |
| Length | 11.5mm |
| Model | R-78HB15-0.5 |
| Depth | 17.5mm |
| Gross Weight | 4g |
| Width | 8.5mm |
| Mount Type | Through Hole |
| Series | R-78HB |
| Output Current | 500mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Load Regulation | ±0.6 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 7395000h |
| Number of outputs | 1 |
| Ripple and Noise | 20mV Pk-Pk |
| Maximum Input Voltage | 72V dc |
| Line Regulation | ±1 % |
| Standards/Approvals | REACH |
| Minimum Input Voltage | 20V |
| Output Voltage 1 | 15V dc |
Key Features
- High efficiency of 91% ensures minimal heat dissipation during operation.

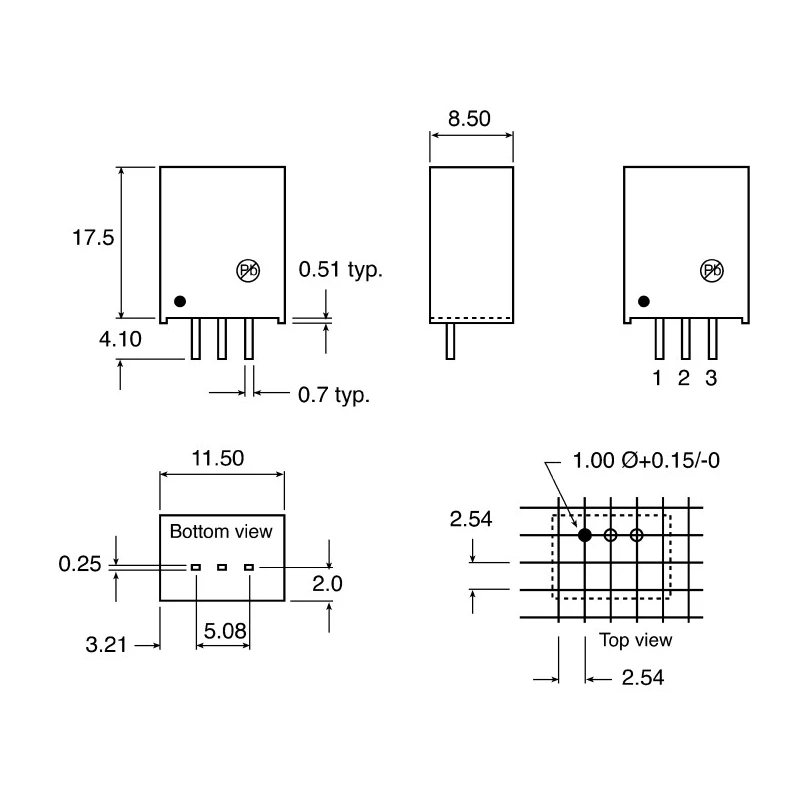

- Compact SIP package with dimensions 11.5mm length, 8.5mm width, and 17.5mm depth.
- Wide operating temperature range from -40°C to +85°C for harsh environments.
- Integrated short-circuit protection enhances device reliability and safety.
- Low ripple and noise of 20mV Pk-Pk for clean and stable output voltage.
- Line regulation of ±1% and load regulation of ±0.6% for precise voltage control.
- Mean Time Between Failures (MTBF) of 7,395,000 hours guarantees long-term durability.
- Through-hole mount type allows easy PCB integration.
Product Description
Recom R-78HB15-0.5 is a high-efficiency switching regulator designed for electronic components and power supply applications demanding stable 15V DC output voltage from input voltages ranging between 20V and 72V DC. It is packaged in a compact SIP form factor with through-hole mounting for easy and secure integration on printed circuit boards.
This regulator offers a power rating of 7.5W with a maximum output current of 500mA, suitable for consumer electronics, medical devices, aviation engineering, manufacturing machinery, and other industrial applications requiring reliable DC voltage regulation.
With efficiency rated at 91%, it reduces heat generation and eliminates the need for large heat sinks, saving space on crowded PCBs. The device also features integrated short-circuit protection to guard against overload conditions and irregular currents, enhancing system safety.
Operating temperature ranges from -40°C to 85°C, supporting demanding environmental conditions. It provides low ripple and noise (20mV peak-to-peak), ensuring clear and stable signal transmission, which is critical in sensitive electronic circuits.
The line regulation of ±1% and load regulation of ±0.6% guarantee precise voltage output stability under varying load and supply conditions. The product meets REACH regulations and originates from Taiwan, Province Of China.
High efficiency of 91% minimizes energy loss. Small SIP package saves PCB space with 11.5mm × 8.5mm × 17.5mm dimensions. Wide temperature tolerance supports industrial applications. Reliable long operational life confirmed by 7,395,000h MTBF.
Effective short-circuit protection included for safety. Low ripple and noise for clean output voltage. Precise voltage regulation with low line and load variation. Through-hole mounting for stable physical installation. Compatible replacement for LM78xx linear regulators.
This switching regulator is ideal for use in industrial electronics, power management systems, medical technology, aviation instrumentation, manufacturing automation, and other sectors requiring compact, efficient voltage conversion solutions. Enhance your designs by integrating the Recom R-78HB15-0.5 to achieve dependable, long-lasting voltage regulation in your electronic assemblies.
Explore more switching regulator products and voltage converters in EnvMart to find solutions tailored to your industrial and commercial applications.
Explore more products in our Switching Regulators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 15V DC.
The maximum input voltage for the R-78HB15-0.5 is 72V DC.
It has a power rating of 7.5W.
The efficiency of the R-78HB15-0.5 is rated at 91%.
The operating temperature range is from -40°C to 85°C.
This model has dimensions of 11.5mm in length, 8.5mm in width, and 17.5mm in depth.
The load regulation is ±0.6%.
It utilizes a through-hole mounting type for easy PCB integration.
The ripple and noise for the output voltage is 20mV peak-to-peak.
It features integrated short-circuit protection to enhance reliability and safety.
This switching regulator is suitable for consumer electronics, medical devices, aviation engineering, and manufacturing machinery.
