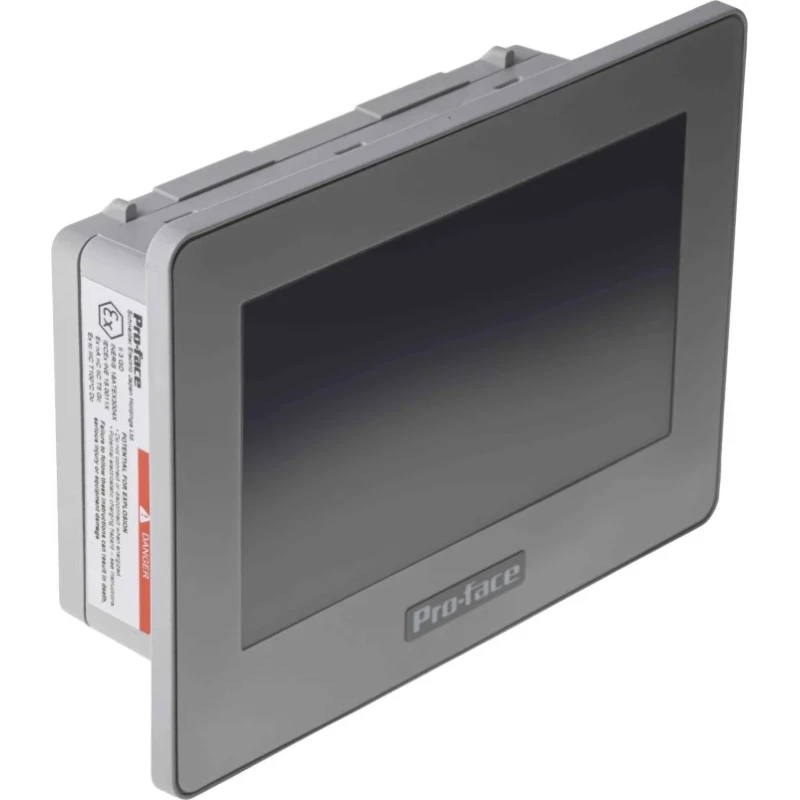

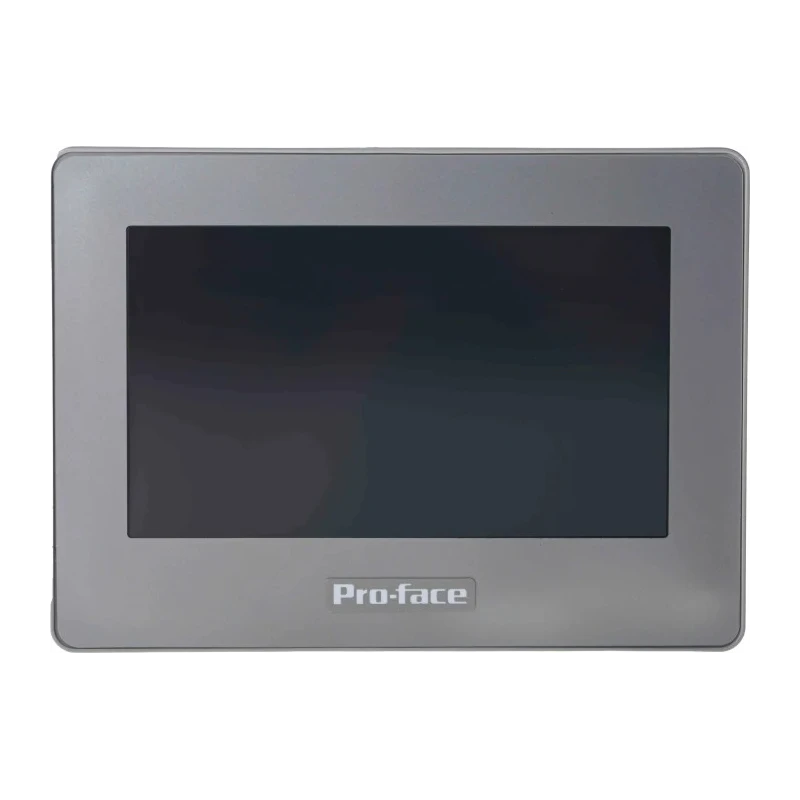

Pro-face GP4100 Series Touch Screen HMI with 4.3 in TFT LCD Display 480 x 272 pixel

Pro-face PFXGP4114T2D is a highly reliable Touch Screen Human Machine Interface (HMI) in the GP4100 Series, featuring a 4.3 inch TFT LCD display with a resolution of 480 x 272 pixels. Designed for industrial automation and control, it offers intuitive touch-based navigation for efficient process management in sectors such as manufacturing, bottling plants, logistics, and control devices.

The HMI's screen provides 16 selectable brightness levels to accommodate various ambient lighting conditions and boasts a backlight service life exceeding 50,000 hours, ensuring continuous operation with minimal maintenance. Its IP65F rating guarantees protection against dust ingress and low-pressure water jets, making it suitable for harsh industrial environments.

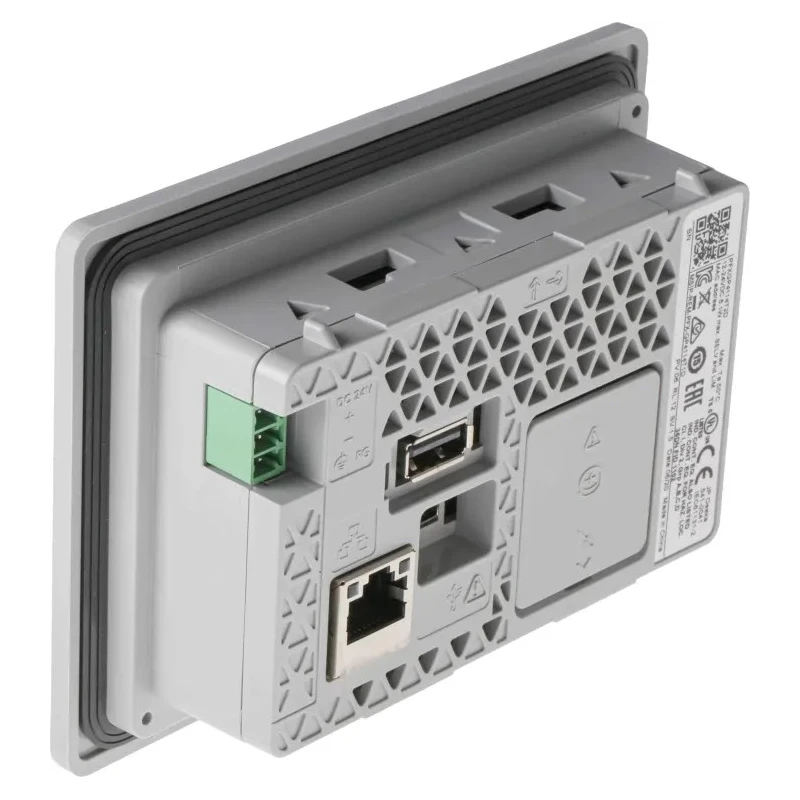

Equipped with three ports including a standard Ethernet port, the device facilitates seamless integration into existing network systems. It also supports USB-A and mini USB-B ports compatible with USB 2.0 peripherals for enhanced connectivity and control.

Operating between 12 to 24 V DC, the unit is efficient for low power consumption configurations. With an onboard memory capacity of 8MB, this HMI can run multiple complex logic programs concurrently, optimizing system management and automation tasks.

Compact and robust, the unit measures 124.9 mm in length, 38.8 mm in width, and 90.4 mm in depth, with an operational temperature range from 0°C to 50°C. It complies with international standards including cUL, CE, KC, UL, and EAC, ensuring safety and performance compliance in various markets.

The durable TFT LCD screen features 16 brightness levels for optimal visibility in various lighting conditions. Equipped with an Ethernet port and supports USB-A and mini USB-B for peripheral device connections. Backlight service life of at least 50,000 hours ensures long-lasting performance.

IP65F rating provides dust-tight and low-pressure water jet protection for reliable operation in harsh environments. Operates on 12 to 24 V DC input voltage suitable for low-power systems. Built-in 8MB onboard memory supports multiple complex logic programs simultaneously.

Compact dimensions with length 124.9 mm, width 38.8 mm, and depth 90.4 mm. Wide operating temperature range from 0°C up to 50°C, meeting industry cUL, CE, KC, UL, and EAC standards.

This Pro-face GP4100 Series Touch Screen HMI is ideal for use in industrial, manufacturing, logistics, bottling plants, and process control applications where reliable and user-friendly interface solutions are critical. Explore more automation and control gear products at EnvMart for comprehensive industrial system needs.
